DMC:V2500-A5-72-45-27-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72452701 | ENGINE-STAGE 2 HPT SUPPORT ASSEMBLY | aa | ||
| 010 | 2A1713 | • SUPPORT - HPT,2STG,ASSY OF | aa | 1 |
| 020 | 2A1270 | • • PIN - SHOULDER HEADLESS | aa | 19 |
| 022 | 2A1270CL1 | • • PIN - SHOULDER, HEADLESS | aa | 19 |
| 024 | 2A1270CL2 | • • PIN - SHOULDER, HEADLESS | aa | 19 |
| 026 | 2A1270CL3 | • • PIN - SHOULDER, HEADLESS | aa | 19 |
| 028 | 2A1270CL4 | • • PIN - SHOULDER, HEADLESS | aa | 19 |
| 030 | 2A1270P3 | • • PIN - SHOULDER, HEADLESS 77445 | aa | 19 |
| 032 | 2A1270P5 | • • PIN - SHOULDER, HEADLESS 77445 | aa | 19 |
| 040 | 4W2323 | • SCREW - .190 DIA X .438 Optional Part AS50907 | aa | 8 |
| 060 | 2A1715 | • SEAL - STAGE 2, HPT | aa | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

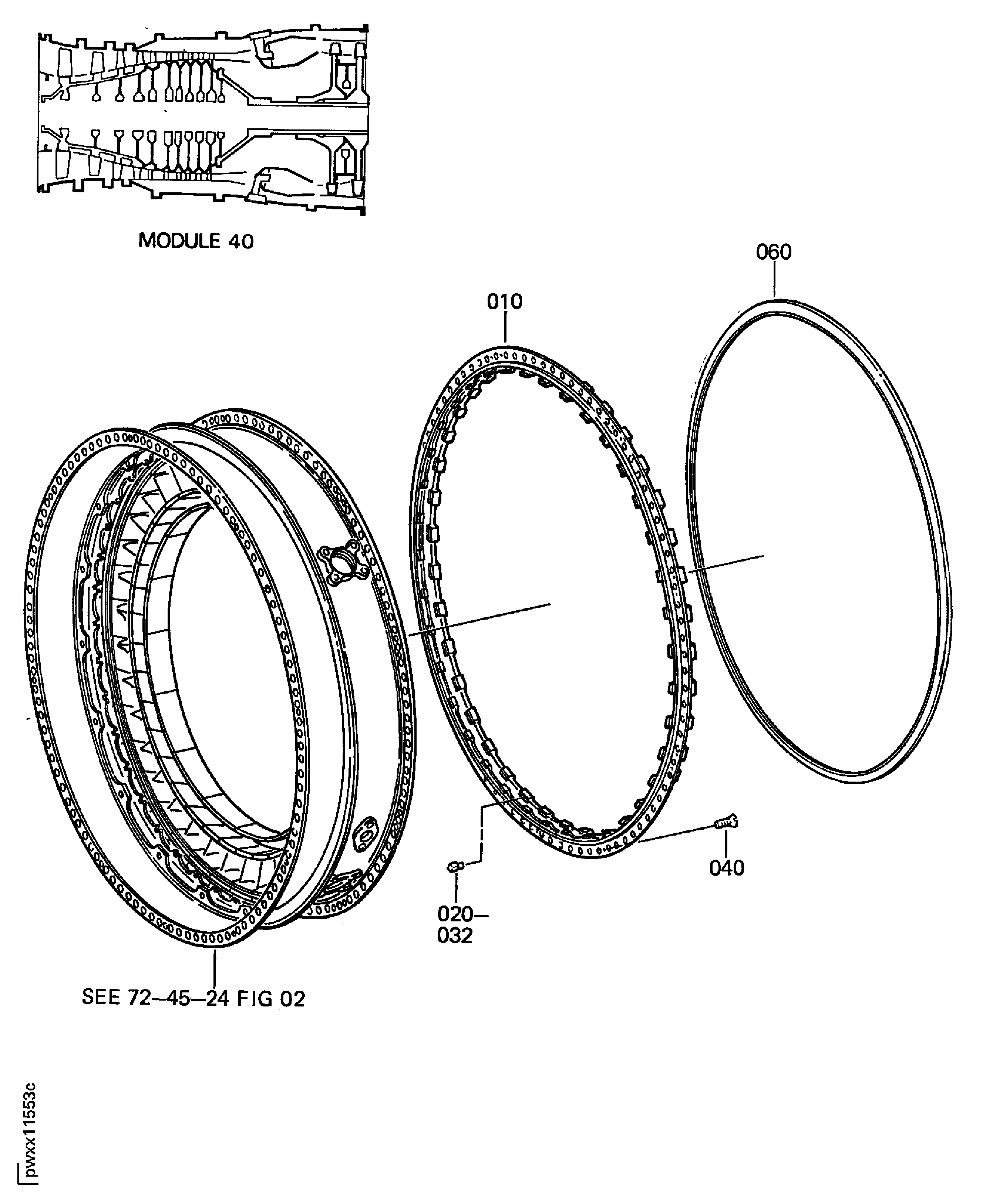

Figure: ENGINE-STAGE 2 HPT SUPPORT ASSEMBLY
STAGE 2 HPT SUPPORT ASSEMBLY
