HPT Stage 2 Rotor Assembly

DMC:V2500-A5-72-45-30-01A-941A-D|Issue No:002.00|Issue Date:2016-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A5

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
01
-000B72453001ENGINE-STAGE 2 TURBINE ROTOR ASSEMBLY, PRE SBE72-0145
aa
-000SBE0145-01ENGINE-STAGE 2 TURBINE ROTOR ASSEMBLY, PRE SBE72-0187
ab
-000SBE0187-01ENGINE-STAGE 2 TURBINE ROTOR ASSEMBLY, PRE SBE72-0302
ac
-000SBE0302-01ENGINE-STAGE 2 TURBINE ROTOR ASSEMBLY, PRE SBE72-0327
ad
-000SBE0327-01ENGINE-STAGE 2 TURBINE ROTOR ASSEMBLY, PRE SBE72-0399
ae
-000SBE0399-01ENGINE-STAGE 2 TURBINE ROTOR ASSEMBLY, PRE SBE72-0562
af
-000SBE0562-01ENGINE-STAGE 2 TURBINE ROTOR ASSEMBLY, PRE SBE72-0575
ag
-000SBE0575-01ENGINE-STAGE 2 TURBINE ROTOR ASSEMBLY
ah
-0100102A2522• TURBINE, ROTOR, STAGE 2, ASSEMBLY OF
PRE SBE72-0145
aa/011
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
-010010A2A2822• TURBINE, ROTOR, STAGE 2, ASSEMBLY OF
POST SBE72-0145
PRE SBE72-0187
ab/011
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
-010010B2A2622• TURBINE, ROTOR, STAGE 2, ASSEMBLY OF
PRE SBE72-0302
aa-ac/011
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
-010010C2A2622• TURBINE, ROTOR, STAGE 2, ASSEMBLY OF
POST SBE72-0187
PRE SBE72-0302
ac/011
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
-010010D2A2622• TURBINE, ROTOR, STAGE 2, ASSEMBLY OF
POST SBE72-0302
PRE SBE72-0327
ad/021
V2533 AQ02, V2533 AQ03
-010010E2A2622• TURBINE, ROTOR, STAGE 2, ASSEMBLY OF
POST SBE72-0327
PRE SBE72-0399
ae/031
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
-010010F2A2522-001• TURBINE, ROTOR, STAGE 2, ASSEMBLY OF
77445
POST SBE72-0399
PRE SBE72-0562
af/011
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
-010010G2A2822-001• TURBINE, ROTOR, STAGE 2, ASSEMBLY OF
77445
POST SBE72-0399
PRE SBE72-0562
af/011
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
-010010H2A4232• TURBINE, ROTOR, STAGE 2, ASSEMBLY OF
POST SBE72-0399
PRE SBE72-0562
af/041
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
-010010I2A4222• TURBINE, ROTOR, STAGE 2, ASSEMBLY OF
POST SBE72-0562
PRE SBE72-0562
PRE SBE72-0575
ag/041
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
-010010J2A4522-001• TURBINE ROTOR, HPT ASSY OF
POST SBE72-0562
ag-ah/041
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
-010010K2A4522• TURBINE ROTOR, HPT ASSY OF
POST SBE72-0562
POST SBE72-0575
ag-ah/041
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

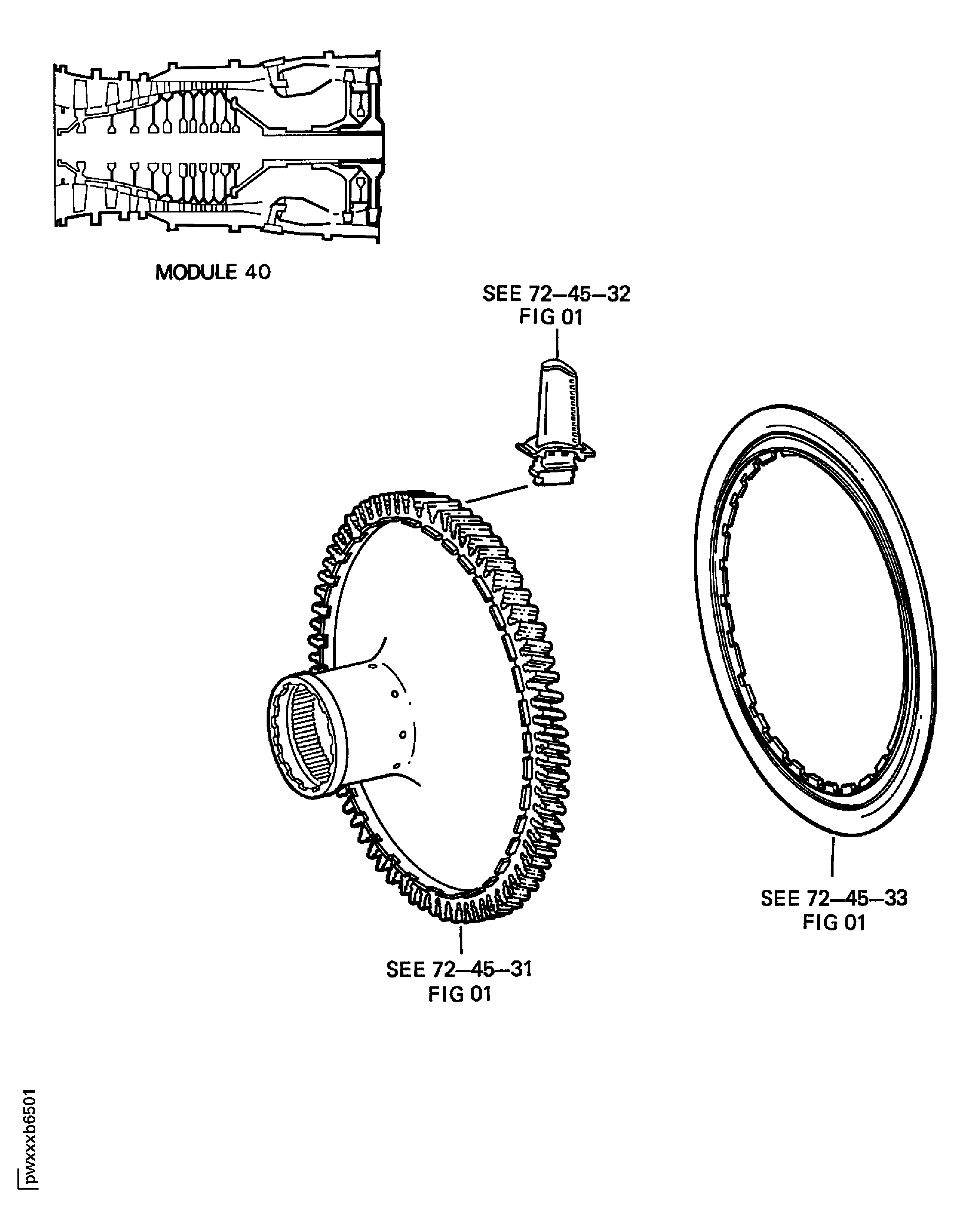

Figure: HPT Stage 2 Rotor Assembly

HPT Stage 2 Rotor Assembly

Change Type:

Incorporated SB 72-0562

Change Type:

Incorporated SB 72-0575

Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Link not Found
Part Number:2A2522
Part Name:TURBINE - ROTOR, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A2622
Part Name:TURBINE - ROTOR, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Link not Found
Part Number:2A2822
Part Name:TURBINE - ROTOR, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A4222
Part Name:TURBINE - ROTOR, STAGE 2, ASSEMBLY OF
Manufacturer Code:0AM53
Unit Of Issue:EA
Part Number:2A4232
Part Name:TURBINE - ROTOR, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A4522-001
Part Name:TURBINE ROTOR, HPT ASSY OF
Manufacturer Code:0AM53
Unit Of Issue:EA
Part Number:2A4522
Part Name:TURBINE ROTOR, HPT ASSY OF
Manufacturer Code:0AM53
Unit Of Issue:EA
