ENGINE-STAGE 2 TURBINE HUB

DMC:V2500-A5-72-45-31-01A-941A-D|Issue No:003.00|Issue Date:2021-02-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
01
-000B72453101ENGINE - STAGE 2 TURBINE HUB, PRE SBE72-0145
aa
-000SBE0145-01ENGINE - STAGE 2 TURBINE HUB, PRE SBE72-0327
ab
-000SBE0327-01ENGINE - STAGE 2 TURBINE HUB, PRE SBE72-0562
ac
-000SBE0562-01ENGINE - STAGE 2 TURBINE HUB
ad
0110112A2302• HUB - TURBINE, 2ND STAGE, ASSEMBLY OF
PRE SBE72-0145
aa/011
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
011011A2A3002• HUB - TURBINE, 2ND STAGE, ASSEMBLY OF
POST SBE72-0145
ab-ad/021
V2522/V2524/V2527M AQ02, V2527/V2527E AQ02, V2530 AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ03, V2530 AQ03, V2522/V2524/V2527M SQ02, V2527/V2527E SQ02, V2530 SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ03, V2530 SQ03, V2522/V2524/V2527M SQ04, V2527/V2527E SQ04, V2530 SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ05, V2530 SQ05
011011B2A3002• HUB - TURBINE, 2ND STAGE, ASSEMBLY OF
PRE SBE72-0327
aa-ab/031
V2533 AQ02, V2533 AQ03, V2533 SQ02, V2533 SQ03, V2533 SQ04, V2533 SQ05
011011C2A4802• HUB - TURBINE, 2ND STAGE, ASSEMBLY OF
POST SBE72-0327
REF SBE72-0713
ac-ad/041
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
011011D2A4802• HUB - TURBINE, 2ND STAGE, ASSEMBLY OF
POST SBE72-0562
REF SBE72-0713
ad/051
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
011011E2A3002• HUB - TURBINE, 2ND STAGE, ASSEMBLY OF
POST SBE72-0562
ad/051
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
0200202A2406• HEATSHIELD - HPT, 2ND STAGE
aa-ad/021
V2522/V2524/V2527M AQ02, V2527/V2527E AQ02, V2530 AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ03, V2530 AQ03, V2522/V2524/V2527M SQ02, V2527/V2527E SQ02, V2530 SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ03, V2530 SQ03, V2522/V2524/V2527M SQ04, V2527/V2527E SQ04, V2530 SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ05, V2530 SQ05
020020A2A2406• HEATSHIELD - HPT, 2ND STAGE
aa-ad/031
V2533 AQ02, V2533 AQ03, V2533 SQ02, V2533 SQ03, V2533 SQ04, V2533 SQ05
0300302A2403• METERING PLUG - HPT, 2ND STAGE
aa-ad/024
V2522/V2524/V2527M AQ02, V2527/V2527E AQ02, V2530 AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ03, V2530 AQ03, V2522/V2524/V2527M SQ02, V2527/V2527E SQ02, V2530 SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ03, V2530 SQ03, V2522/V2524/V2527M SQ04, V2527/V2527E SQ04, V2530 SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ05, V2530 SQ05
030030A2A2403• METERING PLUG - HPT, 2ND STAGE
aa-ad/034
V2533 AQ02, V2533 AQ03, V2533 SQ02, V2533 SQ03, V2533 SQ04, V2533 SQ05
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

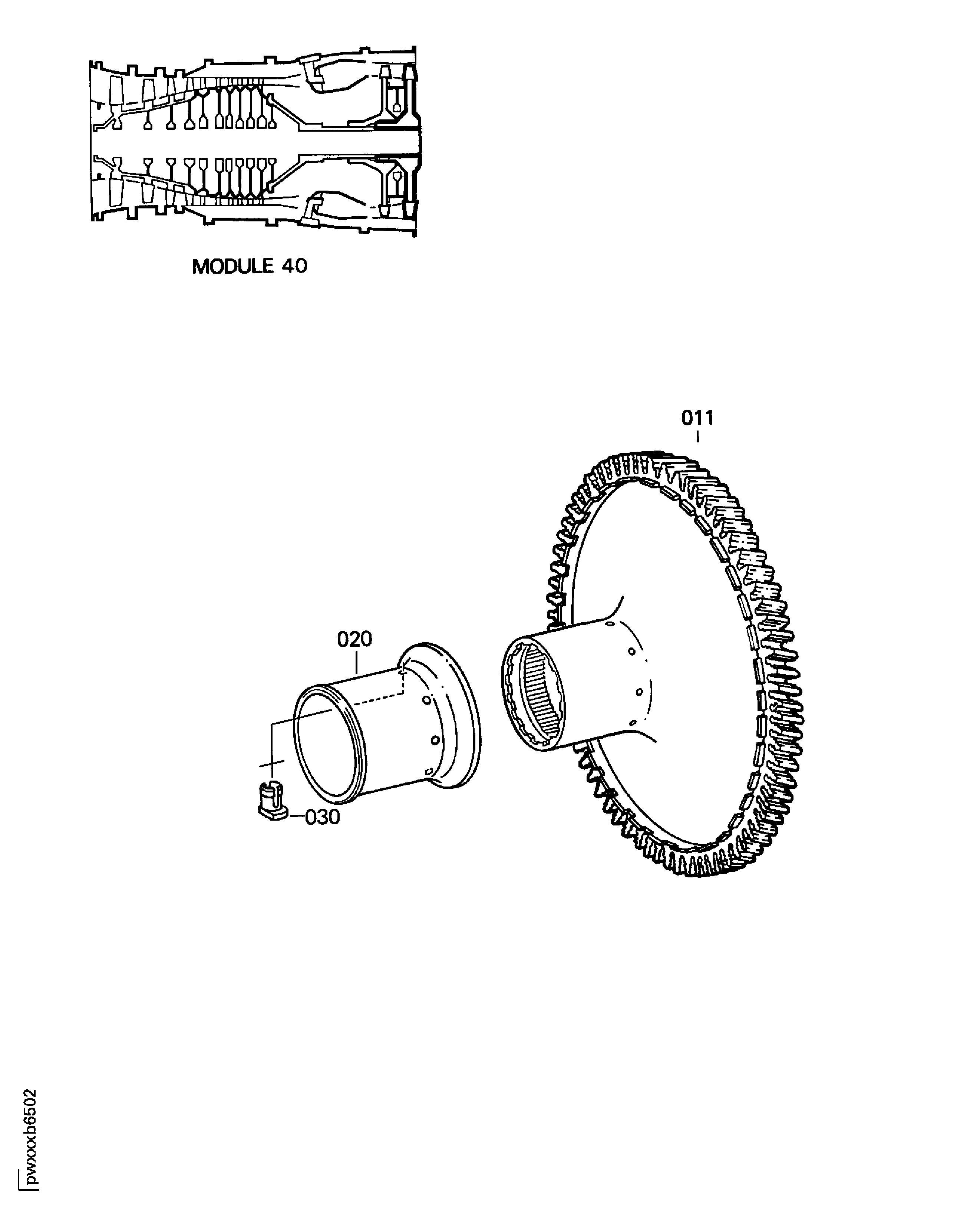

Figure: ENGINE-STAGE 2 TURBINE HUB

ENGINE-STAGE 2 TURBINE HUB

Change Type:

Incorporated Non-Mod SBE 72-0713

Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Part Number:2A2302
Part Name:HUB - TURBINE, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A2403
Part Name:METERING PLUG - HPT, 2ND STAGE
Manufacturer Code:0AM53
Part Number:2A2406
Part Name:HEATSHIELD - HPT, 2ND STAGE
Manufacturer Code:0AM53
Part Number:2A3002
Part Name:HUB - TURBINE, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A4802
Part Name:HUB - TURBINE, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
