HPT Stage 2 Blade And Related Parts

DMC:V2500-A5-72-45-32-01A-941A-D|Issue No:006|Issue Date:2018-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A5

Fig. Item	Part No.	Description	Effect/Model Applic.	UPA
01
-000	B72453201	ENGINE - STAGE 2 HPT BLADE, ASSEMBLY, PRE SBE72-0187	aa
-000	SBE0187-01	ENGINE - STAGE 2 HPT BLADE, ASSEMBLY, PRE SBE72-0220	ab
-000	SBE0220-01	ENGINE - STAGE 2 HPT BLADE, ASSEMBLY, PRE SBE72-0302	ac
-000	SBE0302-01	ENGINE - STAGE 2 HPT BLADE, ASSEMBLY, PRE SBE72-0562	ad
-000	SBE0562-01	ENGINE - STAGE 2 HPT BLADE, ASSEMBLY, PRE SBE72-0575	ae
-000	SBE0575-01	ENGINE - STAGE 2 HPT BLADE, ASSEMBLY	af
-000	SBE0653-01	ENGINE-STAGE 2 HPT BLADE ASSEMBLY	ag
010010	2A2202	• BLADE - HPT, 2ND STAGE, ASSEMBLY OF PRE SBE72-0187	aa/01	72
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
010010A	2A2702	• BLADE - HPT, 2ND STAGE, ASSEMBLY OF POST SBE72-0187 PRE SBE72-0220	ab/01	72
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
010010B	2A2202-001	• BLADE,HPT,2STG,ASYO 77445 POST SBE72-0220 PRE SBE72-0302	ac/01	72
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
010010C	2A8702	• BLADE - HPT, 2ND STAGE, ASSEMBLY OF ALT 2A2202-001 POST SBE72-0220 PRE SBE72-0302	ac/02	72
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
010010D	2A2202-002	• BLADE - 2STG HPT, ASSEMBLY OF 77445 ALT 2A2202-003 POST SBE72-0302 PRE SBE72-0653	ad-af/01	72
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
010010E	2A2202-003	• BLADE - 2STG HPT, ASSEMBLY OF 77445 POST SBE72-0302 PRE SBE72-0653	ad-af/01	72
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
010010F	2A9002	• BLADE - HPT, 2ND STAGE, ASSEMBLY OF POST SBE72-0302 PRE SBE72-0653 PRE SBE72-0562	ad-af/02	72
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
010010G	2A2702-001	• BLADE - 2STG HPT, ASSEMBLY OF 77445 POST SBE72-0302 PRE SBE72-0653	ad-af/02	72
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
010010H	2A4122	• BLADE - HPT, 2ND STAGE, ASSEMBLY OF POST SBE72-0562 PRE SBE72-0575	ae/08	72
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
010010I	2A4422	• BLADE - HPT, 2ND STAGE, ASSEMBLY OF POST SBE72-0562 PRE SBE72-0562	*****/08	72
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
010010J	2A4422	• BLADE - HPT, 2ND STAGE, ASSEMBLY OF POST SBE72-0562 POST SBE72-0575 PRE SBE72-0653	af/08	72
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
010010K	2A4722	• BLADE - HPT, 2ND STAGE, ASSEMBLY OF POST SBE72-0653	ag/02	72
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
010010L	2A4822	• BLADE - HPT, 2ND STAGE, ASSEMBLY OF POST SBE72-0653	ag/08	72
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
013013	2A2278	• • PLATE - HPT, 2ND STAGE	aa-af/02	1
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
013013A	2A0159	• • PLATE - HPT, 2ND STAGE POST SBE72-0562 PRE SBE72-0575	ae/08	1
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
013013B	2A2278	• • PLATE - HPT, 2ND STAGE POST SBE72-0575	af/08	1
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
020020	2A2524	• DAMPER - HPT, 2ND STAGE	aa-af/05	72
V2522/V2524/V2527M AQ02, V2527/V2527E AQ02, V2530 AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ03, V2530 AQ03, V2522/V2524/V2527M SQ02, V2527/V2527E SQ02, V2530 SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ03, V2530 SQ03, V2522/V2524/V2527M SQ04, V2527/V2527E SQ04, V2530 SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ05, V2530 SQ05
020020A	2A2524	• DAMPER - HPT, 2ND STAGE	aa-af/06	72
V2533 AQ02, V2533 AQ03, V2533 SQ02, V2533 SQ03, V2533 SQ04, V2533 SQ05
040040	2A0532	• SEAL - HPT, 2ND STAGE	aa-af/07	72
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

Manufacturer Code:	0AM53
Enterprise Name:	IAE INTERNATIONAL AERO ENGINES AG
BU Name:	NULL
Building:	SUITE 400
Street:	628 HEBRON AVENUE
City:	GLASTONBURY
State:	CT
Zip Code:	06033
Country:	USA

Manufacturer Code:	77445
Enterprise Name:	PRATT AND WHITNEY
BU Name:	PRATT & WHITNEY
Street:	400 MAIN STREET
City:	EAST HARTFORD
Country:	USA
Phone Number:	8605657700

Part Number:	2A0159
Part Name:	PLATE - HPT, 2ND STAGE
Manufacturer Code:	0AM53

Part Number:	2A0532
Part Name:	SEAL - HPT, 2ND STAGE
Manufacturer Code:	0AM53

Part Number:	2A2202
Part Name:	BLADE - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:	0AM53

HPT Stage 2 Blade And Related Parts

Export Control

Copyright

Applicability

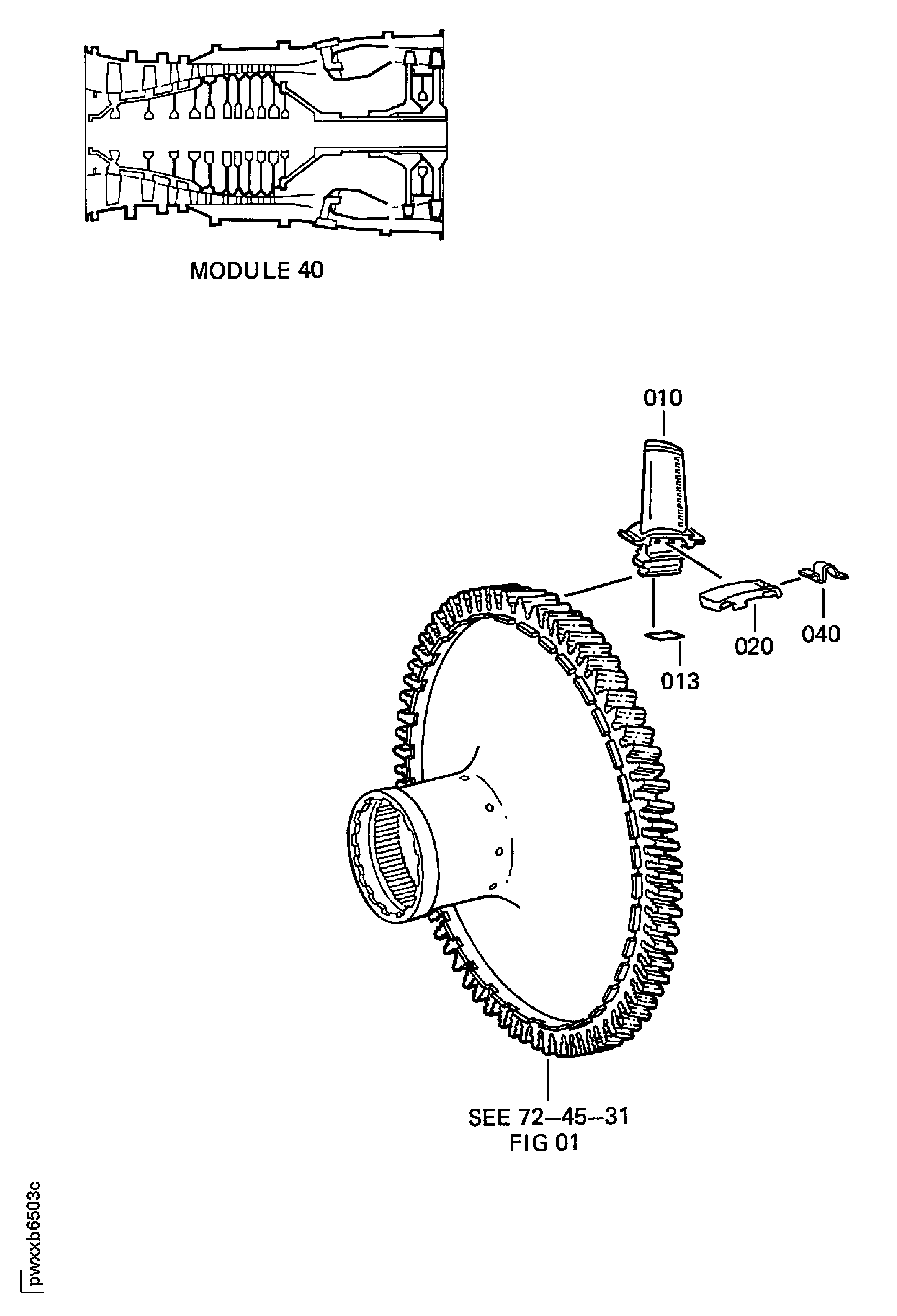

Figure: HPT Stage 2 Blade And Related Parts
