| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| - | B72453301 | ENGINE-STAGE 2 HPT BLADE RETAINING PLATE, PRE SBE72-0222 | aa | |
| - | SBE0222-01 | ENGINE-STAGE 2 HPT BLADE RETAINING PLATE, PRE SBE72-0327 | ab | |
| - | SBE0327-01 | ENGINE-STAGE 2 HPT BLADE RETAINING PLATE, PRE SBE72-0363 | ac | |
| - | SBE0363-01 | ENGINE-STAGE 2 HPT BLADE RETAINING PLATE, PRE SBE72-0399 | ad | |
| - | SBE0399-01 | ENGINE-STAGE 2 HPT BLADE RETAINING PLATE, PRE SBE72-0328 | ae | |
| - | SBE0328-01 | ENGINE-STAGE 2 HPT BLADE RETAINING PLATE, PRE SBE72-0562 | af | |
| - | SBE0562-01 | ENGINE-STAGE 2 HPT BLADE RETAINING PLATE | ag | |
| 010 | 2A0044 | • SEAL, HPT, STAGE 1 AND STAGE 2 PRE SBE72-0363 | aa-ag/01 | 1 |
| 010A | 50L294 | • SEAL - HPT, 1 & 2 STAGE 77445 POST SBE72-0363 | ad-ag/01 | 1 |
| 020 | 2A2097 | • PLATE, RTNG,BLADE,HPT,2 STG PRE SBE72-0327 | aa-ag/02 | 1 |
| 020A | 2A3426 | • PLATE, RING HPT,STAGE 2 POST SBE72-0327 PRE SBE72-0328 | ac-ae/01 | 1 |
| 020B | 2A3437 | • PLATE, RING HPT,STAGE 2 POST SBE72-0328 REF SBE72-0682 REF SBE72-0681 | af-ag/01 | 1 |
| 020C | 2A3426 | • PLATE, RING HPT,STAGE 2 POST SBE72-0562 | ag/06 | 1 |
| 020D | 2A3437 | • PLATE, RING HPT,STAGE 2 POST SBE72-0562 REF SBE72-0682 REF SBE72-0681 | ag/06 | 1 |
| 040 | 2A1638 | • RETAINER, TURBINE BLADE LOCK PRE SBE72-0222 | aa/04 | 2 |
| 040A | 2A3158 | • RETAINER, TURBINE BLADE LOCK POST SBE72-0222 PRE SBE72-0399 | ab-ad/04 | 2 |
| 040B | 2A3158 | • RETAINER, TURBINE BLADE LOCK PRE SBE72-0399 | aa-ad/05 | 2 |
| 040C | 2A3546 | • RETAINER, TURBINE BLADE LOCK POST SBE72-0399 | ae-ag/01 | 4 |
| 060 | 2A1097 | • LOCK, HPT 2 STAGE PRE SBE72-0399 | aa-ad/01 | 2 |
| 060A | 2A3545 | • LOCK, HPT STAGE 2 POST SBE72-0399 | ae-ag/01 | 4 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

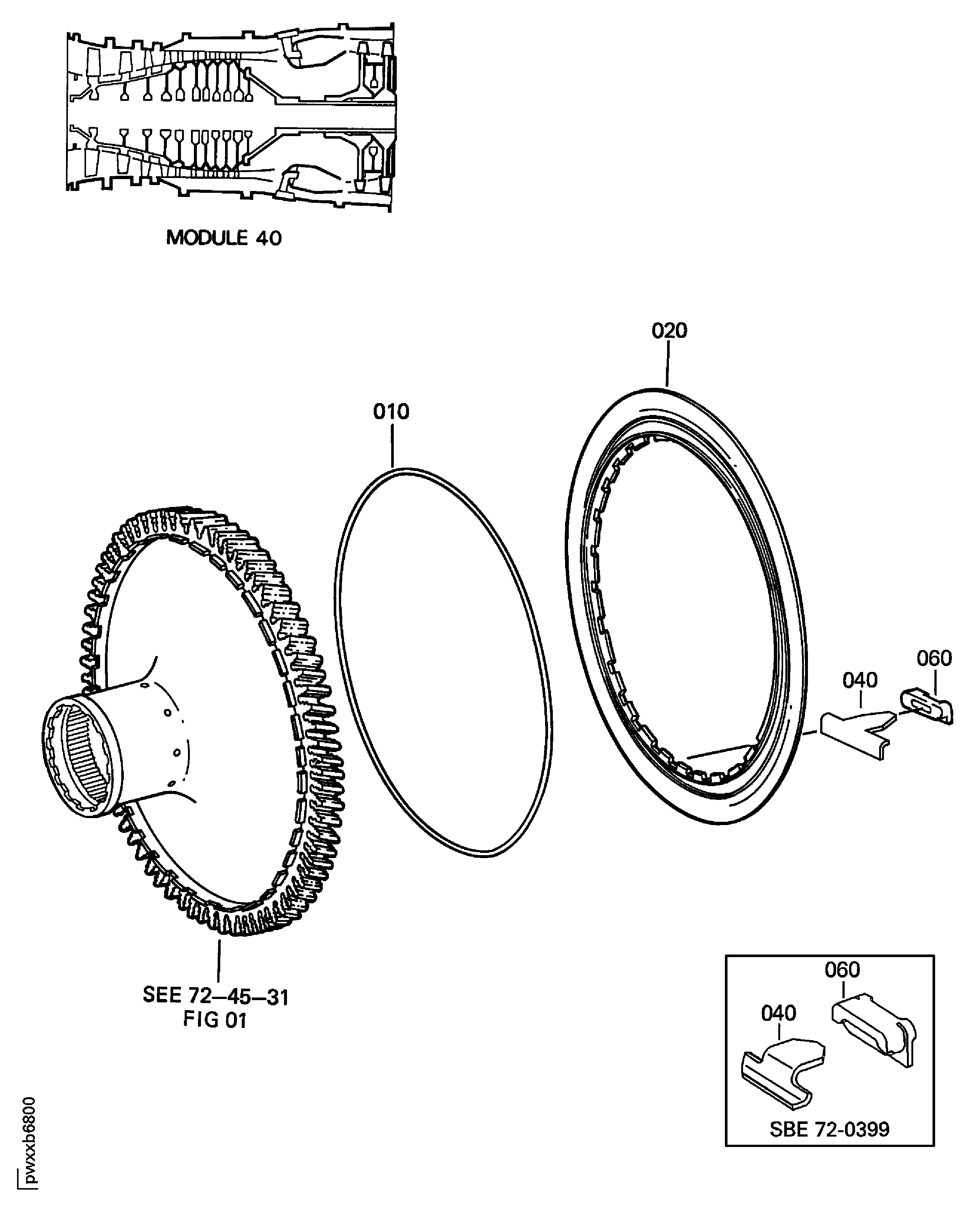

Figure: HPT Stage 2 Blade Retaining Plate And Related Parts
HPT Stage 2 Blade Retaining Plate And Related Parts
