DMC:V2500-A5-72-50-21-01A-941A-DIssue No:002.00Issue Date:2021-02-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| - | B72502101 | ENGINE - LP TURBINE CASE, PRE SBE72-0164 | aa | |
| - | SBE0164-01 | ENGINE - LP TURBINE CASE, PRE SBE70-0519 | ab | |
| - | SBE0519-01 | ENGINE - LP TURBINE CASE | ac | |
| 010 | 3A1908 | • CASE - LPT, ASSEMBLY OF PRE SBE72-0164 | aa-ac/01 | 1 |
| 010A | 3A2183 | • CASE - LPT, ASSEMBLY OF POST SBE72-0164 | ab-ac/01 | 1 |
| 010B | 3A2183 | • CASE - LPT, ASSEMBLY OF POST SBE72-0164 PRE SBE70-0519 | ab/02 | 1 |
| 010C | 3A2447 | • CASE - LPT, ASSEMBLY OF POST SBE70-0519 | ac/03 | 1 |
| 040 | 3A0709 | • • PIN | aa-ac/03 | 1 |
| 050 | AGS3707 | • • INSERT - SCREW THREAD, .250 DIA U1653 | aa-ac/03 | 8 |
| 060 | 3A0478 | • • BOSS - MOUNTING | aa-ac/03 | 8 |
| 070 | AN123337 | • • RIVET 88044 | aa-ac/03 | 32 |
| 090 | 3A0514 | • • BOSS - INTRASCOPE PRE SBE72-0164 | aa/01 | 2 |
| 090A | 3A2190 | • • BOSS - INTRASCOPE POST SBE72-0164 | ab-ac/01 | 2 |
| 090B | 3A2190 | • • BOSS - INTRASCOPE | aa-ac/02 | 2 |
| 100 | AN123685 | • • RIVET - SOLID, COUNTERSUNK HEAD 88044 PRE SBE72-0164 | aa/01 | 8 |
| 100A | AN123337 | • • RIVET 88044 POST SBE72-0164 | ab-ac/01 | 8 |
| 100B | AN123337 | • • RIVET 88044 | aa-ac/02 | 8 |
| 110 | 3A0857 | • • BRACKET | aa-ac/03 | 1 |
| 112 | AN123399 | • • RIVET - SOLID UNIVERSAL HD 88044 | aa-ac/03 | 4 |
| 114 | 4W0043 | • • NUT, SELF LOCKING, ASSEMBLY OF - .190 DIA (SEE APPENDIX 5) | aa-ac/03 | 2 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

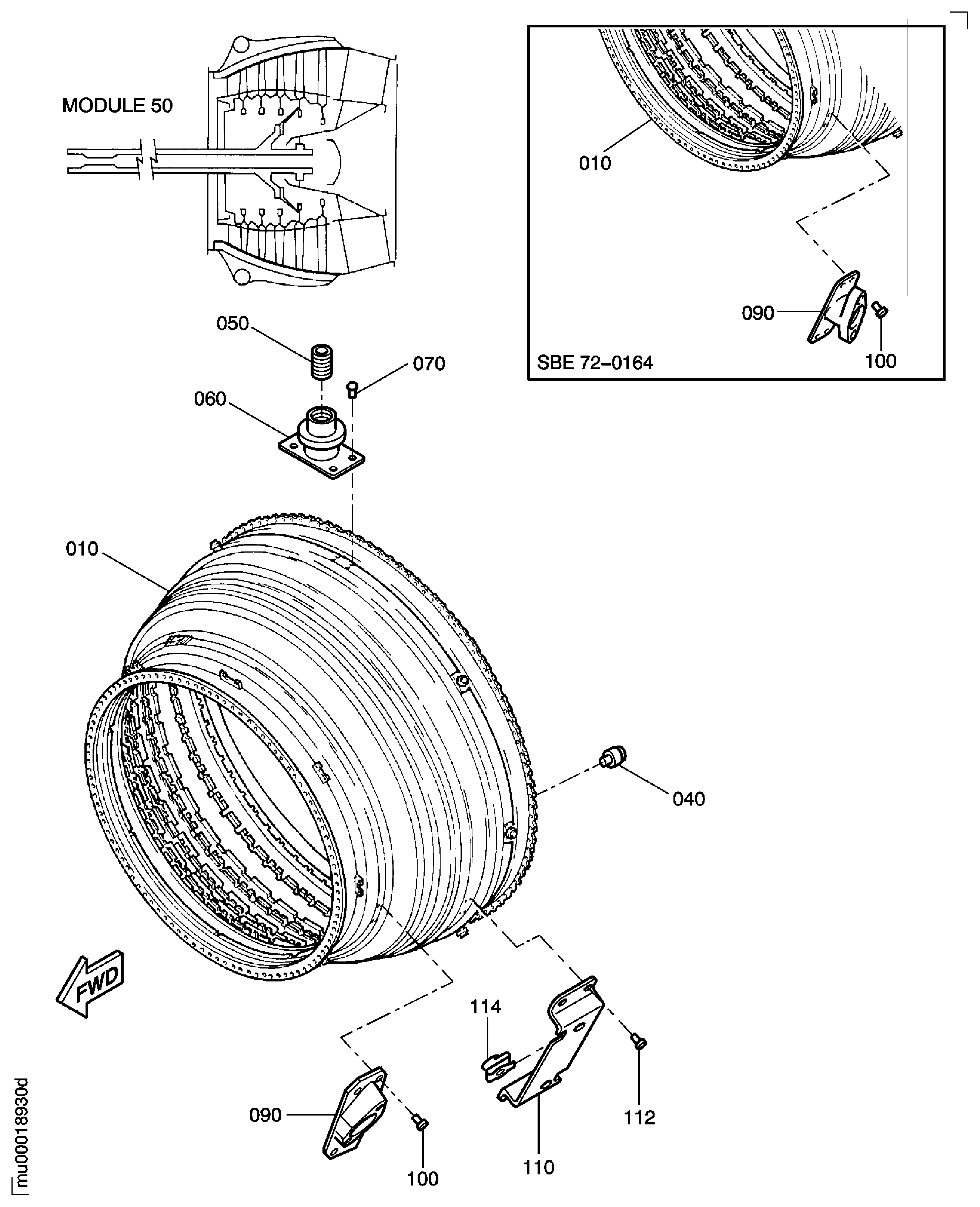

Figure: LPT Case, Heat Shields, And Seal Segments
LPT Case, Heat Shields, And Seal Segments
