| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 02 | ||||
| B72502102 | ENGINE-LP TURBINE CASE | aa | ||
| 310 | 3A1975 | • SHIELD - A/O HEAT STG5 REAR | aa | 3 |
| 330 | 3A1981 | • SHIELD - A/O HEAT STG5 REAR | aa | 1 |
| 350 | 3A1970 | • SEAL - A/O SEGMENT STG5 | aa | 3 |
| 370 | 3A1973 | • SEAL - A/O SEGMENT STG5 | aa | 1 |
| 390 | 3A1964 | • SHIELD - A/O HEAT STG5 FRONT | aa | 3 |
| 410 | 3A1968 | • SHIELD - A/O HEAT STG5 FRONT | aa | 1 |
| 430 | 3A1956 | • SHIELD - A/O HEAT STG4 REAR | aa | 3 |
| 450 | 3A1962 | • SHIELD - A/O HEAT STG4 REAR | aa | 1 |
| 470 | 3A1951 | • SEAL - A/O SEGMENT STG4 | aa | 2 |
| 490 | 3A1954 | • SEAL - A/O SEGMENT STG4 | aa | 2 |
| 510 | 3A1945 | • SHIELD - A/O HEAT STG4 FRONT | aa | 2 |
| 530 | 3A1949 | • SHIELD - A/O HEAT STG4 FRONT | aa | 2 |
| 550 | 3A1937 | • SHIELD - A/O HEAT STG3 REAR | aa | 2 |
| 570 | 3A1943 | • SHIELD - A/O HEAT STG3 REAR | aa | 2 |
| 590 | 3A1932 | • SEAL - A/O SEGMENT STG3 | aa | 3 |
| 610 | 3A1935 | • SEAL - A/O SEGMENT STG3 | aa | 1 |
| 630 | 3A1922 | • SHIELD - A/O HEAT STG3 FRONT | aa | 1 |
| 650 | 3A1926 | • SHIELD - A/O HEAT STG3 FRONT | aa | 1 |
| 670 | 3A1928 | • SHIELD - A/O HEAT STG3 FRONT | aa | 1 |
| 690 | 3A1930 | • SHIELD - A/O HEAT STG3 FRONT | aa | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

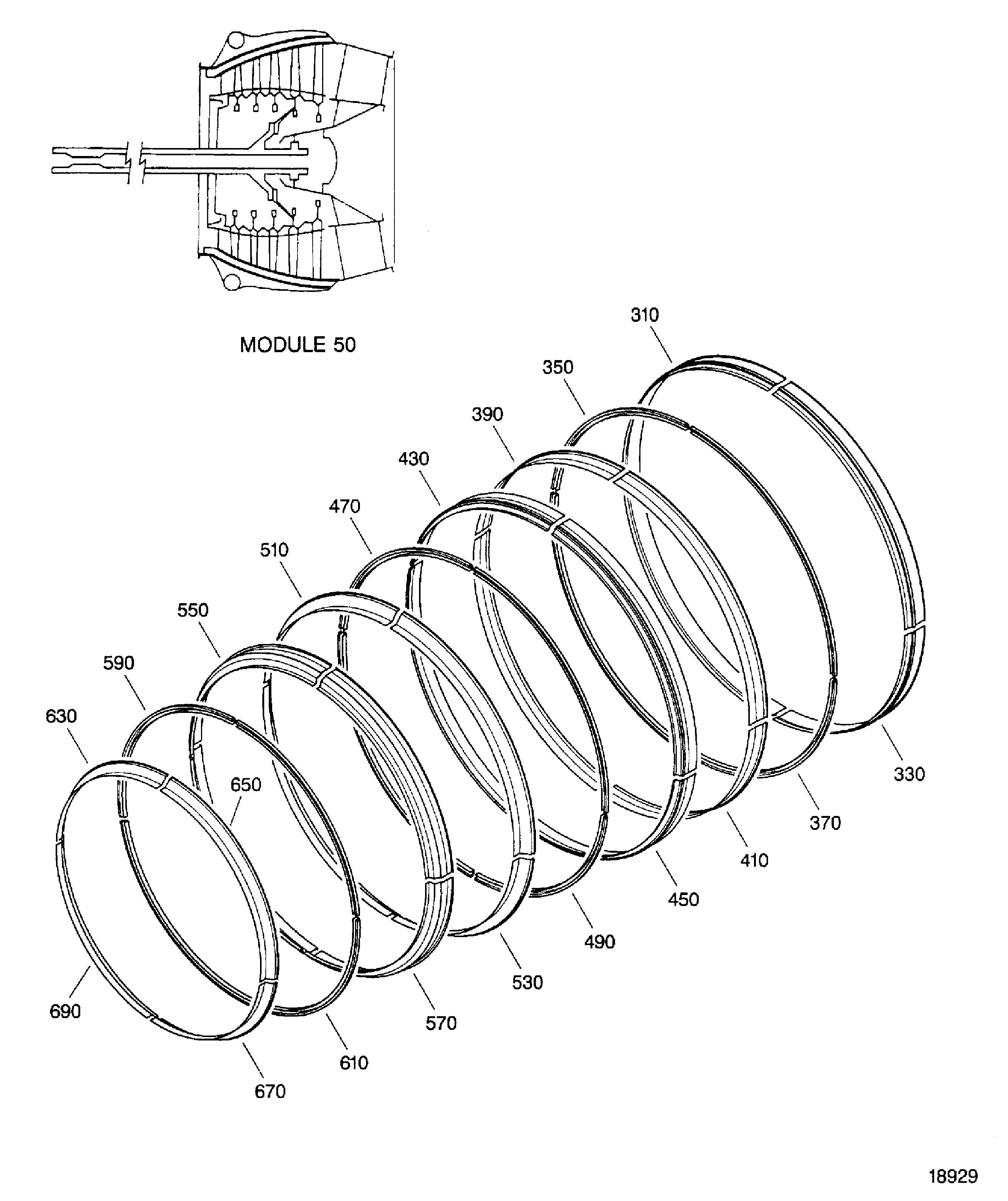

Figure: ENGINE-LP TURBINE CASE
LPT CASE
