DMC:V2500-A5-72-50-42-20A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 20 | ||||
| - | B72504220 | ENGINE-NO.5 BEARING ASSEMBLY AND SEAL, PRE SBE72-0162 | aa | |
| - | SBE0162-01 | ENGINE-NO.5 BEARING ASSEMBLY AND SEAL, PRE SBE72-0165 | ab | |
| - | SBE0165-01 | ENGINE-NO.5 BEARING ASSEMBLY AND SEAL | ac | |
| 120 | 2A1217 | • SPACER, NO. 5 BEARING SEAL | aa-ac/01 | 1 |
| 140 | 2A2133 | • SEAL ALT 2A1214 PRE SBE72-0162 | aa-ac/02 | 1 |
| -140A | 2A1214 | • SEAL, NO. 5 BEARING, FACE ALT 2A1215 PRE SBE72-0162 | aa-ac/02 | REF |
| -140B | 2A1215 | • SEAL, FACE, #5BRG ALT 2A1216 PRE SBE72-0162 | aa-ac/02 | REF |
| -140C | 2A1216 | • SEAL, FACE, #5BRG ALT 2A2133 PRE SBE72-0162 | aa-ac/02 | REF |
| 140D | 2A2877 | • SEAL - OPTION ALT 2A2878 POST SBE72-0162 | ab-ac/02 | 1 |
| -140E | 2A2878 | • SEAL, FACE, NO. 5, BEARING ALT 2A2879 POST SBE72-0162 | ab-ac/02 | REF |
| -140F | 2A2879 | • SEAL ALT 2A2877 | aa-ac/02 | REF |
| 140G | 2A2877 | • SEAL - OPTION ALT 2A2878 | aa-ac/03 | 1 |
| -140H | 2A2878 | • SEAL, FACE, NO. 5, BEARING ALT 2A2879 | aa-ac/03 | REF |
| -140I | 2A2879 | • SEAL POST SBE72-0162 | ab-ac/03 | REF |
| 160 | 2A1218 | • SPACER, NO. 5 BEARING SEAL PRE SBE72-0165 | aa-ac/02 | 1 |
| 160A | 2A2919 | • SPACER, NO. 5 BEARING SEAL POST SBE72-0165 | ab-ac/02 | 1 |
| 160B | 2A2919 | • SPACER, NO. 5 BEARING SEAL | aa-ac/03 | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

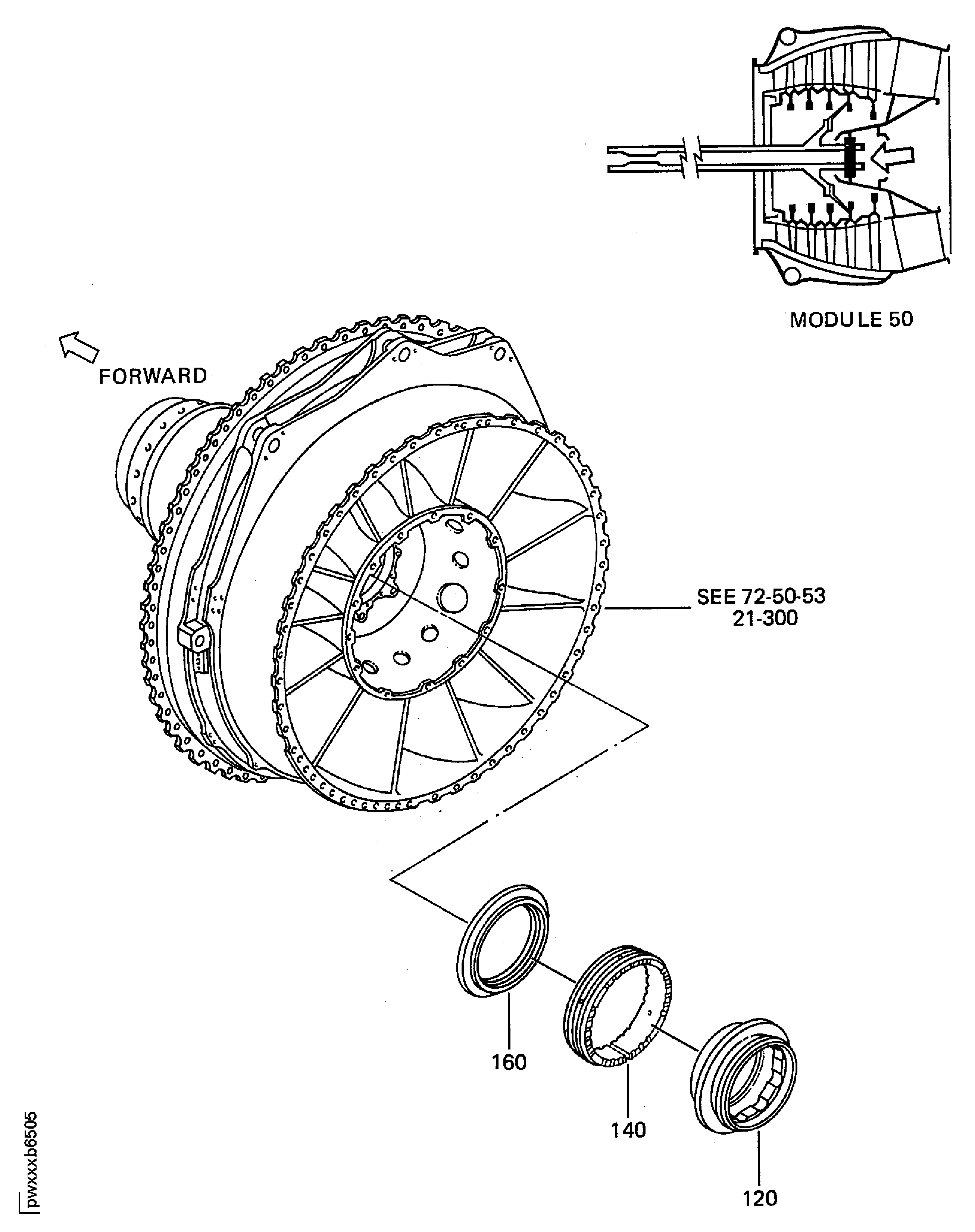

Figure: ENGINE-NO.5 BEARING ASSEMBLY AND SEAL
ENGINE-NO.5 BEARING ASSEMBLY AND SEAL
