DMC:V2500-A5-72-60-31-01A-941A-DIssue No:002.00Issue Date:2015-11-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72603101 | ENGINE-DEOILER CASE AND COVER, PRE SBE72-0504 | aa | ||
| SBE0504-01 | ENGINE-DEOILER CASE AND COVER | ab | ||
| 092 | 4A0401 | • SEAL - ASSEMBLY | aa-ab | 1 |
| 100 | 4W0167 | • BOLT - .250 DIA X .812 | aa-ab | 3 |
| 103 | MS9321-10 | • WASHER 96906 | aa-ab | 3 |
| 120 | AS3209-143 | • • PACKING - PREFORMED U1653 | aa-ab | 1 |
| 125 | 4B7049 | • • CASING - A/O,AIR PORT | aa-ab | 1 |
| 130 | MS21209F4-15L | • • • INSERT - WIRE THREAD, .250 DIA 96906 | aa-ab | 3 |
| 150 | 4T0277 | • • SEAL | aa-ab | 1 |
| 170 | 4B7262 | • CASING - A/O DEOILER PRE SBE72-0504 | aa | 1 |
| 170A | 4B7361 | • CASING - DE-OILER ASSY POST SBE72-0504 | ab | 1 |
| 170B | 4B7361 | • CASING - DE-OILER ASSY | aa-ab | 1 |
| 180 | MS21209F4-15L | • • INSERT - WIRE THREAD, .250 DIA 96906 | aa-ab | 12 |
| 200 | 4B7078 | • • STRAINER - A/O ELEMENT | aa-ab | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

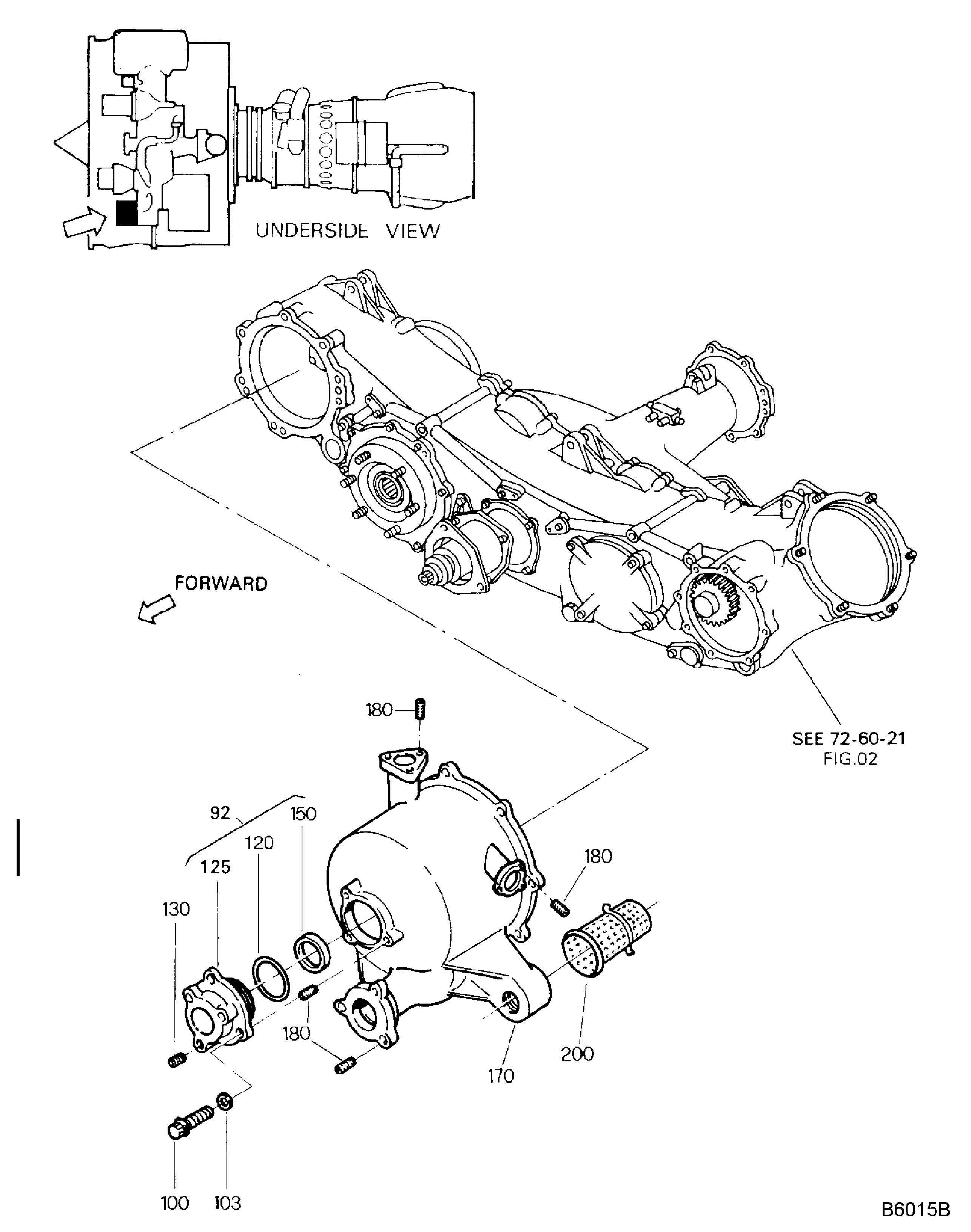

Figure: ENGINE-DEOILER CASE AND COVER
DEOILER CASE AND COVER
