| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72603201 | ENGINE - ANGLE GEARBOX SUPPORT, PRE SBE70-0079 | aa | ||
| SBE0079-01 | ENGINE - ANGLE GEARBOX SUPPORT, PRE SBE72-0492 | ab | ||
| SBE0492-01 | ENGINE - ANGLE GEARBOX SUPPORT, PRE SBE70-0950 | ac | ||
| SBE0950-01 | ENGINE - ANGLE GEARBOX SUPPORT | ad | ||
| 160 | 4B0217 | • STRAINER - SUCTION, ASSEMBLY OF | aa-ad | 1 |
| 165 | 4W0002 | • NUT - 0.250 DIA PRE SBE72-0492 | aa-ab | 1 |
| 165A | 4W1246 | • BOLT - 0.250 DIA X 0.750 POST SBE72-0492 | ac-ad | 1 |
| 167 | AS3209-122 | • PACKING - PREFORMED U1653 | aa-ad | 1 |
| 169 | AS3209-120 | • PACKING - PREFORMED U1653 | aa-ad | 2 |
| 300 | 4B0062 | • SUPPORT - ANGLE GEARBOX, ASSEMBLY OF PRE SBE72-0492 | aa-ac | 1 |
| 300A | 4B0353 | • SUPPORT - ANGLE GEARBOX, ASSEMBLY OF A3460 POST SBE72-0492 PRE SBE70-0950 | aa-ac | 1 |
| 300B | 4B0374 | • SUPPORT - ANGLE GEARBOX, ASSEMBLY OF A3460 POST SBE70-0950 | aa-ad | 1 |
| 310 | 4L0091 | • • BUSHING A3460 POST SBE70-0079 | ab-ad | 1 |
| 320 | 4P0040 | • • INSERT PRE SBE72-0492 | aa-ab | 3 |
| 320A | 1518M33P01 | • • INSERT - SCREW THREAD 07482 POST SBE72-0492 PRE SBE70-0950 | ac | 3 |
| 320B | 4T0318 | • • INSERT - SCREW THREAD A3460 POST SBE70-0950 | ac-ad | 3 |
| 340 | MS51990E105P | • • RING - LOCKING 96906 PRE SBE72-0492 | aa-ab | 6 |
| 360 | MS51551C205-9 | • • STUD 96906 PRE SBE72-0492 | aa-ab | 6 |
| 360A | MS21209F4-20L | • • INSERT 96906 POST SBE72-0492 | ac-ad | 6 |
| 400 | MS51551C205-9 | • • STUD 96906 PRE SBE72-0492 | aa-ab | 1 |
| 400A | MS21209F4-20L | • • INSERT 96906 POST SBE72-0492 | ac-ad | 1 |
| 420 | MS51990E106P | • • RING - LOCKING 96906 | aa-ad | 4 |
| 440 | MS51551C206-15 | • • STUD 96906 | aa-ad | 4 |
| 460 | MS51990E106P | • • RING - LOCKING 96906 | aa-ad | 1 |
| 480 | MS51991E206L | • • INSERT - SCREW 96906 | aa-ad | 1 |
| 500 | 4P0040 | • • INSERT PRE SBE72-0492 | aa-ab | 2 |
| 500A | 1518M33P01 | • • INSERT - SCREW THREAD 07482 POST SBE72-0492 PRE SBE70-0950 | ac | 2 |
| 500B | 4T0318 | • • INSERT - SCREW THREAD A3460 POST SBE70-0950 | ac-ad | 2 |
| 520 | 4P0032 | • • BUSHING | aa-ad | 2 |
| 540 | AS3124-12 | • • PIN U1653 | aa-ad | 1 |
| 560 | AS3123-12 | • • PLUG - EXPANSION U1653 | aa-ad | 1 |
| 580 | 4P0116 | • • PIN | aa-ad | 1 |
| 600 | MS51990E105P | • • RING - LOCKING 96906 PRE SBE72-0492 | aa-ab | 1 |
| 620 | MS51551C205-9 | • • STUD 96906 PRE SBE72-0492 | aa-ab | 1 |
| 620A | MS21209F4-20L | • • INSERT 96906 POST SBE72-0492 | ac-ad | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

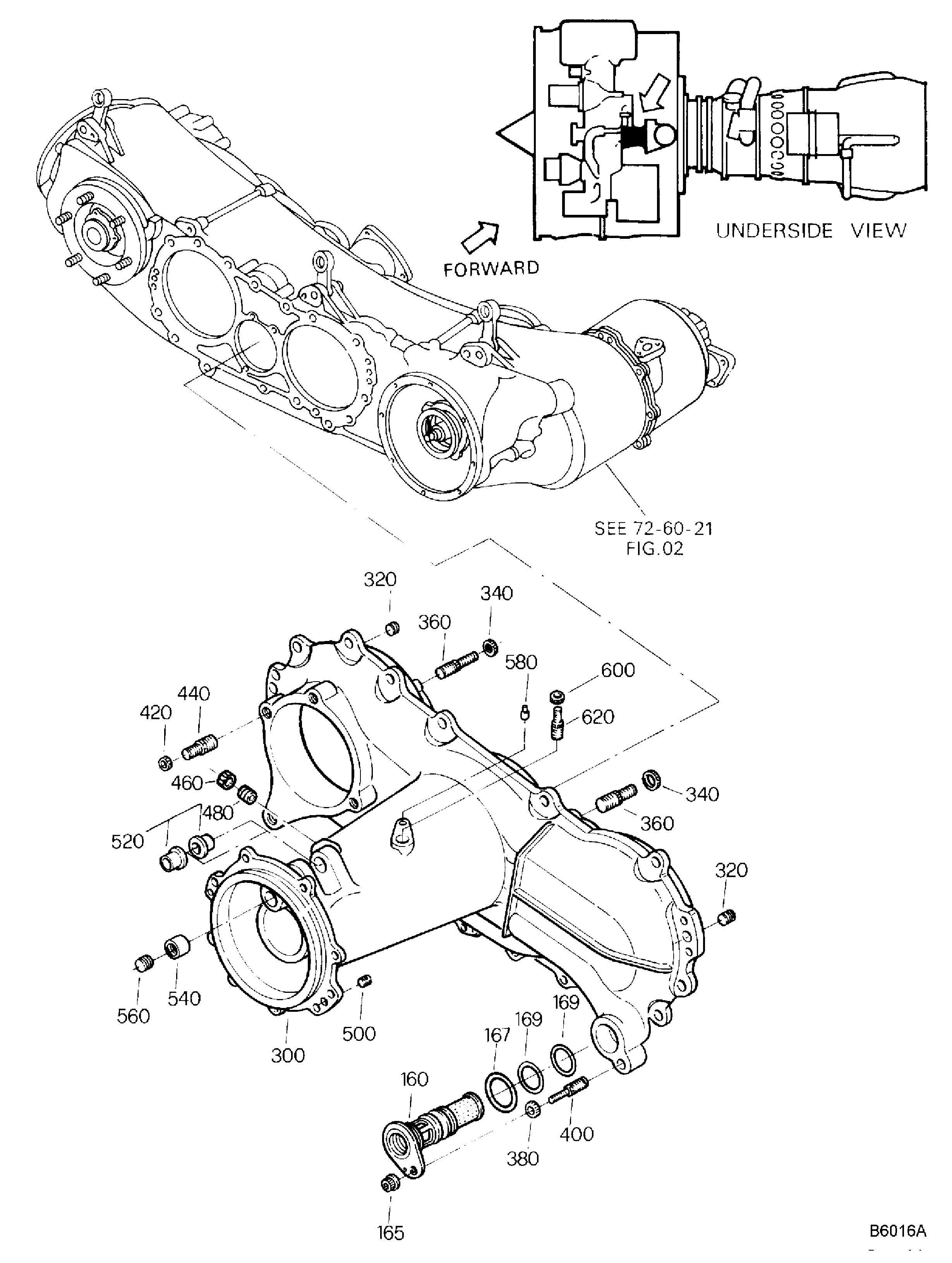

Figure: ENGINE-ANGLE GEARBOX SUPPORT
ANGLE GEARBOX SUPPORT
