DMC:V2500-A5-72-61-49-01A-941A-DIssue No:002.00Issue Date:2018-11-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72614901 | ENGINE - GEARBOX BREATHER OUTLET DUCT | aa | ||
| 010 | 740-5720-505 | • DUCT - ASSEMBLY OF 51563 | aa | 1 |
| 020 | AS21009 | • BOLT - 0.25 DIA X 0.562 U1653 | aa | 3 |
| 020A | AS21009 | • BOLT - 0.25 DIA X 0.562 U1653 ALT MS9557-07 | aa | 3 |
| -020B | MS9557-07 | • BOLT - MACHINE, DOUBLE HEX 96906 ALT AS21009 | aa | REF |
| 030 | AS3209-226 | • PACKING - PREFORMED U1653 ALT AS43013-226 | aa | 1 |
| -030A | AS43013-226 | • RING U1653 ALT AS3209-226 | aa | REF |
| 040 | 740-4073-503 | • SEAL 51563 | aa | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

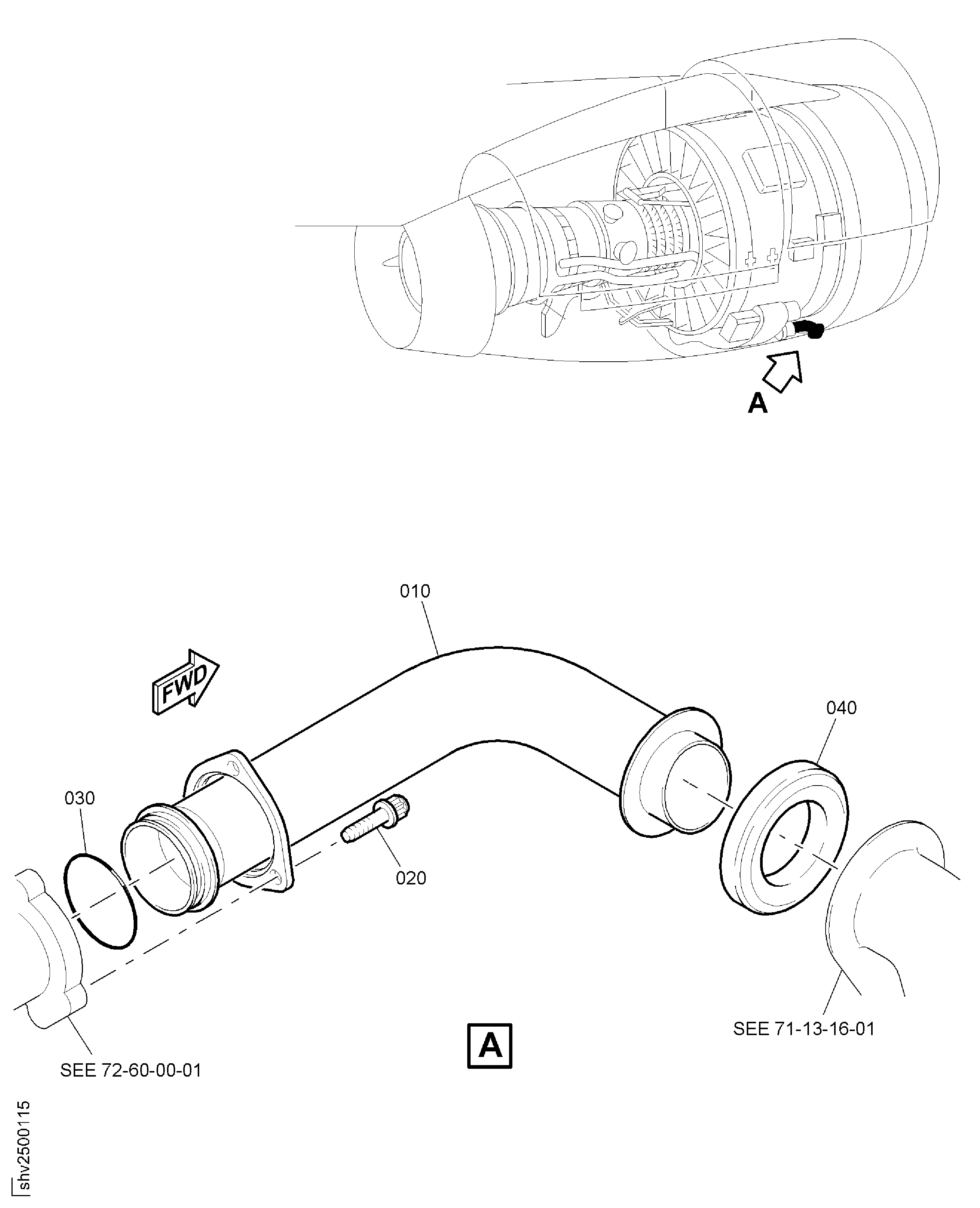

Figure: ENGINE-GEARBOX BREATHER OUTLET DUCT
DUCT GEARBOX BREATHER
