FUEL SYSTEM TUBES (RIGID)-POWER PLANT

DMC:V2500-A5-73-11-47-02A-941A-D|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A5

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
02
000B73114702FUEL SYSTEM TUBES (RIGID)-POWER PLANT, PRE SBE70-0727aa
000SBE0727-01FUEL SYSTEM TUBES (RIGID)-POWER PLANT, PRE SBN70-0732ab
000SBN0732-01FUEL SYSTEM TUBES (RIGID)-POWER PLANT, PRE SBE70-0902ac
000SBE0902-01FUEL SYSTEM TUBES (RIGID)-POWER PLANTad
-005005745-5004-501• ARRNGMNT - FUEL SYSTEM
51563		aa-adREF
100100740-5654-501• TUBE - ASSY
51563		aa-ad1
101101AS21515• BOLT - .250 DIA X .938
U1653
PRE SBN70-0732		aa-ad3
101101A4W0169• BOLT - .250 DIA X .938
POST SBN70-0732		aa-ad3
108108AS43013-112• RING - 12.37 MM I/D X 2.62 MM
U1653		aa-ad1
110110AN924-8S• NUT
81352		aa-ad1
112112AN960C1216• WASHER
81352
ALT AN960C1216L		aa-ad1
112112AAN960C1216L• WASHER
81352
ALT AN960C1216
PRE SBE70-0902		aa-ad1
112112BAN960C1216• WASHER
81352
POST SBE70-0902		ad1
113113AN960C1216L• WASHER
81352
POST SBE70-0902		ad1
114114MS21924-8S• UNION
96906		aa-ad1
114114AMS21924-8S• UNION
96906
POST SBE70-0727		ab-ad1
114114BMS21924-8R• UNION
96906
ALT MS21924-8S
POST SBE70-0727		aa-ad1
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

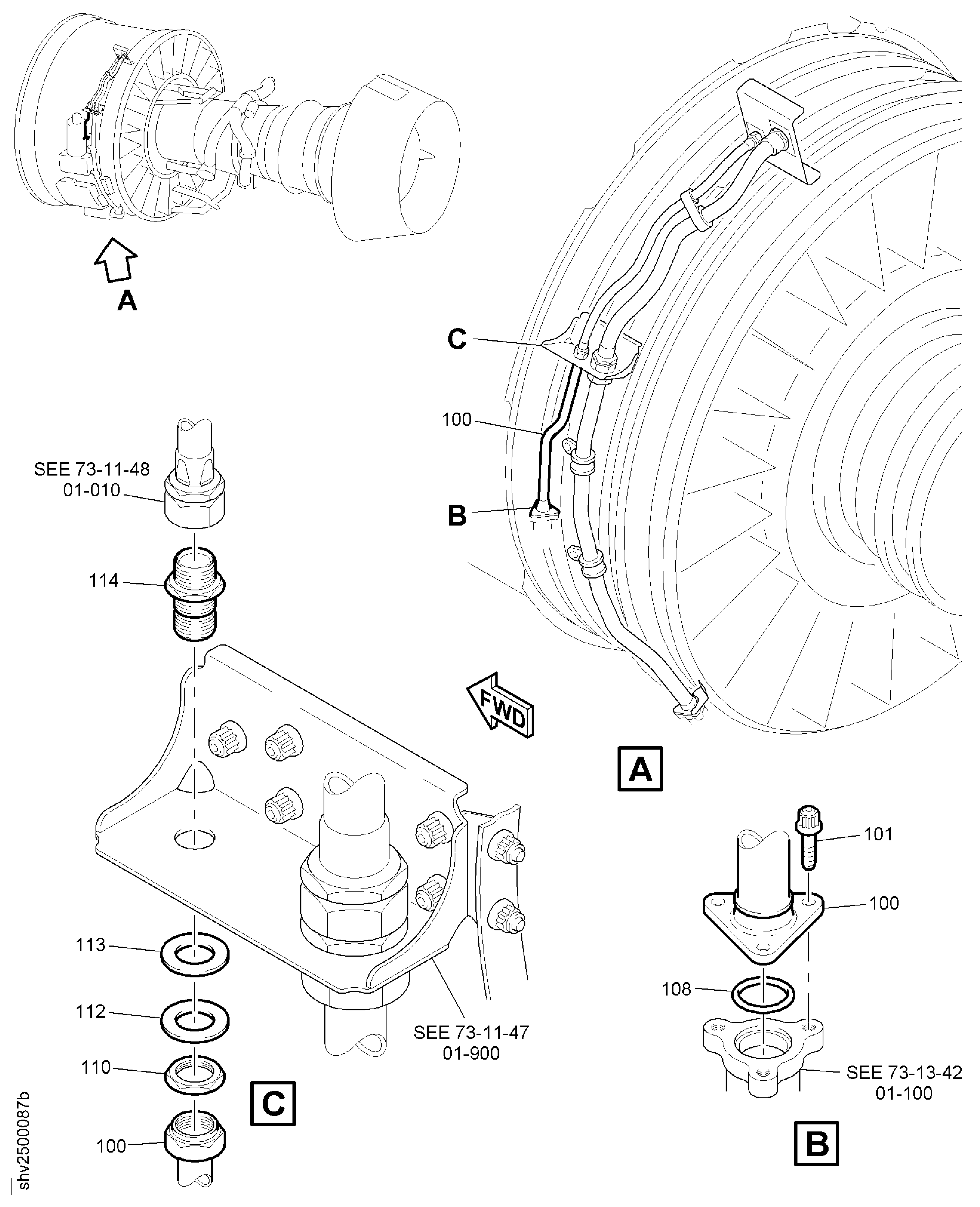

Figure: FUEL SYSTEM TUBES (RIGID)-POWER PLANT

TUBES FUEL RIGID

Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:51563
Enterprise Name:ROHR INC, A COLLINS AEROSPACE COMPANY
BU Name:ROHR INC, A COLLINS AEROSPACE COMPANY
Street:850 LAGOON DRIVE
City:CHULA VISTA
State:CA
Zip Code:91910-2098
Country:USA
Phone Number:1-619-691-2089
Fax Number:1-619-691-6195
Manufacturer Code:96906
Enterprise Name:MILITARY STANDARDS MANUAL 4120 3-M
BU Name:MILITARY STANDARDS MANUAL 4120 3-M
Street:NONE
City:NONE
Country:USA
Phone Number:NONE
Manufacturer Code:U1653
Enterprise Name:Society Of British Aerospace Companies, LTD.
Part Number:4W0169
Part Name:BOLT, MACHINE DOUBLE HEX - .250 DIA X .938
Manufacturer Code:0AM53
Part Number:740-5654-501
Part Name:TUBE - ASSY
Manufacturer Code:51563
Part Number:745-5004-501
Part Name:ARRANGEMENT - FUEL SYSTEM
Manufacturer Code:51563
Link not Found
Link not Found
Link not Found
Part Number:AS21515
Part Name:BOLT - 0.25 DIA X 0.938
Manufacturer Code:U1653
Part Number:AS43013-112
Part Name:PACKING
Manufacturer Code:U1653
Part Number:MS21924-8R
Part Name:UNION
Manufacturer Code:96906
Optional Parts
Part NumberPart NameManufacturer
MS21924-8SUNION96906
Part Number:MS21924-8S
Part Name:UNION
Manufacturer Code:96906
Optional Parts
Part NumberPart NameManufacturer
MS21924-8RUNION96906
