FUEL SYSTEM TUBES (RIGID)-POWER PLANT

DMC:V2500-A5-73-11-47-04A-941A-D|Issue No:002|Issue Date:2015-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig. Item		Part No.	Description	Effect/Model Applic.	UPA
04
000		B73114704	FUEL SYSTEM TUBES (RIGID)-POWER PLANT, PRE SBE73-0219	aa
000		SBE0219-01	FUEL SYSTEM TUBES (RIGID)-POWER PLANT, PRE SBE73-0235	ab
000		SBE0235-01	FUEL SYSTEM TUBES (RIGID)-POWER PLANT	ac
100100		6B1332	• TUBE - ASSY POST SBE73-0219	ac	1
100100A	X	6B1332	• TUBE - ASSY POST SBE73-0235	ac	1

136136		AS62406	• CLIP - 9.52 MM (0.375) U1653 POST SBE73-0219	ac	1
136136A	X	AS62406	• CLIP - 9.52 MM (0.375) U1653 POST SBE73-0235	ac	1
144144		AS62406	• CLIP - 9.52 MM (0.375) U1653 POST SBE73-0219	ac	1
144144A	X	AS62406	• CLIP - 9.52 MM (0.375) U1653 POST SBE73-0235	ac	1
152152		AS62406	• CLIP - 9.52 MM (0.375) U1653 POST SBE73-0219	ac	1
152152A	X	AS62406	• CLIP - 9.52 MM (0.375) U1653 POST SBE73-0235	ac	1

-200200		AS15777	• • WIRE - THRUST U1653 POST SBE73-0219	ac	1
-200200A	X	AS15777	• • WIRE - THRUST U1653 POST SBE73-0235	ac	1
-201201		AS15701	• • NUT - TUBE COUPLING U1653 POST SBE73-0219	ac	1
-201201A	X	AS15701	• • NUT - TUBE COUPLING U1653 POST SBE73-0235	ac	1
-202202		AS15768	• • FERRULE - ASSY U1653 POST SBE73-0219	ac	1
-202202A	X	AS15768	• • FERRULE - ASSY U1653 POST SBE73-0235	ac	1
-210210		JR16292	• • REDUCER - .375 0/D T0 .250 0/D POST SBE73-0219	ac	1
-210210A	X	JR16292	• • REDUCER - .375 0/D T0 .250 0/D POST SBE73-0235	ac	1
-214214		UP11121	• • ADAPTER - TUBE-CLIPPING, .375 DIA TUBE POST SBE73-0219	ac	1
-214214A	X	UP11121	• • ADAPTER - TUBE-CLIPPING, .375 DIA TUBE POST SBE73-0235	ac	1
-225225		K18207	• • REDUCER POST SBE73-0219	ac	1
-225225A	X	K18207	• • REDUCER POST SBE73-0235	ac	1
-240240		AS15781	• • WIRE - THRUST U1653 POST SBE73-0219	ac	1
-240240A	X	AS15781	• • WIRE - THRUST U1653 POST SBE73-0235	ac	1
-241241		AS15705	• • NUT - TUBE COUPLING U1653 POST SBE73-0219	ac	1
-241241A	X	AS15705	• • NUT - TUBE COUPLING U1653 POST SBE73-0235	ac	1
-242242		AS15730	• • FERRULE - WELDING TUBE U1653 POST SBE73-0219	ac	1
-242242A	X	AS15730	• • FERRULE - WELDING TUBE U1653 POST SBE73-0235	ac	1
485485		70100-1-6	• VALVE - PRESSURE RAISING 02697 POST SBE73-0219	ab-ac	1
500500		6B1353	• TUBE - ASSY POST SBE73-0219	ac	1
500500A	X	6B1353	• TUBE - ASSY POST SBE73-0235	ac	1

544544		AS62406	• CLIP - 9.52 MM (0.375) U1653 POST SBE73-0219	ac	1
544544A	X	AS62406	• CLIP - 9.52 MM (0.375) U1653 POST SBE73-0235	ac	1
552552		AS62406	• CLIP - 9.52 MM (0.375) U1653 POST SBE73-0219	ac	1
552552A	X	AS62406	• CLIP - 9.52 MM (0.375) U1653 POST SBE73-0235	ac	1
560560		AS62406	• CLIP - 9.52 MM (0.375) U1653 POST SBE73-0219	ac	1
560560A	X	AS62406	• CLIP - 9.52 MM (0.375) U1653 POST SBE73-0235	ac	1

-600600		AS15779	• • WIRE - THRUST U1653 POST SBE73-0219	ac	1
-600600A	X	AS15779	• • WIRE - THRUST U1653 POST SBE73-0235	ac	1
-601601		AS15703	• • NUT - TUBE COUPLING U1653 POST SBE73-0219	ab-ac	1
-601601A	X	AS15703	• • NUT - TUBE COUPLING U1653 POST SBE73-0235	ac	1
-602602		AS15726	• • FERRULE U1653 POST SBE73-0219	ac	1
-602602A	X	AS15726	• • FERRULE U1653 POST SBE73-0235	ac	1
614614		UP11121	• • ADAPTER - TUBE-CLIPPING, .375 DIA TUBE POST SBE73-0219	ab-ac	1
614614A	X	UP11121	• • ADAPTER - TUBE-CLIPPING, .375 DIA TUBE POST SBE73-0235	ac	1
-640640		AS15779	• • WIRE - THRUST U1653 POST SBE73-0219	ac	1
-640640A	X	AS15779	• • WIRE - THRUST U1653 POST SBE73-0235	ac	1
-641641		AS15703	• • NUT - TUBE COUPLING U1653 POST SBE73-0219	ac	1
-641641A	X	AS15703	• • NUT - TUBE COUPLING U1653 POST SBE73-0235	ac	1
-642642		AS15726	• • FERRULE U1653 POST SBE73-0219	ac	1
-642642A	X	AS15726	• • FERRULE U1653 POST SBE73-0235	ac	1
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

Manufacturer Code:	02697
Enterprise Name:	PARKER HANNIFIN CORP
BU Name:	PARKER HANNIFIN CORP
Department:	O-RING DIVISION
Street:	2360 PALUMBO DR
City:	LEXINGTON
State:	KY
Zip Code:	40509
Country:	UNITED STATES OF AMERICA
Phone Number:	1-606-269-2351
Fax Number:	1-606-268-3816
Internet:	www.parker.com

Manufacturer Code:	0AM53
Enterprise Name:	IAE INTERNATIONAL AERO ENGINES AG
BU Name:	NULL
Building:	SUITE 400
Street:	628 HEBRON AVENUE
City:	GLASTONBURY
State:	CT
Zip Code:	06033
Country:	USA

Manufacturer Code:	U1653
Enterprise Name:	Society Of British Aerospace Companies, LTD.

Part Number:	6B1332
Part Name:	TUBE - ASSEMBLY OF
Manufacturer Code:	0AM53

Part Number:	6B1353
Part Name:	TUBE - ASSEMBLY OF
Manufacturer Code:	0AM53

FUEL SYSTEM TUBES (RIGID)-POWER PLANT

Export Control

Copyright

Applicability

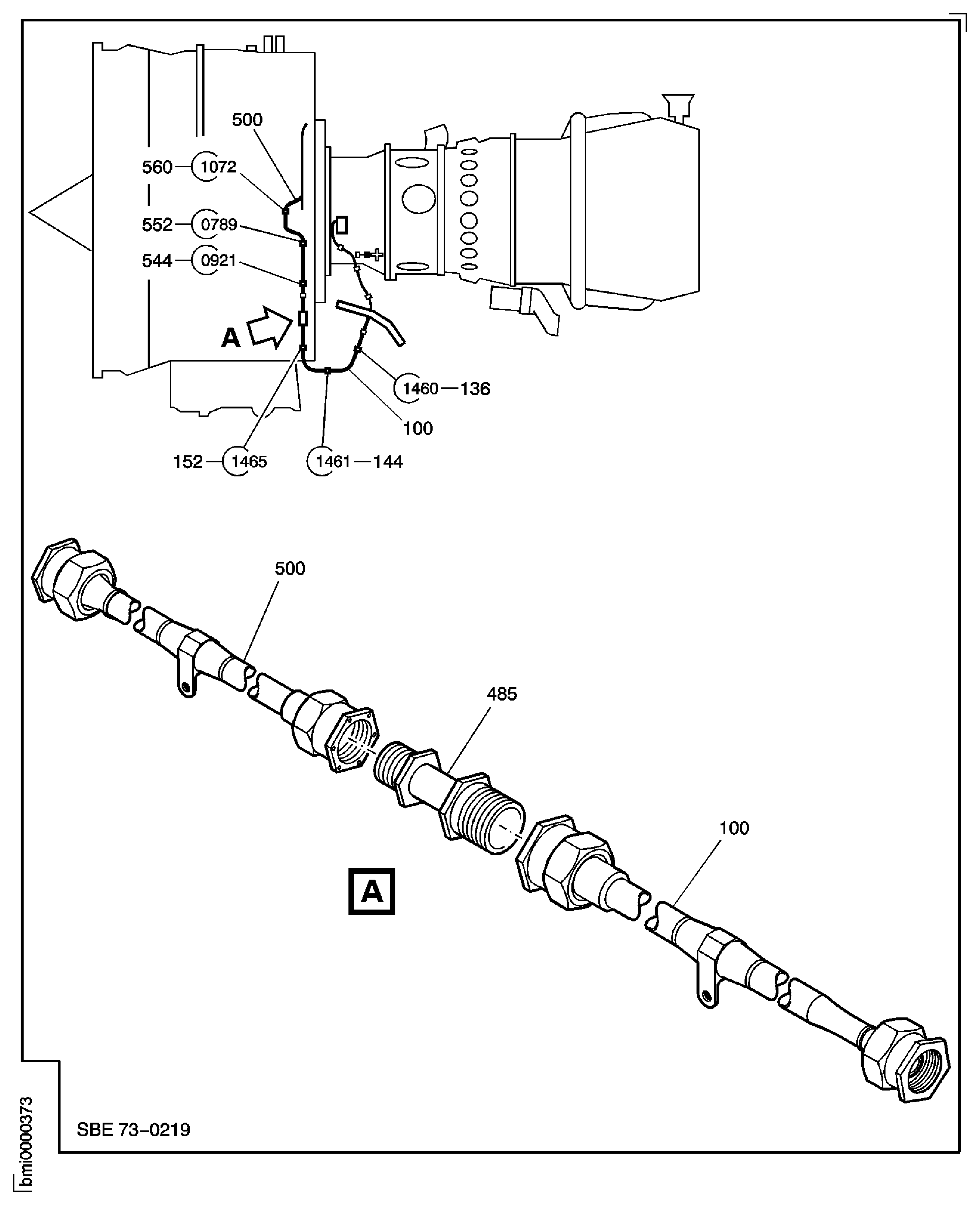

Figure: FUEL SYSTEM TUBES (RIGID)-POWER PLANT
