DMC:V2500-A5-73-11-49-03A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 03 | ||||
| - | B73114903 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE73-0061 | aa | |
| - | SBE0061-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE73-0084 | ab | |
| - | SBE0084-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE | ac | |
| 085 | 5W8204 | • HOUSING, SEAL | aa-ac/01 | 1 |
| 098 | AS43013-214 | • RING - SEALING TOROIDAL, 24,99MM I/D X 3,53MM U1653 | aa-ac/01 | 2 |
| 100 | 6A5342 | • TUBE, FUEL, DISCON TO IDG, ASSEMBLY OF | aa-ac/01 | 1 |
| 114 | 4W0190 | • BOLT - .250 DIA X 2.500 | aa-ac/01 | 3 |
| 116 | AS43013-120 | • RING - SEALING TOROIDAL U1653 | aa-ac/01 | 1 |
| 180 | 6A5752 | • BRACKET | aa-ac/01 | 1 |
| 200 | AS15785 | • • WIRE, THRUST U1653 | aa-ac/01 | 1 |
| 201 | AS15709 | • • NUT, TUBE COUPLING U1653 | aa-ac/01 | 1 |
| 202 | K17440 | • • ADAPTER, ELBOW | aa-ac/01 | 1 |
| 238 | 5W8203 | • • FERRULE, RETAINER | aa-ac/01 | 1 |
| 242 | 5W8455 | • • FERRULE | aa-ac/01 | 1 |
| 470 | 5W0041 | • BRACKET | aa-ac/01 | 1 |
| 485 | 5W8201 | • HOUSING, SEAL | aa-ac/01 | 1 |
| 498 | AS43013-214 | • RING - SEALING TOROIDAL, 24,99MM I/D X 3,53MM U1653 | aa-ac/01 | 2 |
| 500 | 2A0650 | • TUBE, FUEL, ASSEMBLY PRE SBE73-0061 | aa/02 | 1 |
| 500A | 6A5343 | • TUBE, LP FUEL, ID GENERATOR FCOC TO FUEL DIVERTER POST SBE73-0061 PRE SBE73-0084 | ab/02 | 1 |
| 500B | 6A6484 | • TUBE, ASSEMBLY OF POST SBE73-0084 | ac/02 | 1 |
| 500C | 6A6484 | • TUBE, ASSEMBLY OF | aa-ac/03 | 1 |
| 506 | 4W0170 | • BOLT - .250 DIA X 1.000 | aa-ac/01 | 3 |
| 508 | AS43013-120 | • RING - SEALING TOROIDAL U1653 | aa-ac/01 | 2 |
| 514 | AS21040 | • BOLT - .250 DIA X 2.500 U1653 | aa-ac/01 | 2 |
| 602 | 5W8073 | • • ADAPTER, STRAIGHT PRE SBE73-0084 | aa-ab/02 | 1 |
| 602A | AS27437 | • • ADAPTOR, STRAIGHT TUBE U1653 POST SBE73-0084 | ac/02 | 1 |
| 602B | AS27437 | • • ADAPTOR, STRAIGHT TUBE U1653 | aa-ac/03 | 1 |
| 638 | 5W8200 | • • FERRULE, RETAINER | aa-ac/01 | 1 |
| 642 | 5W1579 | • • FERRULE PRE SBE73-0084 | aa-ab/02 | 1 |
| 642A | 5W8455 | • • FERRULE POST SBE73-0084 | ac/02 | 1 |
| 642B | 5W8455 | • • FERRULE | aa-ac/03 | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

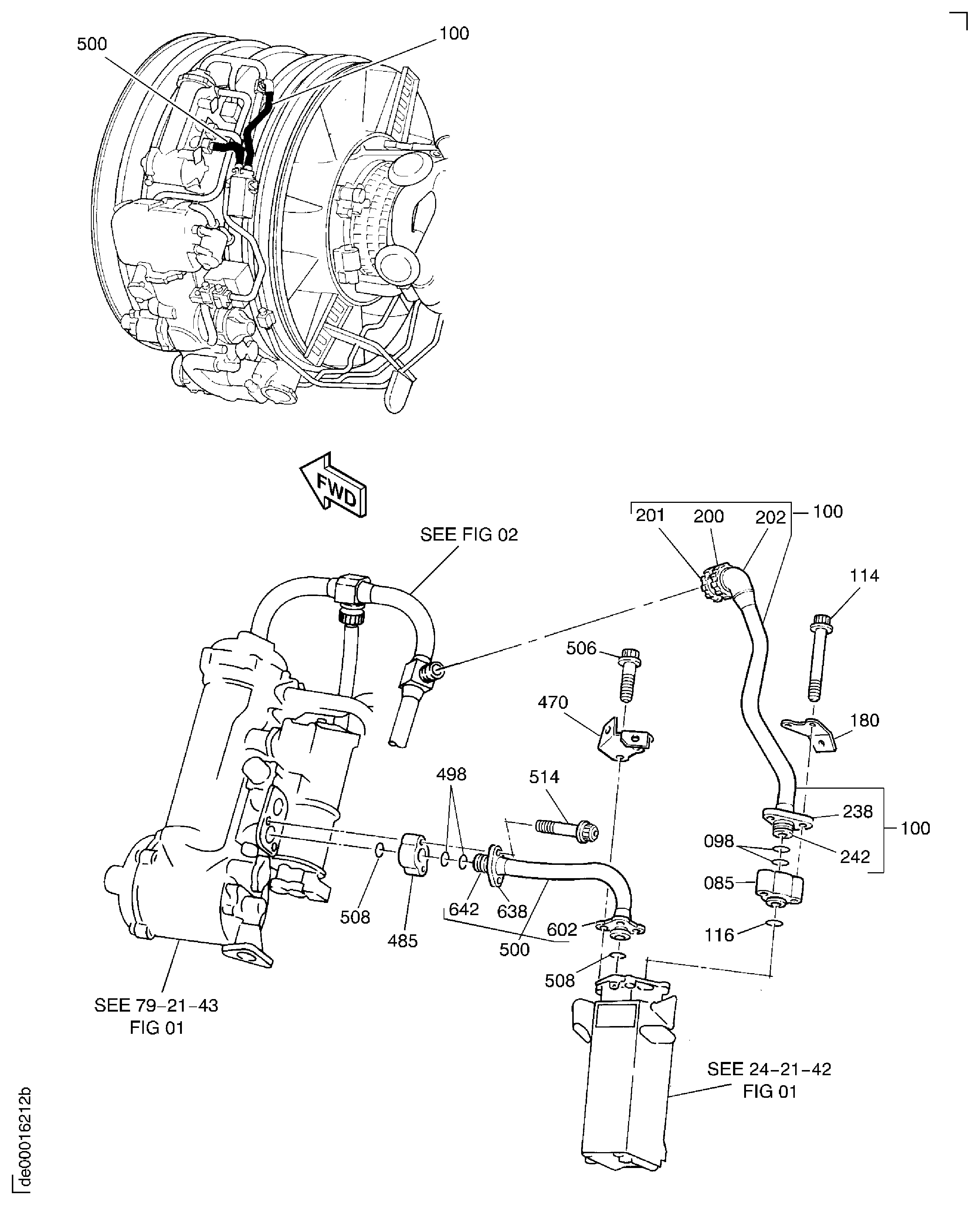

Figure: Control Fuel Tubes
Control Fuel Tubes
