DMC:V2500-A5-73-11-49-07A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 07 | ||||
| B73114907 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE | aa | ||
| 070 | 6A4593 | • BRACKET | aa | 1 |
| 100 | 6A5004 | • TUBE - A/O | aa | 1 |
| 106 | 4W0166 | • BOLT - .250 DIA X .750 | aa | 6 |
| 108 | AS43013-118 | • RING - 21.89MM I/D X 2.62MM U1653 | aa | 1 |
| 114 | AS43013-116 | • RING - SEALING TOROIDAL, 18.72 MM I/DIA X 2,62 U1653 | aa | 1 |
| 125 | AS20908 | • BOLT - .190 DIA X .500 U1653 | aa | 1 |
| 126 | K8831 | • WASHER - .190 DIA X 0,51 THK | aa | 1 |
| 128 | 400WSS12 | • CLIP 83930 | aa | 1 |
| 132 | 4W0043 | • NUT - .190 DIA | aa | 1 |
| 202 | UP60491 | • • ADAPTOR | aa | 1 |
| 218 | AS27429 | • • ADAPTOR - STRAIGHT TUBE U1653 | aa | 1 |
| 470 | 6A4592 | • BRACKET | aa | 1 |
| 500 | 6A5025 | • TUBE - A/O | aa | 1 |
| 506 | 4W0166 | • BOLT - .250 DIA X .750 | aa | 3 |
| 508 | AS43013-116 | • RING - 18.72 MM I/DIA X 2,62 U1653 | aa | 1 |
| 602 | UP60515 | • • ADAPTOR | aa | 1 |
| 642 | AS15815 | • • ADAPTOR - STRAIGHT TUBE U1653 | aa | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

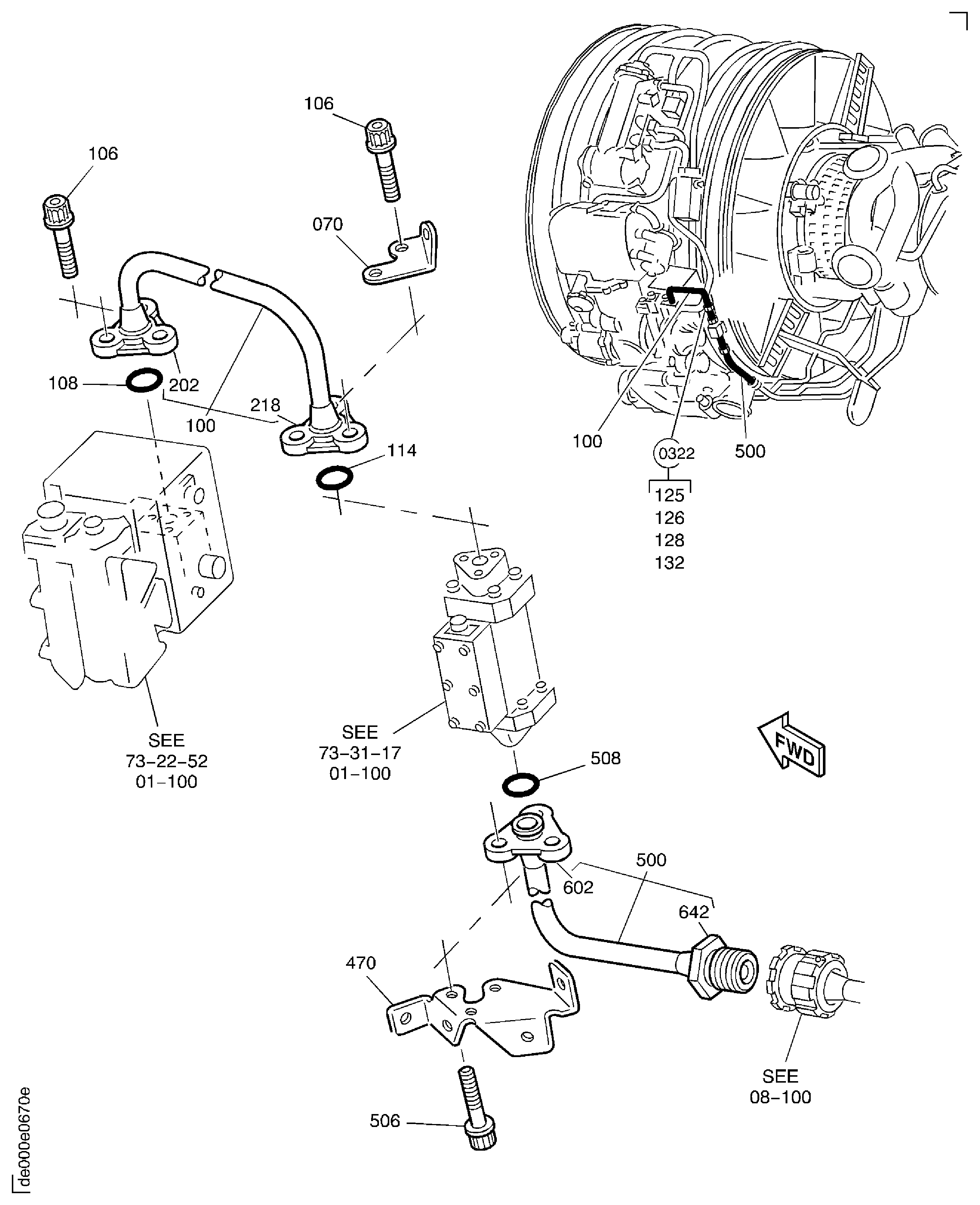

Figure: ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE
FUEL TUBES ENGINE
