DMC:V2500-A5-73-11-49-20A-941A-DIssue No:002.00Issue Date:2015-08-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 20 | ||||
| - | B73114920 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE73-0049 | aa | |
| - | SBE0049-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE73-0061 | ab | |
| - | SBE0061-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE79-0047 | ac | |
| - | SBE0047-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE70-0536 | ad | |
| - | SBE0536-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE79-0088 | ae | |
| - | SBE0088-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE71-0288 | af | |
| - | SBE0288-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE73-0219 | ag | |
| - | SBE0219-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE73-0235 | ah | |
| - | SBE0235-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE | ai | |
| 100 | 5R8117 | • TUBE - BIFURICATION PANEL TO FMU, ASSEMBLY OF | aa-ah/01 | 1 |
| 102 | 4W0002 | • NUT - .250 DIA | aa-ah/01 | 2 |
| 106 | 4W0163 | • BOLT - .250 DIA X .562 | aa-ah/01 | 2 |
| 110 | MS9966-06 | • PACKING, PREFORMED 96906 | aa-ah/01 | 1 |
| 125 | 4W0112 | • BOLT - .190 DIA X 1.062 PRE SBE79-0088 | aa-ae/01 | 1 |
| 126 | 5W1086 | • WASHER PRE SBE79-0088 | aa-ae/01 | 1 |
| 128 | 400WSS8 | • CLIP 83930 PRE SBE79-0088 | aa-ae/01 | 1 |
| 130 | 5W1031 | • SPACER - (15MM) PRE SBE70-0536 | aa-ae/01 | 1 |
| 130A | UP10480 | • SPACER - 15MM ALT 5W1031 POST SBE70-0536 PRE SBE79-0088 | aa-ae/01 | 1 |
| -130B | 5W1031 | • SPACER - (15MM) POST SBE70-0536 PRE SBE79-0088 | aa-ae/01 | REF |
| 132 | 4W0001 | • NUT - .190 DIA PRE SBE79-0088 | aa-ae/01 | 1 |
| 136 | 400WSS8 | • CLIP 83930 PRE SBE73-0061 | aa-ab/02 | 1 |
| 136A | AS62408 | • CLIP, 12,70 MM (0.500) U1653 POST SBE73-0061 | aa-ah/01 | 1 |
| 141 | 4W0115 | • BOLT - .190 DIA X 1.250 PRE SBE79-0088 | aa-ae/01 | 1 |
| 142 | 5W1086 | • WASHER PRE SBE79-0088 | aa-ae/01 | 1 |
| 144 | 400WSS8 | • CLIP 83930 PRE SBE79-0088 | aa-ae/01 | 1 |
| 146 | 5W1032 | • SPACER - (20MM) PRE SBE70–0536 | aa-ae/01 | 1 |
| 146A | UP10481 | • SPACER - 20MM POST SBE70-0536 PRE SBE79–0088 | aa-ae/01 | 1 |
| -146B | 5W1032 | • SPACER - (20MM) PRE SBE79-0088 | aa-ae/01 | REF |
| 148 | 4W0001 | • NUT - .190 DIA PRE SBE79-0088 | aa-ae/01 | 1 |
| 149 | 4W0103 | • BOLT - .190 DIA X .500 PRE SBE75-0081 | *****/01 | 1 |
| 150 | 5W1086 | • WASHER PRE SBE75-0081 | *****/01 | 2 |
| 152 | 400WSS8 | • CLIP 83930 PRE SBE75-0081 | *****/01 | 1 |
| 156 | 4W0001 | • NUT - .190 DIA PRE SBE75-0081 | *****/01 | 1 |
| 157 | 4W0102 | • BOLT - .190 DIA X .438 POST SBE79-0088 PRE SBE73-0219 | af-ah/01 | 1 |
| 157A | 4W0104 | • BOLT - .190 DIA X .562 POST SBE73-0219 | af-ah/01 | 1 |
| 157B | 4W0102 | • BOLT - .190 DIA X .438 PRE SBE73-0235 | aa-ah/01 | 1 |
| 157C | 4W0102 | • BOLT - .190 DIA X .438 POST SBE73-0235 | ai/01 | 1 |
| 158 | K8831 | • WASHER - .190 DIA X 0.51 THK POST SBE79-0088 PRE SBE73-0219 | af-ag/01 | 1 |
| 158A | K8831 | • WASHER - .190 DIA X 0.51 THK POST SBE73-0219 PRE SBE73-0235 | ah/01 | 1 |
| 158B | K8831 | • WASHER - .190 DIA X 0.51 THK POST SBE73-0235 | ai/01 | 1 |
| 160 | AS62408 | • CLIP, 12,70 MM (0.500) U1653 POST SBE79-0088 | af-ah/01 | 1 |
| 164 | 4W0001 | • NUT - .190 DIA POST SBE79-0088 | af-ah/01 | 1 |
| 176 | 400WSS8 | • CLIP 83930 | aa-ah/01 | 1 |
| 202 | 5W8230 | • • ADAPTER, UNION FLANGED | aa-ah/01 | 1 |
| 218 | 5W8123 | • • CONNECTOR, TEE | aa-ah/01 | 1 |
| 242 | AS15810 | • • ADAPTER, STRAIGHT TUBE U1653 | aa-ah/01 | 1 |
| 500 | 6A5007 | • TUBE - SPLIT CONNECTOR TO FMU, ASSEMBLY OF PRE SBE73-0049 | aa/02 | 1 |
| 500A | 6A6017 | • TUBE - SPLIT CONNECTOR TO FMU, ASSEMBLY OF POST SBE73-0049 | ab-ah/01 | 1 |
| 514 | 4W0169 | • BOLT - .250 DIA X .938 | aa-ah/01 | 3 |
| 516 | AS43013-112 | • RING - SEALING TOROIDAL U1653 | aa-ah/01 | 1 |
| 576 | 400WSS8 | • CLIP 83930 POST SBE79-0047 PRE SBE79-0088 | ad-ae/01 | 1 |
| 580 | 400WSS8 | • CLIP 83930 | aa-ah/01 | 1 |
| 582 | AS20910 | • BOLT - .190 DIA X .625 U1653 PRE SBE73-0049 | aa/02 | 1 |
| 582A | 4W0119 | • BOLT - .190 DIA X 1.500 POST SBE73-0049 PRE SBE71-0288 | ab-af/01 | 1 |
| 582B | 4W0121 | • BOLT - .190 DIA X 1.625 POST SBE71-0288 | ag-ah/01 | 1 |
| 584 | K8831 | • WASHER - .190 DIA X 0.51 THK | aa-ah/01 | 1 |
| 586 | UP10482 | • SPACER, 25 MM POST SBE73-0049 | ab-ah/01 | 1 |
| 588 | 4W0001 | • NUT - .190 DIA Optional Part AS20624 | aa-ah/01 | 1 |
| 590 | 400WSS8 | • CLIP 83930 | aa-ah/01 | 1 |
| 592 | AS20918 | • BOLT - .190 DIA X 1.125 U1653 PRE SBE73-0049 | aa/02 | 1 |
| 592A | 4W0116 | • BOLT - .190 DIA X 1.312 POST SBE73-0049 | ab-ah/01 | 1 |
| 594 | K8831 | • WASHER - .190 DIA X 0.51 THK | aa-ah/01 | 1 |
| 595 | UP10478 | • SPACER, 5 MM POST SBE73–0049 | ab-ah/01 | 1 |
| 596 | UP60190 | • SPACER | aa-ah/01 | 1 |
| 598 | 4W0043 | • NUT - .190 DIA Optional Part AS41104 | aa-ah/01 | 1 |
| 600 | AS15781 | • • WIRE, THRUST U1653 | aa-ah/01 | 1 |
| 601 | AS15705 | • • NUT, TUBE COUPLING U1653 | aa-ah/01 | 1 |
| 602 | AS15730 | • • FERRULE, WELDING TUBE U1653 | aa-ah/01 | 1 |
| 642 | AS27666 | • • ADAPTER, ELBOW TUBE U1653 | aa-ah/01 | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

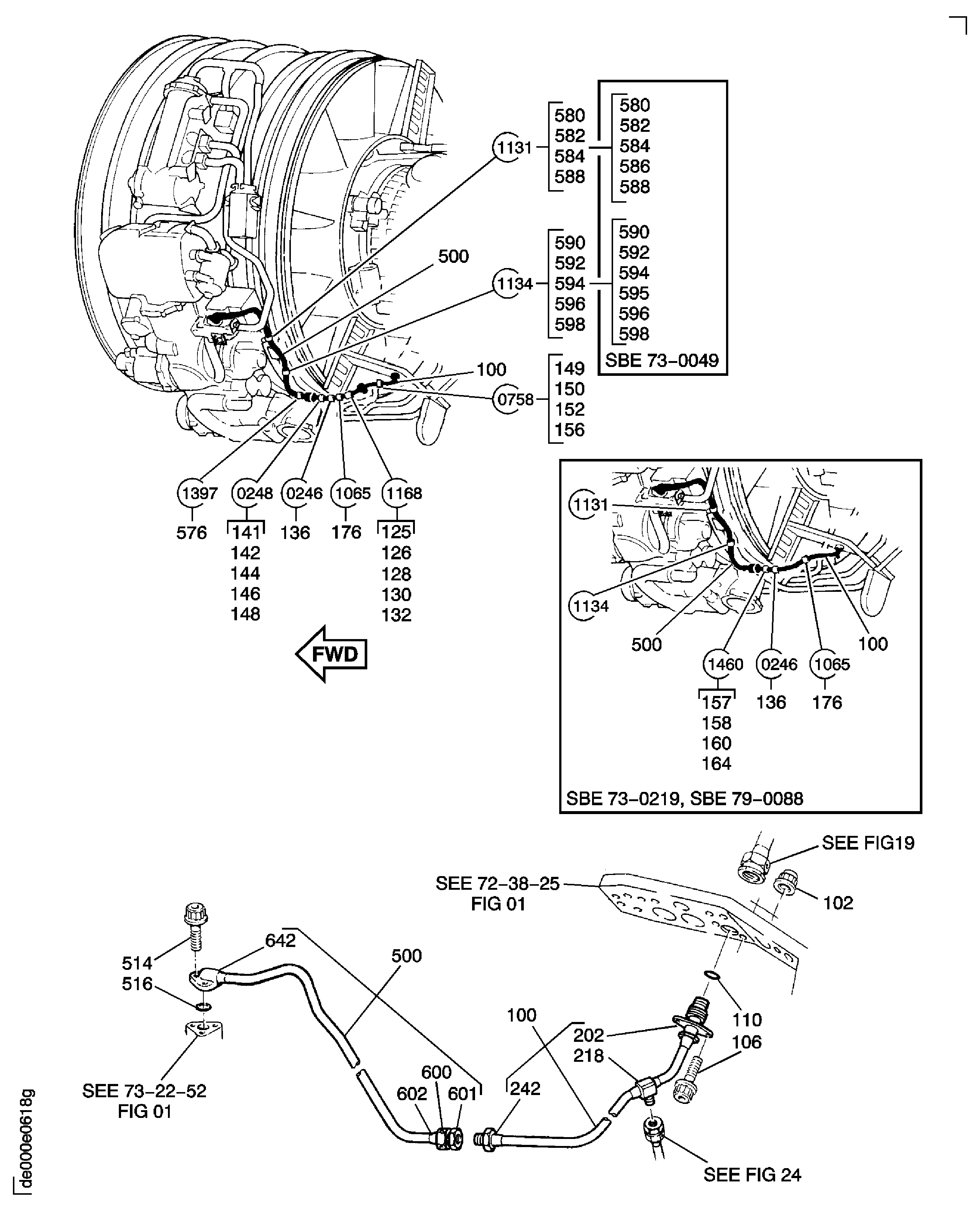

Figure: Control Fuel Tubes
Control Fuel Tubes
