DMC:V2500-A5-73-22-49-09A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 09 | ||||
| - | B73224909 | ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES, PRE SBE72-0189 | aa | |
| - | SBE0189-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES, PRE SBE79-0088 | ab | |
| - | SBE0088-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES | ac | |
| 100 | 6A2133 | • TUBE, AIR, ASSEMBLY OF | aa-ac/01 | 1 |
| 152 | 400WSS4 | • CLIP 83930 | aa-ac/01 | 1 |
| 200 | AS15777 | • WIRE - THRUST U1653 | aa-ac/01 | 1 |
| 201 | AS15701 | • NUT - TUBE COUPLING U1653 | aa-ac/01 | 1 |
| 202 | LK56511 | • FERRULE, ASSEMBLY | aa-ac/01 | 1 |
| 214 | LK39602 | • CLIP | aa-ac/01 | 1 |
| 242 | AS15802 | • ADAPTOR U1653 | aa-ac/01 | 1 |
| 500 | 6A2122 | • TUBE, AIR, ASSEMBLY OF PRE SBE72-0189 | aa/01 | 1 |
| 500A | 6A6007 | • TUBE, AIR, P2.5 TO EEC, ASSEMBLY OF POST SBE72-0189 | ab-ac/01 | 1 |
| 500B | 6A6007 | • TUBE, AIR, P2.5 TO EEC, ASSEMBLY OF POST SBE79-0088 | ac/02 | 1 |
| 500C | 6A6007 | • TUBE, AIR, P2.5 TO EEC, ASSEMBLY OF | aa-ac/03 | 1 |
| 544 | 400WSS4 | • CLIP 83930 PRE SBE72-0189 | aa/01 | 1 |
| 552 | 400WSS4 | • CLIP 83930 PRE SBE72-0189 | aa/01 | 1 |
| 600 | AS15777 | • WIRE - THRUST U1653 | aa-ac/01 | 1 |
| 601 | AS15701 | • NUT - TUBE COUPLING U1653 | aa-ac/01 | 1 |
| 602 | AS15768 | • FERRULE - ASSY U1653 | aa-ac/01 | 1 |
| 614 | UP11152 | • BRACKET - INTER TUBE SUPPORT POST SBE72-0189 | ab-ac/01 | 4 |
| 640 | AS15777 | • WIRE - THRUST U1653 POST SBE72-0189 | ab-ac/02 | 1 |
| 641 | AS15701 | • NUT - TUBE COUPLING U1653 POST SBE72-0189 | ab-ac/02 | 1 |
| 642 | AS15768 | • FERRULE - ASSY U1653 POST SBE72-0189 | ab-ac/02 | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

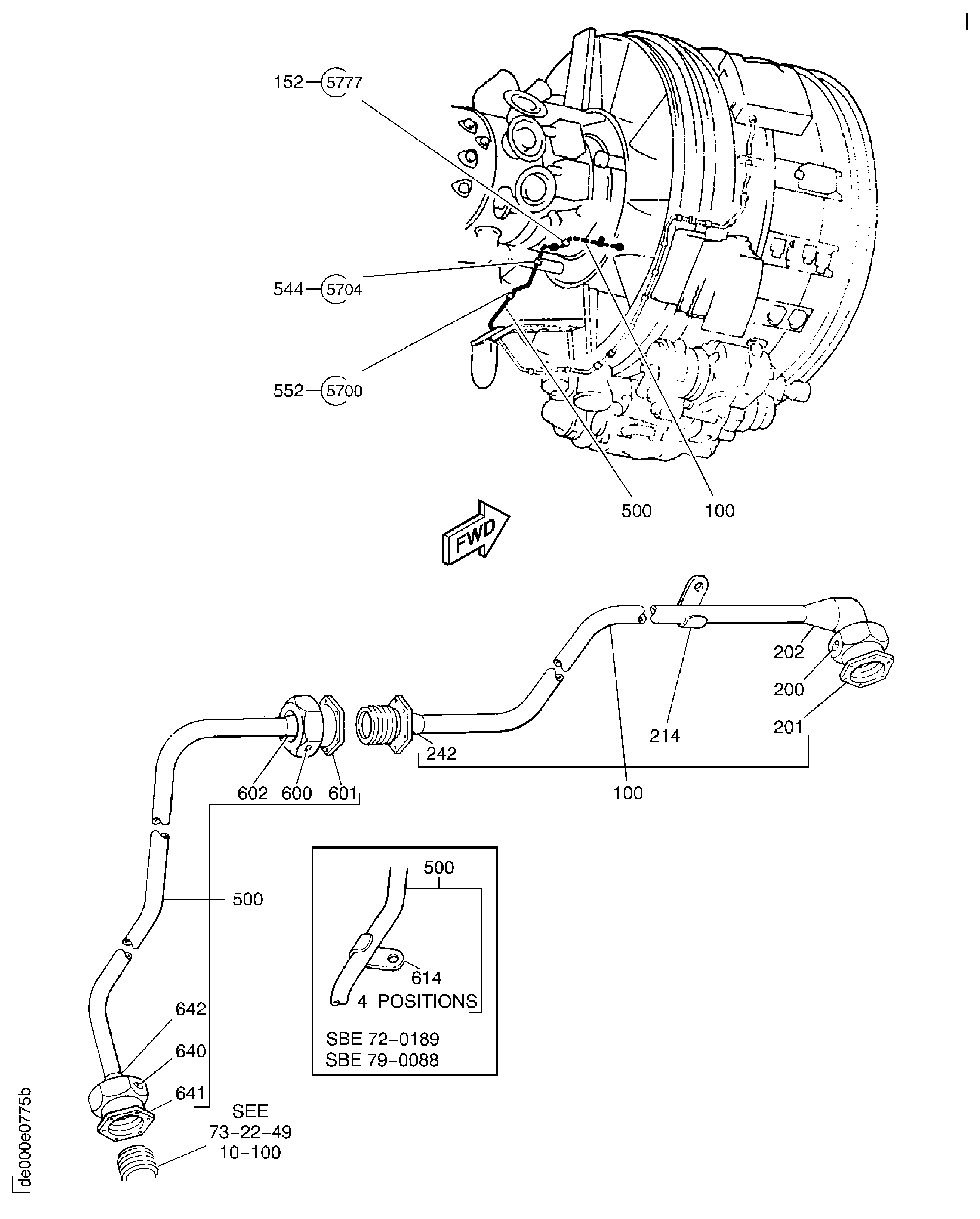

Figure: Fuel System Air Tubes
Fuel System Air Tubes
