DMC:V2500-A5-73-31-17-01A-941A-DIssue No:002.00Issue Date:2014-11-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B73311701 | ENGINE FUEL AND CONTROL-FUEL FLOWMETER, PRE SBE73-0113 | aa | ||
| SBE0113-01 | ENGINE FUEL AND CONTROL-FUEL FLOWMETER, PRE SBE73-0234 | ab | ||
| SBE0234-01 | ENGINE FUEL AND CONTROL-FUEL FLOWMETER | ac | ||
| 100 | 9-217-46 | • TRNSMTTR - FUEL FLOW 08748 PRE SBE73-0113 | aa | 1 |
| 100A | 9-217-59 | • TRNSMTTR 08748 POST SBE73-0113 PRE SBE73-0234 | ab | 1 |
| 100B | 9-217-94 | • TRANSMITTER 08748 POST SBE73-0234 | ac | 1 |
| -300 | AS43013-116 | • RING - SEALING TOROIDAL, 18.72 MM I/DIA X 2,62 U1653 (SEE 73-11-49-07-114) | aa-ac | REF |
| -310 | AS43013-116 | • RING - SEALING TOROIDAL, 18.72 MM I/DIA X 2,62 U1653 (SEE 73-11-49-07-508) | aa-ac | REF |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

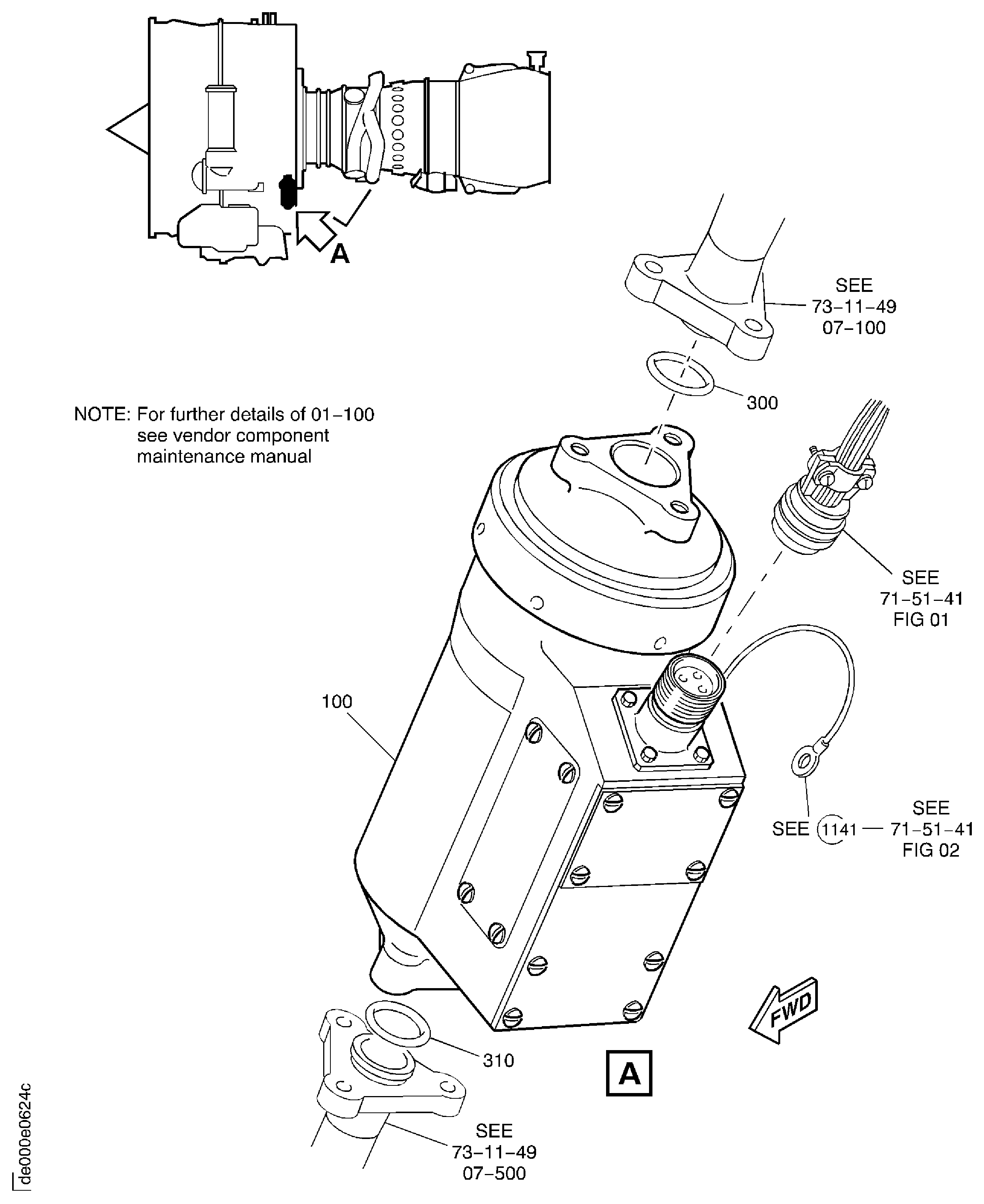

Figure: ENGINE FUEL AND CONTROL-FUEL FLOWMETER
FUEL FLOW TRANSMITTER
