DMC:V2500-A5-73-35-15-01A-941A-DIssue No:004.00Issue Date:2018-11-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B73351501 | FUEL TEMPERATURE THERMOCOUPLE, PRE SBE73-0071 | aa | ||
| SBE0071-01 | FUEL TEMPERATURE THERMOCOUPLE, PRE SBE70-0334 | ab | ||
| SBE0334-01 | FUEL TEMPERATURE THERMOCOUPLE, PRE SBE73-0142 | ac | ||
| SBE0142-01 | FUEL TEMPERATURE THERMOCOUPLE | ad | ||
| SBE0242-01 | FUEL TEMPERATURE THERMOCOUPLE | ae | ||
| 100 | 73984200 | • THERMOCOUPLE - FUEL TEMPERATURE (REF NO 5U0029) PRE SBE73-0071 | aa/01 | 1 |
| 100A | HAD22308 | • THERMCPL - FUEL TEMP 00060 (REF NO 5U0074) POST SBE73-0071 PRE SBE73-0142 PRE SBE73-0242 | ab-ac/02 | 1 |
| 100B | 73983600 | • THERMOCOUPLE - FUEL TEMPERATURE (REF NO 5U0025) POST SBE70-0334 | ac-ae/01 | 1 |
| 100C | 22912-000 | • THERMOCOUPLE - FUEL TEMP 00060 PRE SBE73-0242 | aa-ad/02 | 1 |
| 100D | 22912-200 | • THERMOCOUPLE - FUEL TEMP 00060 POST SBE73-0242 | ae/02 | 1 |
| 110 | 4W0169 | • BOLT, MACHINE DOUBLE HEX - .250 DIA X .938 | aa-ae/02 | 2 |
| 120 | AS43013-112 | • RING - 12.37 MM ID X 2.62 MM U1653 | aa-ae/02 | 1 |
| 130 | HDA13955 | • • NUT - SELF LOCKING, 0.164-32 UNJC 00060 POST SBE73-0071 | ab-ae/02 | 2 |
| 140 | HDA13956 | • • NUT - SELF LOCKING, 0.190-32 UNJS 00060 POST SBE73-0071 | ab-ae/02 | 2 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

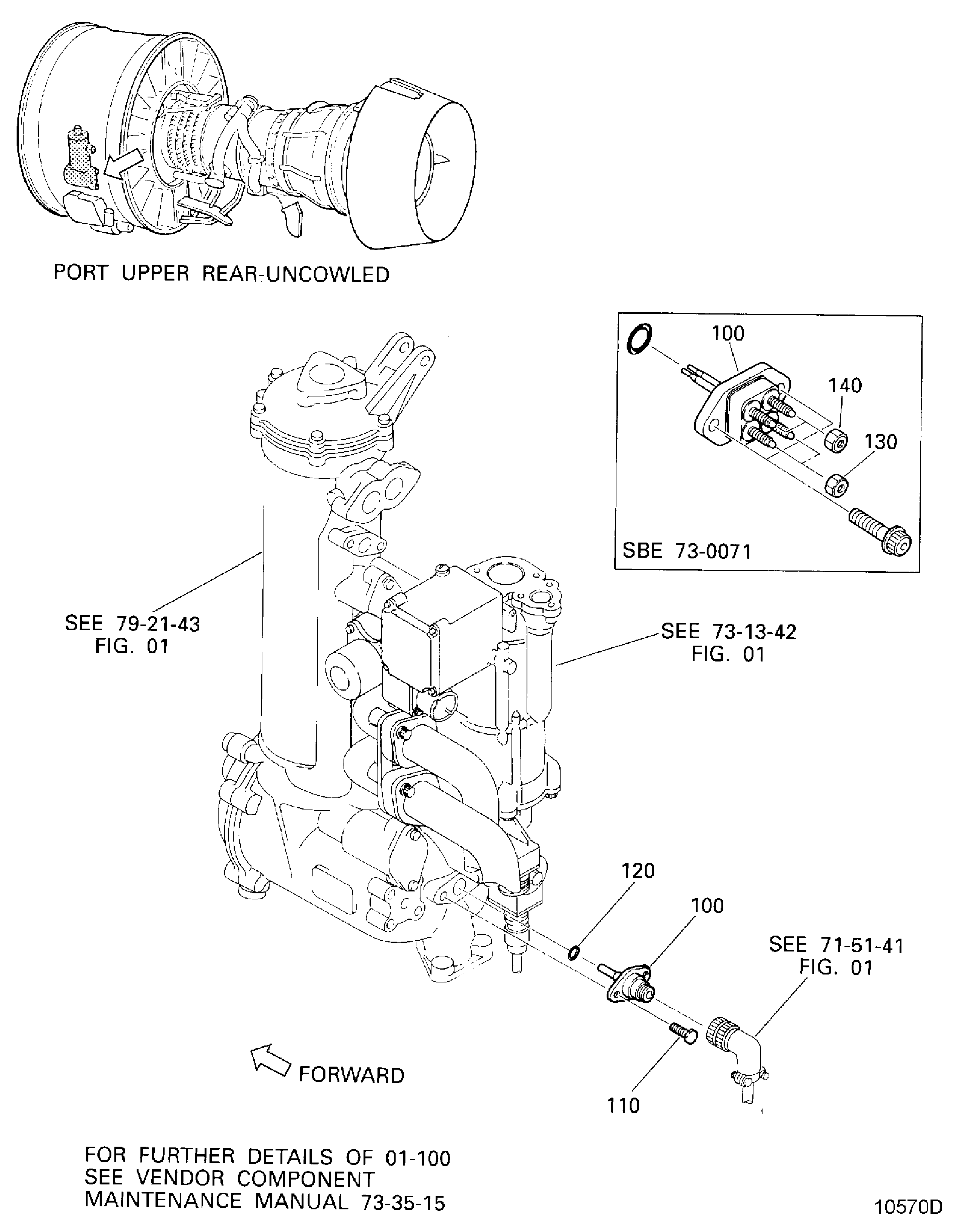

Figure: FUEL TEMPERATURE THERMOCOUPLE
FUEL TEMPERATURE THERMOCOUPLE
