DMC:V2500-A5-75-22-49-06A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 06 | ||||
| B75224906 | AIR-BEARING COMPARTMENT COOLING & SEALING TUBES, PRE SBE70-0536 | aa | ||
| SBE0536-01 | AIR-BEARING COMPARTMENT COOLING & SEALING TUBES, PRE SBE79-0088 | ab | ||
| SBE0088-01 | AIR-BEARING COMPARTMENT COOLING & SEALING TUBES, PRE SBE79-0088 | ac | ||
| SBE0088-02 | AIR-BEARING COMPARTMENT COOLING & SEALING TUBES | ad | ||
| 100 | 5A9357 | • TUBE - A/O AIR NO4 BRG SCAV/V PRE SBE79-0088 | aa-ac | 1 |
| 100A | 6A6228 | • TUBE - A/O POST SBE79-0088 | ad | 1 |
| 102 | 4W0002 | • NUT - .250 DIA | aa-ad | 2 |
| 106 | 4W0163 | • BOLT - .250 DIA X .562 | aa-ad | 2 |
| 133 | 4W0114 | • BOLT - .190 DIA X 1.188 PRE SBE79-0088 | aa-ac | 1 |
| 134 | 5W1086 | • WASHER PRE SBE79-0088 | aa-ac | 2 |
| 136 | 400WSS5 | • CLIP 83930 PRE SBE79-0088 | aa-ac | 1 |
| 138 | 5W1031 | • SPACER - (15MM) PRE SBE70-0536 | aa-ac | 1 |
| 138A | UP10480 | • SPACER - 15MM ALT 5W1031 POST SBE70-0536 PRE SBE79-0088 | aa-ac | 1 |
| -138B | 5W1031 | • SPACER - (15MM) POST SBE70-0536 PRE SBE79-0088 | aa-ac | REF |
| 140 | 4W0001 | • NUT - .190 DIA PRE SBE79-0088 | aa-ac | 1 |
| 165 | 4W0113 | • BOLT - .190 DIA X 1.125 POST SBE79-0088 | ad | 1 |
| 166 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE79-0088 | ad | 1 |
| 168 | AS62405 | • CLIP - 7.92MM (0.312) U1653 POST SBE79-0088 | ad | 1 |
| 170 | UP10480 | • SPACER - 15MM POST SBE79-0088 | ad | 1 |
| 172 | 4W0001 | • NUT - .190 DIA POST SBE79-0088 | ad | 1 |
| 176 | AS62405 | • CLIP - 7.92MM (0.312) U1653 POST SBE79-0088 | ad | 1 |
| 184 | AS62405 | • CLIP - 7.92MM (0.312) U1653 POST SBE79-0088 | ad | 1 |
| 192 | AS62405 | • CLIP - 7.92MM (0.312) U1653 POST SBE79-0088 | ad | 1 |
| 202 | 5W8020 | • • ADAPTOR - UNION FLANGED | aa-ad | 1 |
| 212 | 5W1060 | • • LUG - BRAZED PRE SBE79-0088 | aa-ab | 2 |
| 214 | UP11153 | • • BRACKET - INTER TUBE SUPPORT POST SBE79-0088 | ac-ad | 4 |
| 242 | AS15804 | • • ADAPTOR - STRAIGHT TUBE U1653 | aa-ad | 1 |
| 500 | 5A9090 | • TUBE - A/O AIR NO4 BRG SCAV/V PRE SBE79-0088 | aa-ac | 1 |
| 528 | 400WSS5 | • CLIP 83930 PRE SBE79-0088 | aa-ac | 1 |
| 536 | 400WSS5 | • CLIP 83930 PRE SBE79-0088 | aa-ac | 1 |
| 600 | AS15778 | • • WIRE - THRUST U1653 PRE SBE79-0088 | aa-ab | 1 |
| 601 | AS15702 | • • NUT - TUBE COUPLING U1653 PRE SBE79-0088 | aa-ab | 1 |
| 602 | AS15724 | • • FERRULE - WELDING TUBE U1653 PRE SBE79-0088 | aa-ab | 1 |
| 642 | AS15804 | • • ADAPTOR - STRAIGHT TUBE U1653 PRE SBE79-0088 | aa-ab | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

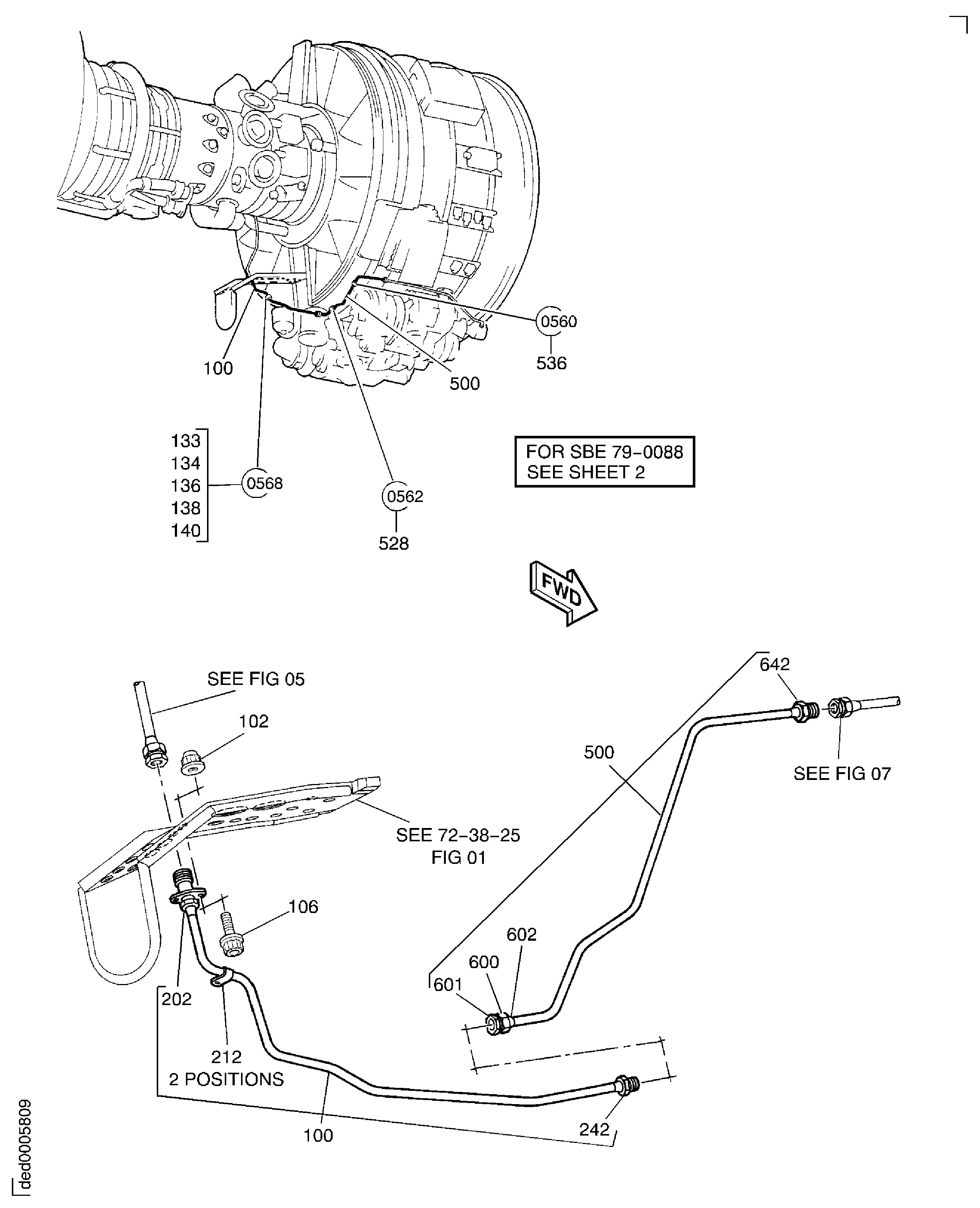

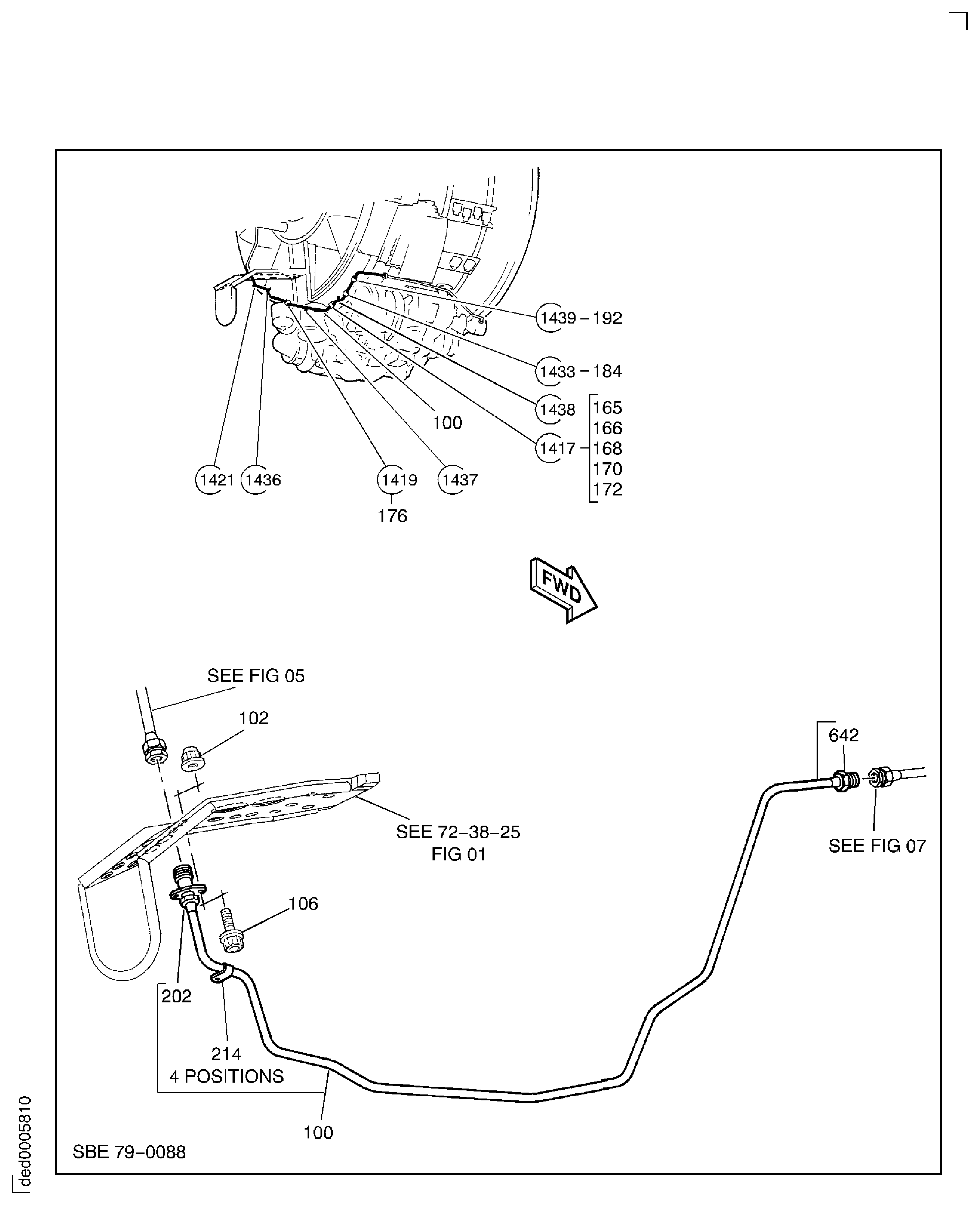

Figure: AIR-BEARING COMPARTMENT COOLING & SEALING TUBES
AIR-BEARING COMPARTMENT COOLING
AIR-BEARING COMPARTMENT COOLING
