DMC:V2500-A5-75-22-49-08A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 08 | ||||
| - | B75224908 | AIR-BEARING COMPARTMENT COOLING & SEALING TUBES | aa | |
| 100 | 5A9039 | • TUBE, COLD AIR BUFFER, ASSEMBLY OF | aa/01 | 1 |
| 106 | 4W0165 | • BOLT - .250 DIA X .688 | aa/01 | 3 |
| 108 | AGS3900 | • GASKET | aa/01 | 1 |
| 125 | 4W0103 | • BOLT - .190 DIA X .500 | aa/01 | 1 |
| 126 | 5W1086 | • WASHER | aa/01 | 1 |
| 128 | 5W1115 | • CLIP | aa/01 | 1 |
| 132 | 4W0043 | • NUT - .190 DIA | aa/01 | 1 |
| 133 | 4W0103 | • BOLT - .190 DIA X .500 | aa/01 | 1 |
| 134 | 5W1086 | • WASHER | aa/01 | 1 |
| 136 | 5W1115 | • CLIP | aa/01 | 1 |
| 140 | 4W0043 | • NUT - .190 DIA | aa/01 | 1 |
| 141 | 4W0103 | • BOLT - .190 DIA X .500 | aa/01 | 1 |
| 142 | 5W1086 | • WASHER | aa/01 | 1 |
| 144 | 5W1115 | • CLIP | aa/01 | 1 |
| 148 | 4W0043 | • NUT - .190 DIA | aa/01 | 1 |
| 202 | 5A8692 | • • ADAPTER, FLANGED ELBOW | aa/01 | 1 |
| 212 | 5W1103 | • • SLEEVE, HALF | aa/01 | 6 |
| 218 | 5W8133 | • • ADAPTER, TEE | aa/01 | 1 |
| 220 | NNC1399 | • • TUBE , .750O/D X /028T | aa/02 | 1 |
| 242 | 5A8678 | • • ADAPTER, TEE | aa/01 | 1 |
| 500 | 5A8757 | • TUBE, AIR, ASSEMBLY OF | aa/01 | 1 |
| 600 | AS15782 | • • WIRE, THRUST U1653 | aa/01 | 1 |
| 601 | AS15706 | • • NUT, TUBE COUPLING U1653 | aa/01 | 1 |
| 602 | AS15732 | • • FERRULE U1653 | aa/01 | 1 |
| 614 | 5W1065 | • • LUG | aa/01 | 1 |
| 642 | 5W8148 | • • ADAPTER, UNION ELBOW | aa/01 | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

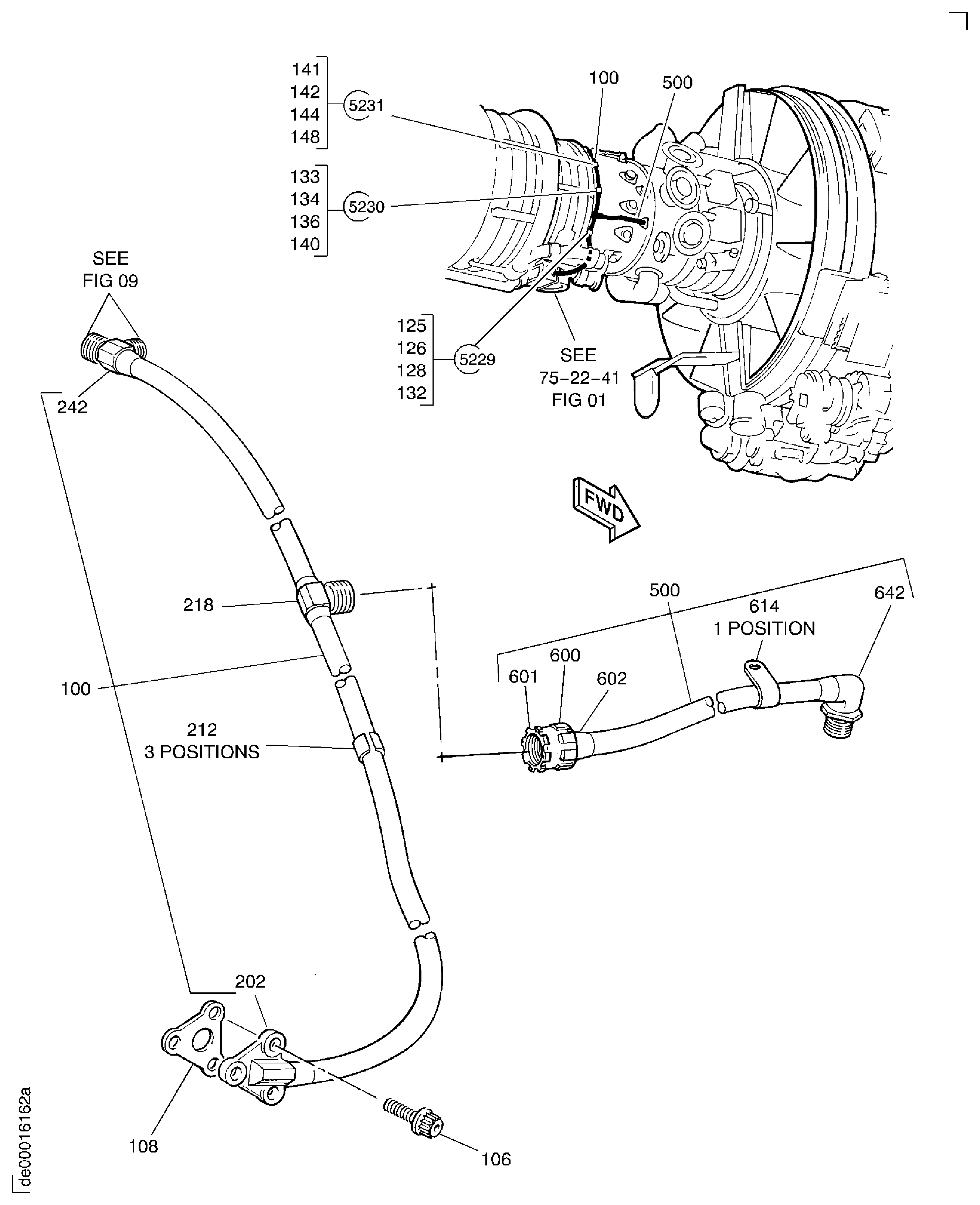

Figure: Bearing Compartment Cooling And Sealing Air Tubes
Bearing Compartment Cooling And Sealing Air Tubes
