DMC:V2500-A5-75-22-49-16A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 16 | ||||
| - | B75224916 | AIR-BEARING COMPARTMENT COOLING & SEALING TUBES, PRE SBE72-0160 | aa | |
| - | SBE0160-01 | AIR-BEARING COMPARTMENT COOLING & SEALING TUBES | ab | |
| 070 | 6A5671 | • BRACKET, CLIPPING POST SBE72-0160 | ab/01 | 1 |
| 070A | 6A5671 | • BRACKET, CLIPPING | aa-ab/02 | 1 |
| 072 | 4W0164 | • BOLT - .250 DIA X .625 (SEE APPENDIX 5) POST SBE72-0160 | ab/01 | 1 |
| 072A | 4W0164 | • BOLT - .250 DIA X .625 (SEE APPENDIX 5) | aa-ab/02 | 1 |
| 074 | 4W0002 | • NUT - .250 DIA (SEE APPENDIX 5) POST SBE72-0160 | ab/01 | 1 |
| 074A | 4W0002 | • NUT - .250 DIA (SEE APPENDIX 5) | aa-ab/02 | 1 |
| 100 | 6A2157 | • TUBE, COOLING AIR, ASSEMBLY OF PRE SBE72-0160 | aa/01 | 1 |
| 100A | 6A5387 | • TUBE, ASSY OF FANCASE TO PMA POST SBE72-0160 | ab/01 | 1 |
| 100B | 6A5387 | • TUBE, ASSY OF FANCASE TO PMA | aa-ab/02 | 1 |
| 125 | 4W0102 | • BOLT - .190 DIA X .438 (SEE APPENDIX 5) PRE SBE72-0160 | aa/01 | 1 |
| 125A | 4W0102 | • BOLT - .190 DIA X .438 (SEE APPENDIX 5) POST SBE72-0160 | ab/01 | 1 |
| 125B | 4W0102 | • BOLT - .190 DIA X .438 (SEE APPENDIX 5) | aa-ab/02 | 1 |
| 126 | K8831 | • WASHER - .190 DIA X 0.51 THK PRE SBE72-0160 | aa/01 | 1 |
| 128 | 400WSS8 | • CLIP 83930 PRE SBE72-0160 | aa/01 | 1 |
| 128A | AS62408 | • CLIP - 12.70 MM (0.500) U1653 POST SBE72-0160 | ab/01 | 1 |
| 128B | AS62408 | • CLIP - 12.70 MM (0.500) U1653 | aa-ab/02 | 1 |
| 132 | 4W0001 | • NUT - .190 DIA (SEE APPENDIX 5) PRE SBE72-0160 | aa/01 | 1 |
| 132A | 4W0001 | • NUT - .190 DIA (SEE APPENDIX 5) POST SBE72-0160 | ab/01 | 1 |
| 132B | 4W0001 | • NUT - .190 DIA (SEE APPENDIX 5) | aa-ab/02 | 1 |
| 136 | 400WSS8 | • CLIP 83930 PRE SBE72-0160 | aa/01 | 1 |
| 136A | AS62408 | • CLIP - 12.70 MM (0.500) U1653 POST SBE72-0160 | ab/01 | 1 |
| 136B | AS62408 | • CLIP - 12.70 MM (0.500) U1653 | aa-ab/02 | 1 |
| 152 | 400WSS8 | • CLIP 83930 PRE SBE72-0160 | aa/01 | 1 |
| 152A | AS62408 | • CLIP - 12.70 MM (0.500) U1653 POST SBE72-0160 | ab/01 | 1 |
| 152B | AS62408 | • CLIP - 12.70 MM (0.500) U1653 | aa-ab/02 | 1 |
| 162 | AS21418 | • BOLT - .190 DIA X 1.125 U1653 | aa-ab/03 | 1 |
| 164 | K8831 | • WASHER - .190 DIA X 0.51 THK | aa-ab/03 | 1 |
| 166 | UP10480 | • SPACER - 15MM | aa-ab/03 | 1 |
| 167 | 400WSS8 | • CLIP 83930 PRE SBE72-0160 | aa/01 | 1 |
| 167A | AS62408 | • CLIP - 12.70 MM (0.500) U1653 POST SBE72-0160 | ab/01 | 1 |
| 167B | AS62408 | • CLIP - 12.70 MM (0.500) U1653 | aa-ab/02 | 1 |
| 168 | AS20624 | • NUT - SELF LOCKING,BIHEX, .190 DIA U1653 | aa-ab/03 | 1 |
| 200 | AS15781 | • • WIRE - THRUST U1653 | aa-ab/01 | 1 |
| 201 | AS15705 | • • NUT - TUBE COUPLING U1653 | aa-ab/01 | 1 |
| 202 | AS15730 | • • FERRULE - WELDING TUBE U1653 PRE SBE72-0160 | aa/01 | 1 |
| 202A | AS15810 | • • ADAPTOR - STRAIGHT TUBE U1653 POST SBE72-0160 | ab/01 | 1 |
| 202B | AS15810 | • • ADAPTOR - STRAIGHT TUBE U1653 | aa-ab/02 | 1 |
| 240 | AS15781 | • • WIRE - THRUST U1653 | aa-ab/03 | 1 |
| 241 | AS15705 | • • NUT - TUBE COUPLING U1653 | aa-ab/03 | 1 |
| 242 | AS15810 | • • ADAPTOR - STRAIGHT TUBE U1653 PRE SBE72-0160 | aa/01 | 1 |
| 242A | AS15730 | • • FERRULE - WELDING TUBE U1653 POST SBE72-0160 | ab/01 | 1 |
| 242B | AS15730 | • • FERRULE - WELDING TUBE U1653 | aa-ab/02 | 1 |
| 500 | 6A2156 | • TUBE, COOLING AIR, ASSEMBLY OF PRE SBE72-0160 | aa/01 | 1 |
| 500A | 6A5388 | • TUBE, ASSY OF POST SBE72-0160 | ab/01 | 1 |
| 500B | 6A5388 | • TUBE, ASSY OF | aa-ab/02 | 1 |
| 528 | 400WSS8 | • CLIP 83930 PRE SBE72-0160 | aa/01 | 1 |
| 528A | AS62408 | • CLIP - 12.70 MM (0.500) U1653 POST SBE72-0160 | ab/01 | 1 |
| 528B | AS62408 | • CLIP - 12.70 MM (0.500) U1653 | aa-ab/02 | 1 |
| 536 | 400WSS8 | • CLIP 83930 PRE SBE72-0160 | aa/01 | 1 |
| 536A | AS62408 | • CLIP - 12.70 MM (0.500) U1653 POST SBE72-0160 | ab/01 | 1 |
| 536B | AS62408 | • CLIP - 12.70 MM (0.500) U1653 | aa-ab/02 | 1 |
| 549 | 4W0103 | • BOLT - .190 DIA X .500 (SEE APPENDIX 5) | aa-ab/03 | 1 |
| 550 | K8831 | • WASHER - .190 DIA X 0.51 THK | aa-ab/03 | 1 |
| 552 | AS62408 | • CLIP - 12.70 MM (0.500) U1653 POST SBE72-0160 | ab/01 | 1 |
| 552A | AS62408 | • CLIP - 12.70 MM (0.500) U1653 | aa-ab/02 | 1 |
| 556 | 4W0001 | • NUT - .190 DIA (SEE APPENDIX 5) | aa-ab/03 | 1 |
| 560 | 400WSS8 | • CLIP 83930 PRE SBE72-0160 | aa/01 | 1 |
| 560A | AS62408 | • CLIP - 12.70 MM (0.500) U1653 POST SBE72-0160 | ab/01 | 1 |
| 560B | AS62408 | • CLIP - 12.70 MM (0.500) U1653 | aa-ab/02 | 1 |
| 600 | AS15781 | • • WIRE - THRUST U1653 | aa-ab/01 | 1 |
| 601 | AS15705 | • • NUT - TUBE COUPLING U1653 | aa-ab/01 | 1 |
| 602 | AS15730 | • • FERRULE - WELDING TUBE U1653 PRE SBE72-0160 | aa/01 | 1 |
| 602A | AS15810 | • • ADAPTOR - STRAIGHT TUBE U1653 POST SBE72-0160 | ab/01 | 1 |
| 602B | AS15810 | • • ADAPTOR - STRAIGHT TUBE U1653 | aa-ab/02 | 1 |
| 614 | UP11155 | • • BRACKET - INTER TUBE SUPPORT | aa-ab/03 | 1 |
| 640 | AS15781 | • • WIRE - THRUST U1653 | aa-ab/03 | 1 |
| 641 | AS15705 | • • NUT - TUBE COUPLING U1653 | aa-ab/03 | 1 |
| 642 | AS15810 | • • ADAPTOR - STRAIGHT TUBE U1653 PRE SBE72-0160 | aa/01 | 1 |
| 642A | LK53575 | • • FERRULE POST SBE72-0160 | ab/01 | 1 |
| 642B | LK53575 | • • FERRULE | aa-ab/02 | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

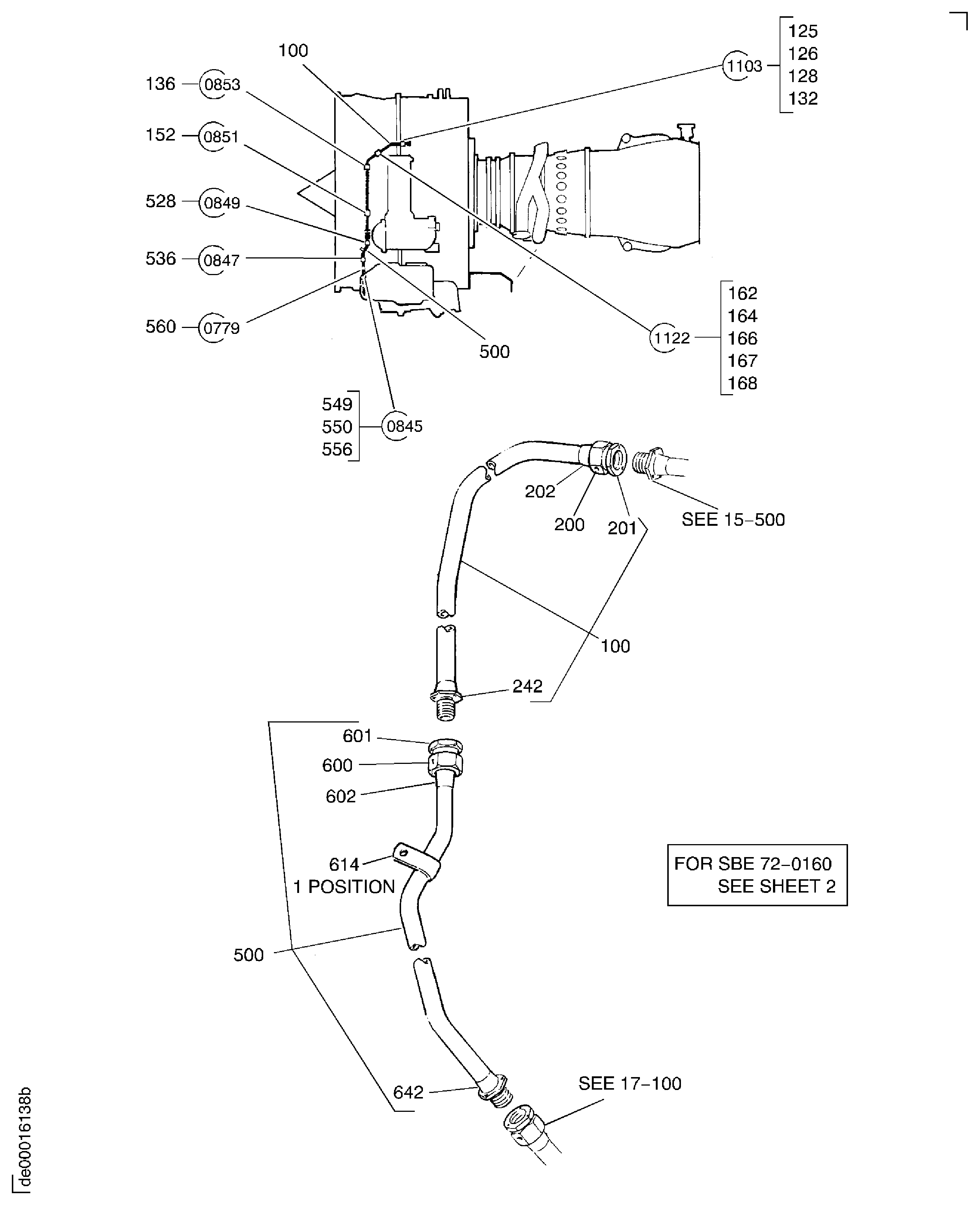

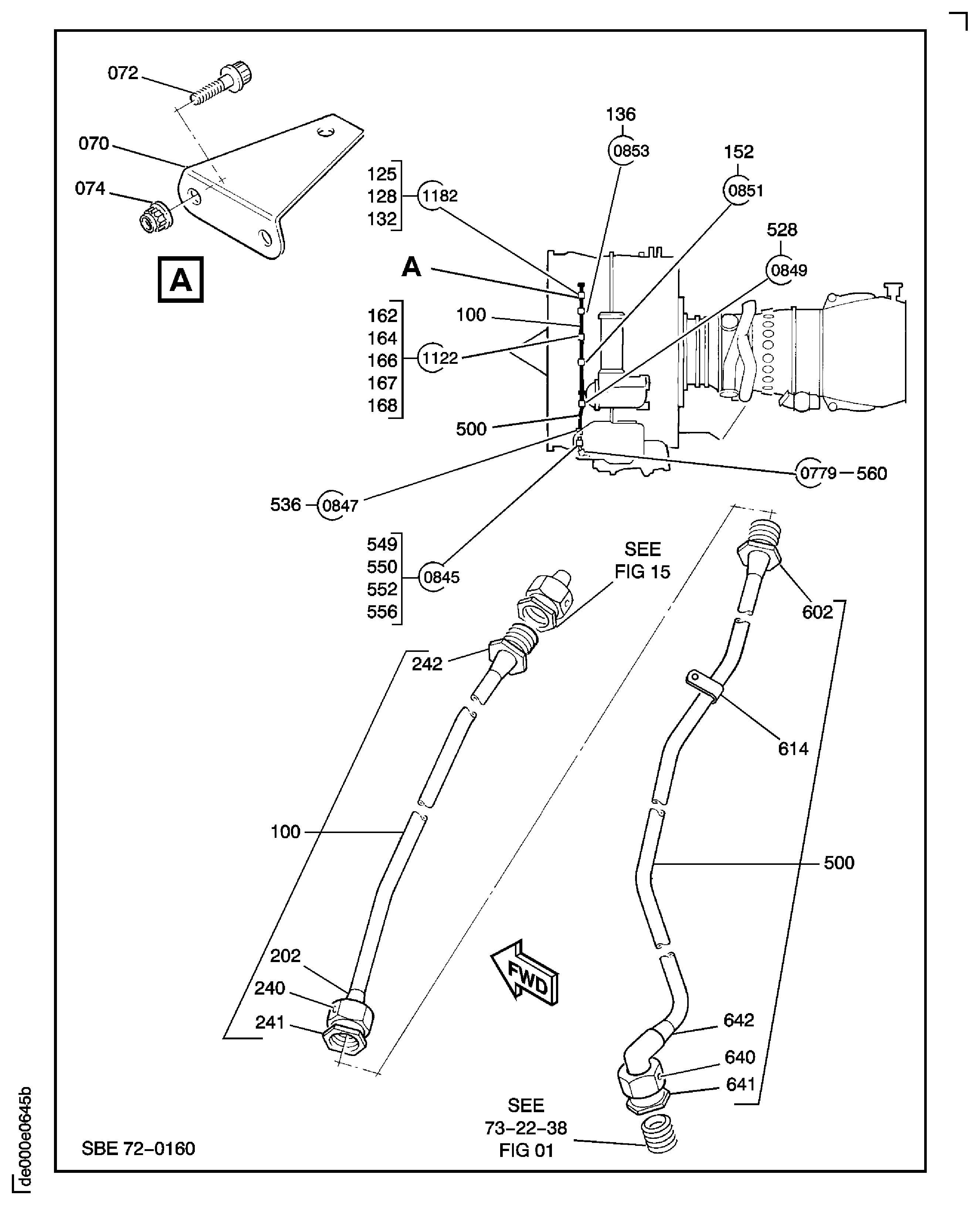

Figure: Bearing Compartment Cooling And Sealing Air Tubes
Bearing Compartment Cooling And Sealing Air Tubes
Bearing Compartment Cooling And Sealing Air Tubes
