V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 02 | ||||
| B75234802 | AIR-TURBINE COOLING CONTROLLED AIR TUBES, PRE SBE73-0061 | aa | ||
| SBE0061-01 | AIR-TURBINE COOLING CONTROLLED AIR TUBES, PRE SBE79-0088 | ab | ||
| SBE0088-02 | AIR-TURBINE COOLING CONTROLLED AIR TUBES, PRE SBE73-0198 | ac | ||
| SBE0198-01 | AIR-TURBINE COOLING CONTROLLED AIR TUBES | ad | ||
| 100 | 5A8759 | • TUBE - ASSY AIR B.U.AIR SLNID PRE SBE75-0081 | ***** | 1 |
| 100A | 6A6227 | • TUBE - A/O POST SBE79-0088 | ac-ad | 1 |
| 128 | 400WSS4 | • CLIP 83930 PRE SBE75-0081 | ***** | 1 |
| 136 | 400WSS4 | • CLIP 83930 PRE SBE75-0081 | ***** | 1 |
| 144 | 400WSS4 | • CLIP 83930 PRE SBE75-0081 | ***** | 1 |
| 152 | 400WSS4 | • CLIP 83930 PRE SBE75-0081 | ***** | 1 |
| 160 | 400WSS4 | • CLIP 83930 PRE SBE73-0061 | aa | 1 |
| 160A | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE73-0061 PRE SBE75-0081 | aa | 1 |
| 183 | 400WSS4 | • CLIP 83930 POST SBE79-0088 PRE SBE73-0198 | ac-ad | 1 |
| 183A | 400WSS4 | • CLIP 83930 ALT AS62404 POST SBE73-0198 | ac-ad | 1 |
| 183B | AS62404 | • CLIP - 6.35 MM (0.250) U1653 ALT 400WSS4 POST SBE73-0198 | ac-ad | 1 |
| 191 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0088 | ac-ad | 1 |
| 200 | AS15777 | • • WIRE - THRUST U1653 PRE SBE75-0081 | ***** | 1 |
| 201 | AS15701 | • • NUT - TUBE COUPLING U1653 PRE SBE75-0081 | ***** | 1 |
| 202 | AS15768 | • • FERRULE - ASSY U1653 PRE SBE75-0081 | ***** | 1 |
| 242 | AS15802 | • • ADAPTOR U1653 PRE SBE75-0081 | ***** | 1 |
| 500 | 5A9076 | • TUBE - A/O AIR ON/OFF VALVE PRE SBE75-0081 | ***** | 1 |
| 500A | 6A6226 | • TUBE - A/O POST SBE79-0088 | ac-ad | 1 |
| 510 | 4W0002 | • NUT - .250 DIA PRE SBE75-0081 | ***** | 2 |
| 514 | 4W0163 | • BOLT - .250 DIA X .562 PRE SBE75-0081 | ***** | 2 |
| 528 | 400WSS4 | • CLIP 83930 PRE SBE73-0061 | aa | 1 |
| 528A | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE73-0061 PRE SBE75-0081 | aa | 1 |
| 536 | 400WSS4 | • CLIP 83930 PRE SBE75-0081 | ***** | 1 |
| 544 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0088 | ac-ad | 1 |
| 552 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0088 | ac-ad | 1 |
| 560 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0088 | ac-ad | 1 |
| 600 | AS15777 | • • WIRE - THRUST U1653 PRE SBE75-0081 | ***** | 1 |
| 601 | AS15701 | • • NUT - TUBE COUPLING U1653 PRE SBE75-0081 | ***** | 1 |
| 602 | AS15768 | • • FERRULE - ASSY U1653 PRE SBE75-0081 | ***** | 1 |
| 614 | 5W1059 | • • LUG - BRAZED PRE SBE75-0081 | ***** | 1 |
| 614A | UP11152 | • • BRACKET - INTER TUBE SUPPORT POST SBE79-0088 | ac-ad | 1 |
| 618 | 5W8019 | • • ADAPTOR - UNION FLANGED PRE SBE75-0081 | ***** | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

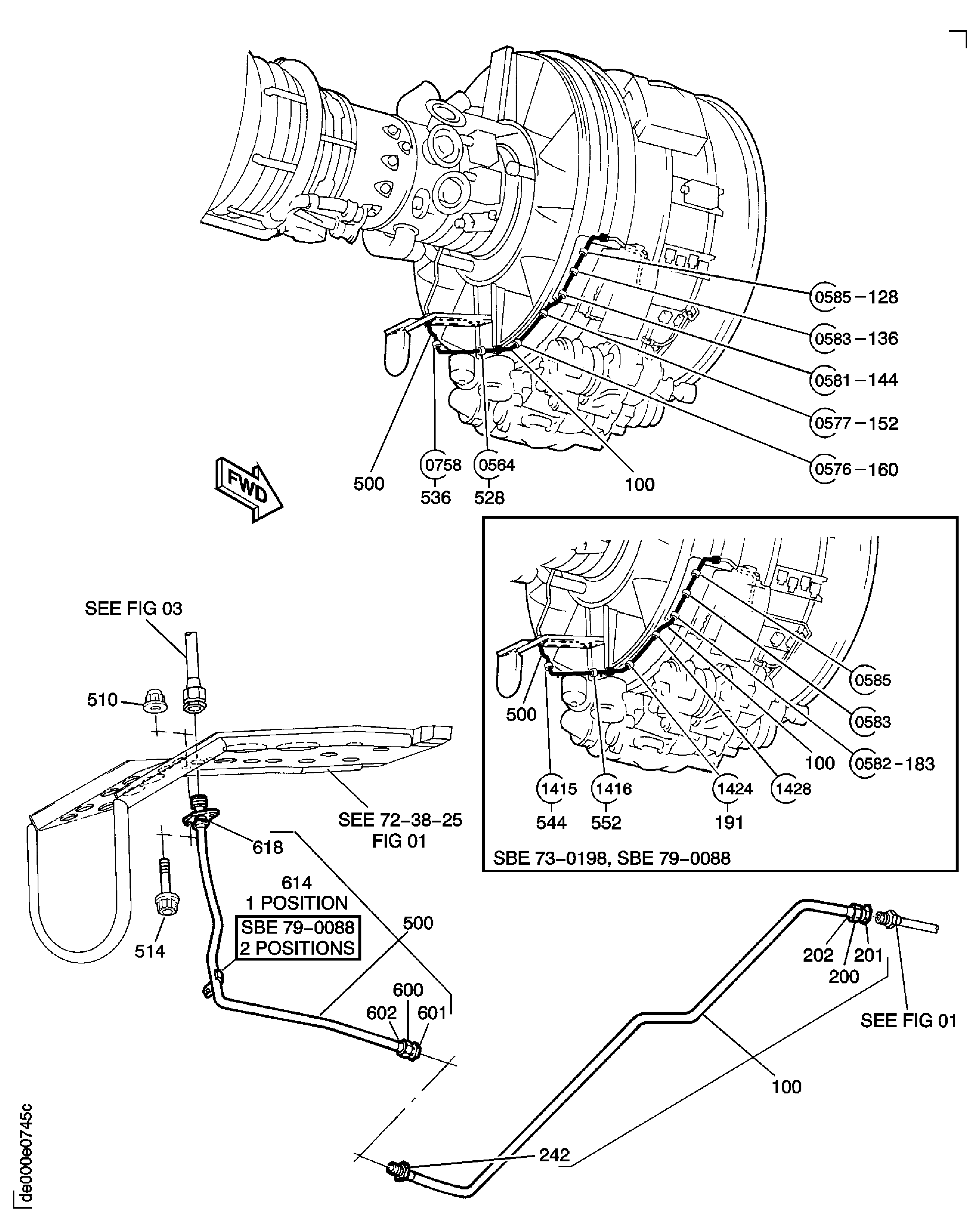

Figure: AIR-TURBINE COOLING CONTROLLED AIR TUBES
TURBINE COOLING CONTROLLED AIR TUBES
