| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B75235101 | AIR-STAGE 10 TO HPT AIR VALVE, PRE SBE75-0022 | aa | ||
| SBE0022-01 | AIR-STAGE 10 TO HPT AIR VALVE | ab | ||
| 010 | 5W8467 | • BRACKET PRE SBE75-0081 | *****/01 | 1 |
| 100 | 5860010-103 | • VALVE - AIR-STAGE 10 TO HPT 92003 ALT 5860010-103 (REF NO 5U0008) PRE SBE75-0022 | aa/02 | 1 |
| 100A | 5860010-103 | • VALVE - AIR-STAGE 10 TO HPT 92003 ALT 5860010-106 (REF NO 5U0008) | aa-ab/02 | 1 |
| -100B | 5860010-106 | • VALVE - AIR STAGE 10 TO HPT 92003 (REF NO 5U0027) | aa-ab/02 | REF |
| 100C | 5860010-108 | • VALVE - AIR STAGE 10 TO HPT 92003 (REF NO 5U0057) POST SBE75-0022 PRE SBE75-0081 | *****/01 | 1 |
| 110 | 4W0227 | • BOLT - .3125 DIA X .875 Optional Part AS21614 PRE SBE75-0081 | *****/01 | 4 |
| 120 | 5U0001 | • SEAL - C PRE SBE75-0081 | *****/01 | 1 |
| 150 | 5863291-101 | • • FITTING 92003 PRE SBE75-0081 | *****/01 | 1 |
| 155 | 5863292-101 | • • SEAL - BOSS 92003 PRE SBE75-0081 | *****/01 | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

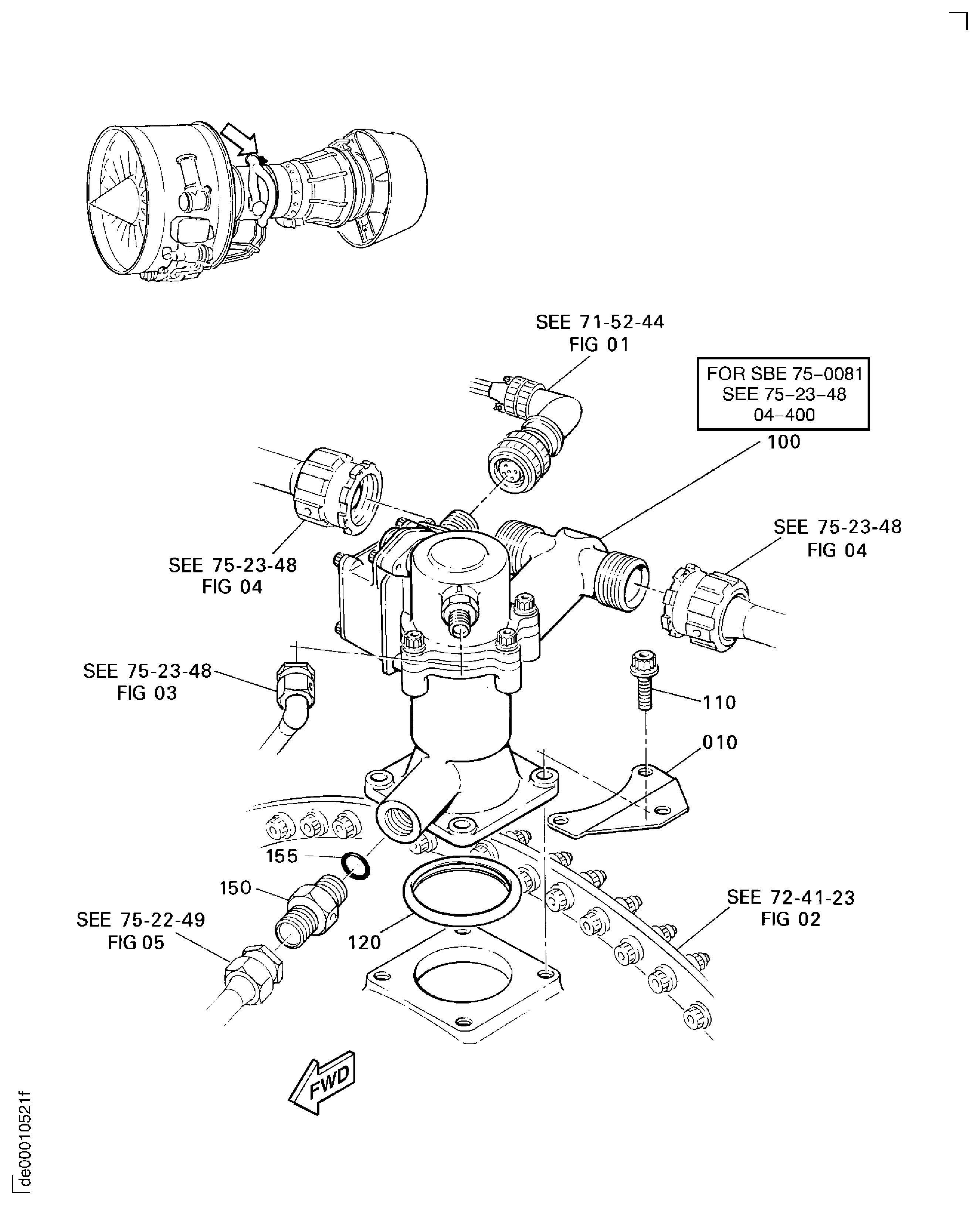

Figure: AIR-STAGE 10 TO HPT AIR VALVE
AIR-STAGE 10 TO HPT AIR VALVE
