Active Clearance Control (ACC) Supply Air Ducts

DMC:V2500-A5-75-24-47-01A-941A-D|Issue No:002.00|Issue Date:2016-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A5

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
01
-000B75244701AIR-HP/LP ACTIVE CLEARANCE CONTROL SUPPLY DUCT, PRE SBE75-0060
aa
-000SBE0060-01AIR-HP/LP ACTIVE CLEARANCE CONTROL SUPPLY DUCT, PRE SBE70-0574
ab
-000SBE0574-01AIR-HP/LP ACTIVE CLEARANCE CONTROL SUPPLY DUCT, PRE SBE75-0119
ac
-000SBE0119-01AIR-HP/LP ACTIVE CLEARANCE CONTROL SUPPLY DUCT
ad
1001002A0788• DUCT, FRONT ACC
aa-ad/011
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
1101104W0001• NUT - .190 DIA
aa-ad/012
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
1151154W0102• BOLT - .190 DIA X .438
aa-ad/012
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
1201205W1644• CLAMP
aa-ad/011
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
1251255W1635• CLAMP
aa-ad/011
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
1351354W0002• NUT - .250 DIA
aa-ad/0112
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
1401404W0165• BOLT - .250 DIA X .688
aa-ad/0112
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
1901902A1481• SHIELD, HEAT, ASSEMBLY OF
aa-ad/011
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
2002004W0001• NUT - .190 DIA
aa-ad/014
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
2102104W0102• BOLT - .190 DIA X .438
aa-ad/014
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
3003002A1428• DUCT, ACC REAR, ASSEMBLY OF
aa-ad/011
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
3103104W0002• NUT - .250 DIA
aa-ad/014
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
3153154W0165• BOLT - .250 DIA X .688
aa-ad/014
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
3203204W0002• NUT - .250 DIA
aa-ad/012
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
3253254W0166• BOLT - 0.250 DIA X 0.750
aa-ad/012
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
5005005W2098• BRACKET, VALVE, ASSEMBLY OF
PRE SBE75-0060
aa/011
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
500500A6A6486• BRACKET, VALVE, ACC ASSEMBLY OF
POST SBE75-0060
PRE SBE70-0574
ab/011
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
500500B6A6486• BRACKET, VALVE, ACC ASSEMBLY OF
ALT 6A6587
POST SBE70-0574
ac-ad/011
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
500500C6A6587• BRACKET, ASSEMBLY
ALT 6A6486
POST SBE70-0574
ac-ad/011
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
510510MS24665-151• PIN
96906
aa-ad/011
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
515515AN310C4• NUT
aa-ad/011
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
520520NAS6704DU12• BOLT
80205
aa-ad/011
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
532532VTB12351• • • BEARING - SPHERICAL
06710
ALT P25001
POST SBE75-0060
ab-ad/011
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
532532AP25001• • • BEARING - SPHERICAL
57606
ALT VTB12351
POST SBE75-0060
ab-ad/011
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
5405405W2059• BUSHING
PRE SBE75-0119
aa-ac/012
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
540540A6B1465• BUSHING
POST SBE75-0119
ad/012
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
5505505W2058• LINK, VALVE ACC
PRE SBE70-0574
aa-ab/021
V2522/V2524/V2527M AQ02, V2527/V2527E AQ02, V2530 AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ03, V2530 AQ03, V2522/V2524/V2527M SQ02, V2527/V2527E SQ02, V2530 SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ03, V2530 SQ03, V2522/V2524/V2527M SQ04, V2527/V2527E SQ04, V2530 SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ05, V2530 SQ05
550550A5W2058• LINK, VALVE ACC
ALT 6A6588
POST SBE70-0574
ac-ad/031
V2533 AQ02, V2533 AQ03, V2533 SQ02, V2533 SQ03, V2533 SQ04, V2533 SQ05
550550B6A6588• LINK, ACC VALVE
ALT 5W2058
POST SBE70-0574
ac-ad/011
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
560560MS24665-151• PIN
96906
aa-ad/011
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
565565AN310C4• NUT
aa-ad/011
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
570570NAS6704DU12• BOLT
80205
aa-ad/011
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
5905905W2059• BUSHING
PRE SBE75-0119
aa-ac/012
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
590590A6B1465• BUSHING
POST SBE75-0119
ad/012
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

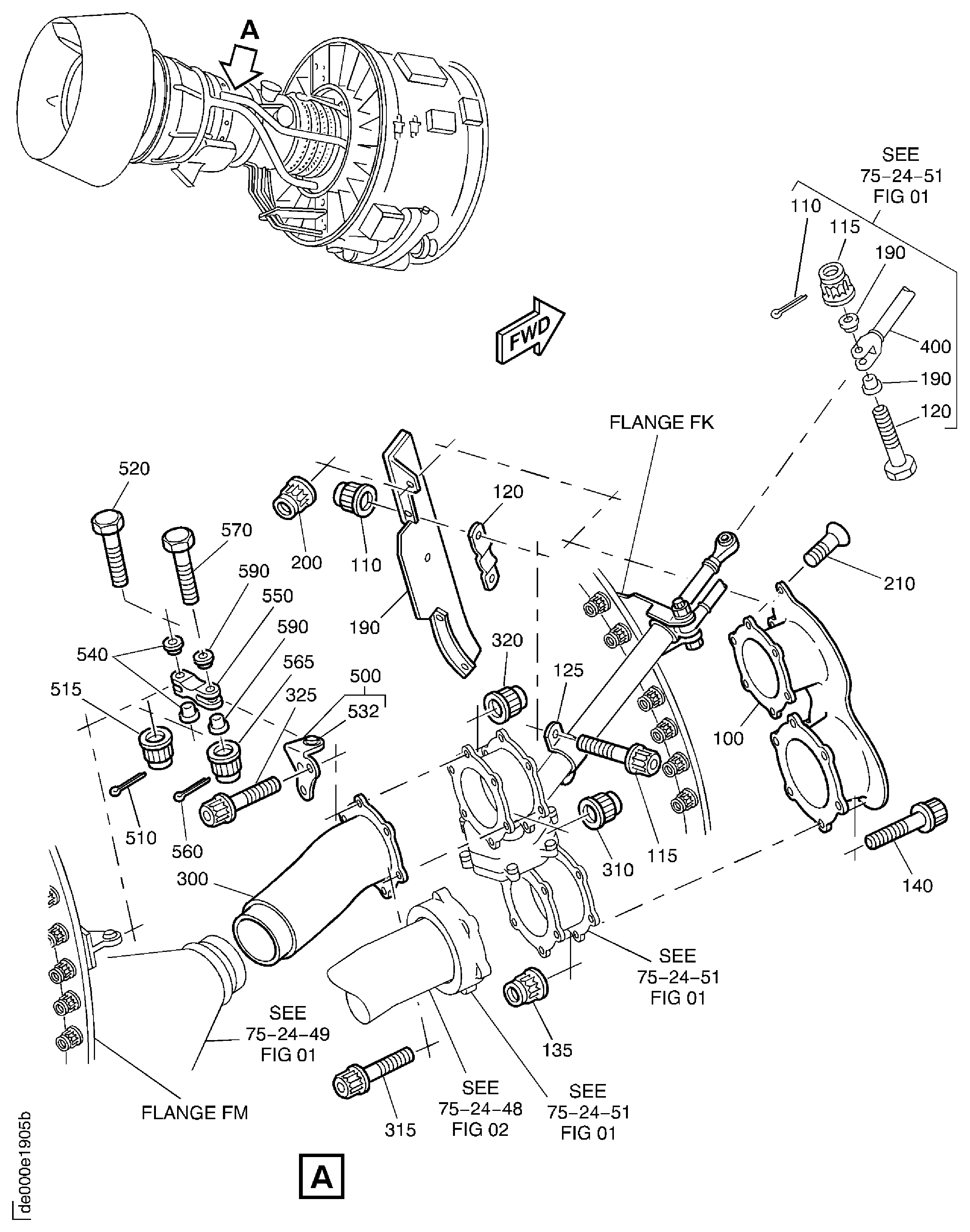

Figure: Active Clearance Control (ACC) Supply Air Ducts

Active Clearance Control (ACC) Supply Air Ducts

Change Type:

Added Missing Item

Manufacturer Code:06710
Enterprise Name:VALLEY TODECO INC
BU Name:VALLEY TODECO INC
Street:12975 BRADLEY AVENUE
City:SYLMAR
State:CALIFORNIA
Zip Code:91342-3830
Country:USA
Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:57606
Enterprise Name:PSI BEARINGS
BU Name:PSI BEARINGS
Street:2175 UNION PLACE
P.O. Box:1080
City:SIMI VALLEY
State:CA
Zip Code:93065
Country:USA
Manufacturer Code:80205
Enterprise Name:NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES ASSO OF AMERICAN, INC
BU Name:NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES ASSO OF AMERICAN, INC
Street:NONE
City:NONE
Country:USA
Phone Number:NONE
Manufacturer Code:96906
Enterprise Name:MILITARY STANDARDS MANUAL 4120 3-M
BU Name:MILITARY STANDARDS MANUAL 4120 3-M
Street:NONE
City:NONE
Country:USA
Phone Number:NONE
Manufacturer Code:U1653
Enterprise Name:Society Of British Aerospace Companies, LTD.
Part Number:2A0788
Part Name:DUCT, FRONT ACC
Manufacturer Code:0AM53
Part Number:2A1428
Part Name:DUCT, ACC REAR, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1481
Part Name:SHIELD, HEAT, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4W0001
Part Name:NUT, OPTION - .190 DIA
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS20624NUT, SELF LOCKING DBL HEX - .190 DIAU1653
Part Number:4W0002
Part Name:NUT, SELF LOCKING DBL HEX - .250 DIA
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS20625NUT, SELF LOCKING, BIHEX, .250 DIAU1653
Part Number:4W0102
Part Name:BOLT, MACHINE DOUBLE HEX - .190 DIA X .438
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
4W0342BOLT - .190 DIA X .4380AM53
AS21407BOLT - 0.19 DIA X 0.438U1653
Part Number:4W0165
Part Name:BOLT, MACHINE DOUBLE HEX - .250 DIA X .688
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS21511BOLT- MACHINE DOUBLE HEX, .250 DIA X .688U1653
Part Number:4W0166
Part Name:BOLT, MACHINE DOUBLE HEX - .250 DIA X .750
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS21512BOLT - 0.25 DIA X 0.750U1653
Part Number:4W0342
Part Name:BOLT - .190 DIA X .438
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
4W0102BOLT, MACHINE DOUBLE HEX - .190 DIA X .4380AM53
Part Number:5W1635
Part Name:CLAMP
Manufacturer Code:0AM53
Part Number:5W1644
Part Name:CLAMP
Manufacturer Code:0AM53
Part Number:5W2058
Part Name:LINK, VALVE ACC
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
6A6588LINK, ACC VALVE0AM53
Part Number:5W2059
Part Name:BUSHING
Manufacturer Code:0AM53
Part Number:5W2098
Part Name:BRACKET - VALVE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A6486
Part Name:BRACKET, VALVE, ACC ASSEMBLY OF
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
6A6587BRACKET, ASSEMBLY ACC LPT VALVE0AM53
Part Number:6A6587
Part Name:BRACKET, ASSEMBLY ACC LPT VALVE
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
6A6486BRACKET, VALVE, ACC ASSEMBLY OF0AM53
Part Number:6A6588
Part Name:LINK, ACC VALVE
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
5W2058LINK, VALVE ACC0AM53
Part Number:6B1465
Part Name:BUSHING
Manufacturer Code:0AM53
Link not Found
Part Number:AS20624
Part Name:NUT, SELF LOCKING DBL HEX - .190 DIA
Manufacturer Code:U1653
Part Number:AS20625
Part Name:NUT, SELF LOCKING, BIHEX, .250 DIA
Manufacturer Code:U1653
Unit Of Issue:EA
Part Number:AS21407
Part Name:BOLT - 0.19 DIA X 0.438
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
MS9556-05BOLT96906
Part Number:AS21511
Part Name:BOLT- MACHINE DOUBLE HEX, .250 DIA X .688
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
MS9557-09BOLT, MACHINE DOUBLE HEX96906
Part Number:AS21512
Part Name:BOLT - 0.25 DIA X 0.750
Manufacturer Code:U1653
Part Number:MS24665-151
Part Name:PIN
Manufacturer Code:96906
Part Number:MS9556-05
Part Name:BOLT
Manufacturer Code:96906
Optional Parts
Part NumberPart NameManufacturer
AS21407BOLT - 0.19 DIA X 0.438U1653
Part Number:MS9557-09
Part Name:BOLT, MACHINE DOUBLE HEX
Manufacturer Code:96906
Optional Parts
Part NumberPart NameManufacturer
AS21511BOLT- MACHINE DOUBLE HEX, .250 DIA X .688U1653
Part Number:NAS6704DU12
Part Name:BOLT, REAMER
Manufacturer Code:80205
Part Number:P25001
Part Name:BEARING - SPHERICAL
Manufacturer Code:57606
Optional Parts
Part NumberPart NameManufacturer
VTB12351BEARING - SPHERICAL06710
Part Number:VTB12351
Part Name:BEARING - SPHERICAL
Manufacturer Code:06710
Optional Parts
Part NumberPart NameManufacturer
P25001BEARING - SPHERICAL57606
