| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 02 | ||||
| B75245102 | AIR-ACTIVE CLEARANCE CONTROL VALVE, PRE SBE75-0060 | aa | ||
| SBE0060-01 | AIR-ACTIVE CLEARANCE CONTROL VALVE, PRE SBE70-0574 | ab | ||
| SBE0574-01 | AIR-ACTIVE CLEARANCE CONTROL VALVE, PRE SBE75-0094 | ac | ||
| SBE0094-01 | AIR-ACTIVE CLEARANCE CONTROL VALVE, PRE SBE75-0119 | ad | ||
| SBE0119-01 | AIR-ACTIVE CLEARANCE CONTROL VALVE | ae | ||
| 100 | 5W2239 | • LINK PRE SBE75-0060 | aa-ae | 1 |
| 100A | 6A6490 | • LINK POST SBE75-0060 PRE SBE70-0574 | aa-ae | 1 |
| 100B | 6A6585 | • LINK - ASSY ALT 6A6490 POST SBE70-0574 | aa-ae | 1 |
| 100C | 6A6490 | • LINK ALT 6A6585 POST SBE70-0574 | aa-ae | 1 |
| 110 | MS24665-151 | • PIN 96906 | aa-ae | 1 |
| 115 | AN310C4 | • NUT 81352 | aa-ae | 1 |
| 120 | NAS6704DU12 | • BOLT 80205 | aa-ae | 1 |
| 130 | 5W2059 | • BUSH PRE SBE75-0119 | aa-ad | 2 |
| 130A | 6B1465 | • BUSH POST SBE75-0119 | aa-ae | 2 |
| 140 | MS24665-151 | • PIN 96906 | aa-ae | 1 |
| 145 | AN310C4 | • NUT 81352 | aa-ae | 1 |
| 150 | NAS6704DU12 | • BOLT 80205 | aa-ae | 1 |
| 160 | 5W2059 | • BUSH PRE SBE75-0094 | aa-ac | 2 |
| 160A | 6A8297 | • OVERSIZE POST SBE75-0094 | ad-ae | 2 |
| 160B | 6B1465 | • BUSH POST SBE75-0119 | aa-ae | 2 |
| 165 | 6A8297 | • OVERSIZE - BUSH POST SBE75-0094 | ad-ae | 2 |
| 180 | 5W2097 | • • BEARING PRE SBE75-0060 | aa | 1 |
| 182 | VTB12351 | • • • BEARING - SPHERICAL 06710 ALT P25001 POST SBE75-0060 | ab-ae | 1 |
| 182A | P25001 | • • • BEARING - SPHERICAL 57606 ALT VTB12351 POST SBE75-0060 | ab-ae | 1 |
| 250 | 5W2235 | • LINK PRE SBE75-0060 | aa-ae | 1 |
| 250A | 6A6488 | • LINK POST SBE75-0060 PRE SBE70-0574 | aa-ae | 1 |
| 250B | 6A6586 | • LINK - ASSY ALT 6A6488 POST SBE70-0574 | aa-ae | 1 |
| 250C | 6A6488 | • LINK ALT 6A6586 POST SBE70-0574 | aa-ae | 1 |
| 260 | MS24665-151 | • PIN 96906 | aa-ae | 1 |
| 265 | AN310C4 | • NUT 81352 | aa-ae | 1 |
| 270 | NAS6704DU12 | • BOLT 80205 | aa-ae | 1 |
| 290 | MS24665-151 | • PIN 96906 | aa-ae | 1 |
| 295 | AN310C4 | • NUT 81352 | aa-ae | 1 |
| 300 | NAS6704DU12 | • BOLT 80205 | aa-ae | 1 |
| 310 | 5W2059 | • BUSH PRE SBE75-0119 | aa-ad | 2 |
| 310A | 6B1465 | • BUSH POST SBE75-0119 | aa-ae | 2 |
| 330 | 5W2097 | • • BEARING PRE SBE75-0060 | aa | 1 |
| 332 | VTB12351 | • • • BEARING - SPHERICAL 06710 ALT P25001 POST SBE75-0060 | ab-ae | 1 |
| 332A | P25001 | • • • BEARING - SPHERICAL 57606 ALT VTB12351 POST SBE75-0060 | ab-ae | 1 |
| 380 | 5W2059 | • • BUSH PRE SBE75-0119 | aa-ad | 2 |
| 380A | 6B1465 | • • BUSH POST SBE75-0119 | aa-ae | 2 |
| 385 | 6A8297 | • OVERSIZE - BUSH POST SBE75-0094 | ad-ae | 2 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

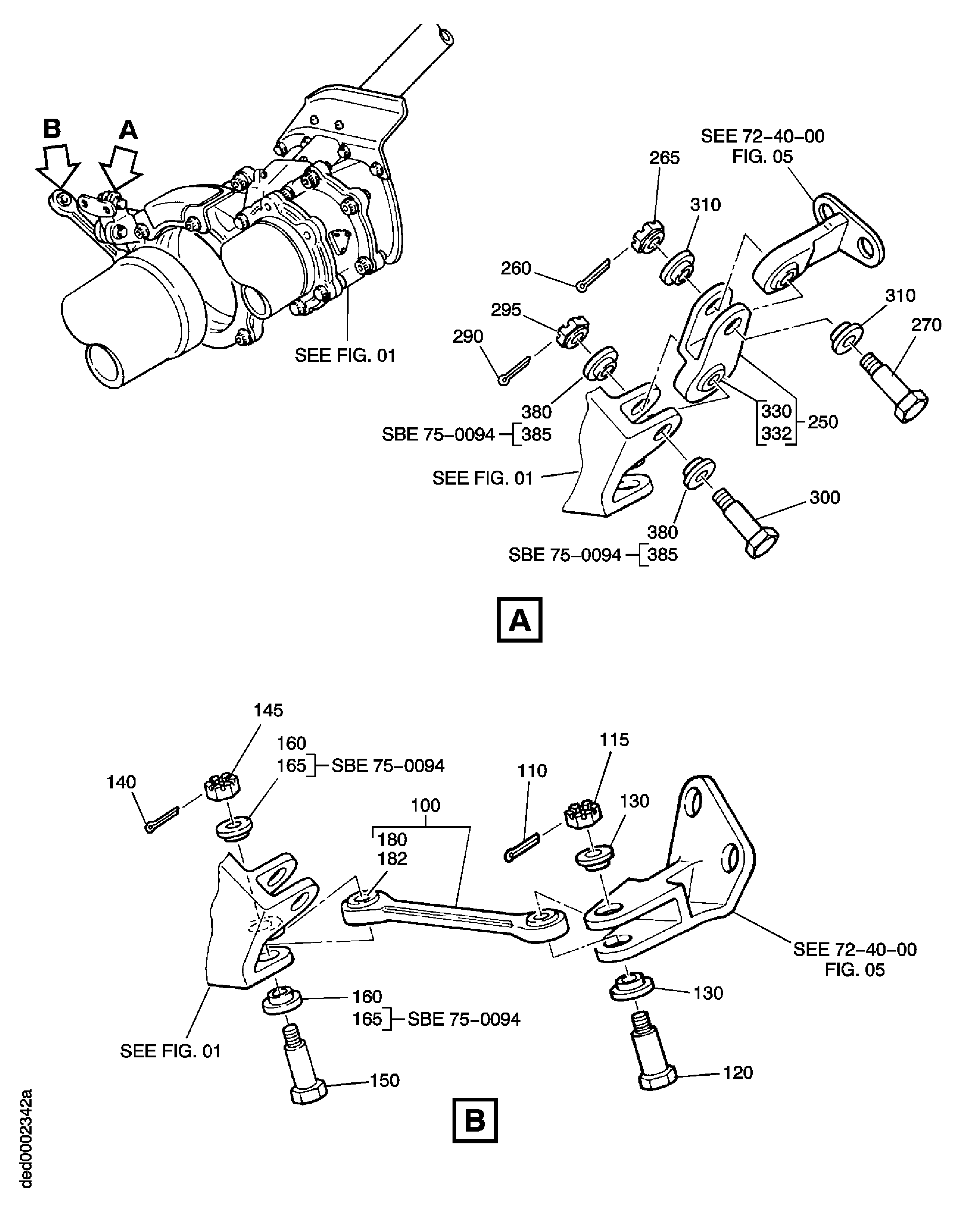

Figure: AIR-ACTIVE CLEARANCE CONTROL VALVE
AIR-ACTIVE CLEARANCE CONTROL VALVE
