DMC:V2500-A5-75-32-49-03A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 03 | ||||
| B75324903 | AIR-HP COMPRESSOR BLEED CONTROL TUBES, PRE SBE75-0081 | aa | ||
| SBE0081-01 | AIR-HP COMPRESSOR BLEED CONTROL TUBES, PRE SBE73-0198 | ab | ||
| SBE0198-01 | AIR-HP COMPRESSOR BLEED CONTROL TUBES | ac | ||
| 100 | 5A9147 | • TUBE - A/O AIR TO 10TH S/VAL | aa-ac | 1 |
| 200 | AS15778 | • • WIRE - THRUST U1653 | aa-ac | 1 |
| 201 | AS15702 | • • NUT - TUBE COUPLING U1653 | aa-ac | 1 |
| 202 | AS15724 | • • FERRULE - WELDING TUBE U1653 | aa-ac | 1 |
| 240 | AS15778 | • • WIRE - THRUST U1653 | aa-ac | 1 |
| 241 | AS15702 | • • NUT - TUBE COUPLING U1653 | aa-ac | 1 |
| 242 | 5W8144 | • • FERRULE - ELBOW | aa-ac | 1 |
| 470 | 5W8446 | • BRACKET POST SBE75-0081 | ab-ac | 1 |
| 472 | 4W0164 | • BOLT - .250 DIA X .625 POST SBE75-0081 | ab-ac | 1 |
| 474 | 4W0002 | • NUT - .250 DIA POST SBE75-0081 | ab-ac | 1 |
| 500 | 5A9146 | • TUBE - A/O AIR HPC 10TH B/VAL PRE SBE75-0081 | aa | 1 |
| 500A | 6A6194 | • TUBE - A/O POST SBE75-0081 PRE SBE73-0198 | ab | 1 |
| 500B | 6A9042 | • TUBE - ASSY POST SBE73-0198 | ac | 1 |
| 549 | 4W0104 | • BOLT - .190 DIA X .562 PRE SBE75-0081 | aa | 1 |
| 549A | 4W0103 | • BOLT - .190 DIA X .500 POST SBE75-0081 PRE SBE73-0198 | ab | 1 |
| 550 | 5W1086 | • WASHER PRE SBE73-0198 | aa-ab | 2 |
| 552 | 400WSS4 | • CLIP 83930 PRE SBE73-0198 | aa-ab | 1 |
| 556 | 4W0001 | • NUT - .190 DIA PRE SBE73-0198 | aa-ab | 1 |
| 557 | 4W0103 | • BOLT - .190 DIA X .500 PRE SBE75-0081 | aa | 1 |
| 558 | 5W1086 | • WASHER PRE SBE75-0081 | aa | 1 |
| 560 | 400WSS4 | • CLIP 83930 PRE SBE75-0081 | aa | 1 |
| 564 | 4W0001 | • NUT - .190 DIA PRE SBE75-0081 | aa | 1 |
| 565 | 4W0103 | • BOLT - .190 DIA X .500 Optional Part AS21408 POST SBE75-0081 | ab-ac | 1 |
| 566 | 5W1086 | • WASHER POST SBE75-0081 | ab-ac | 1 |
| 568 | 400WSS4 | • CLIP 83930 | aa-ac | 1 |
| 571 | 4W0043 | • NUT - .190 DIA Optional Part AS41104 POST SBE75-0081 | ab-ac | 1 |
| 573 | 4W0103 | • BOLT - .190 DIA X .500 Optional Part AS21408 POST SBE75-0081 | ab-ac | 1 |
| 575 | 5W1086 | • WASHER POST SBE75-0081 | ab-ac | 1 |
| 576 | 400WSS4 | • CLIP 83930 | aa-ac | 1 |
| 580 | 4W0043 | • NUT - .190 DIA Optional Part AS41104 POST SBE75-0081 | ab-ac | 1 |
| 581 | 4W0115 | • BOLT - .190 DIA X 1.250 Optional Part AS48020 POST SBE75-0081 | ab-ac | 1 |
| 584 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE75-0081 | ab-ac | 1 |
| 586 | UP10481 | • SPACER - 20MM POST SBE75-0081 | ab-ac | 1 |
| 588 | 4W0001 | • NUT - .190 DIA Optional Part AS20624 POST SBE75-0081 | ab-ac | 1 |
| 600 | AS15777 | • • WIRE - THRUST U1653 | aa-ac | 2 |
| 601 | AS15701 | • • NUT - TUBE COUPLING U1653 | aa-ac | 2 |
| 602 | 5W8143 | • • FERRULE - ASSY ELBOW | aa-ac | 1 |
| 614 | UP11152 | • • BRACKET - INTER TUBE SUPPORT POST SBE75-0081 | ab-ac | 1 |
| 640 | AS15777 | • • WIRE - THRUST U1653 | aa-ac | 1 |
| 641 | AS15701 | • • NUT - TUBE COUPLING U1653 | aa-ac | 1 |
| 642 | AS15768 | • • FERRULE - ASSY U1653 | aa-ac | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

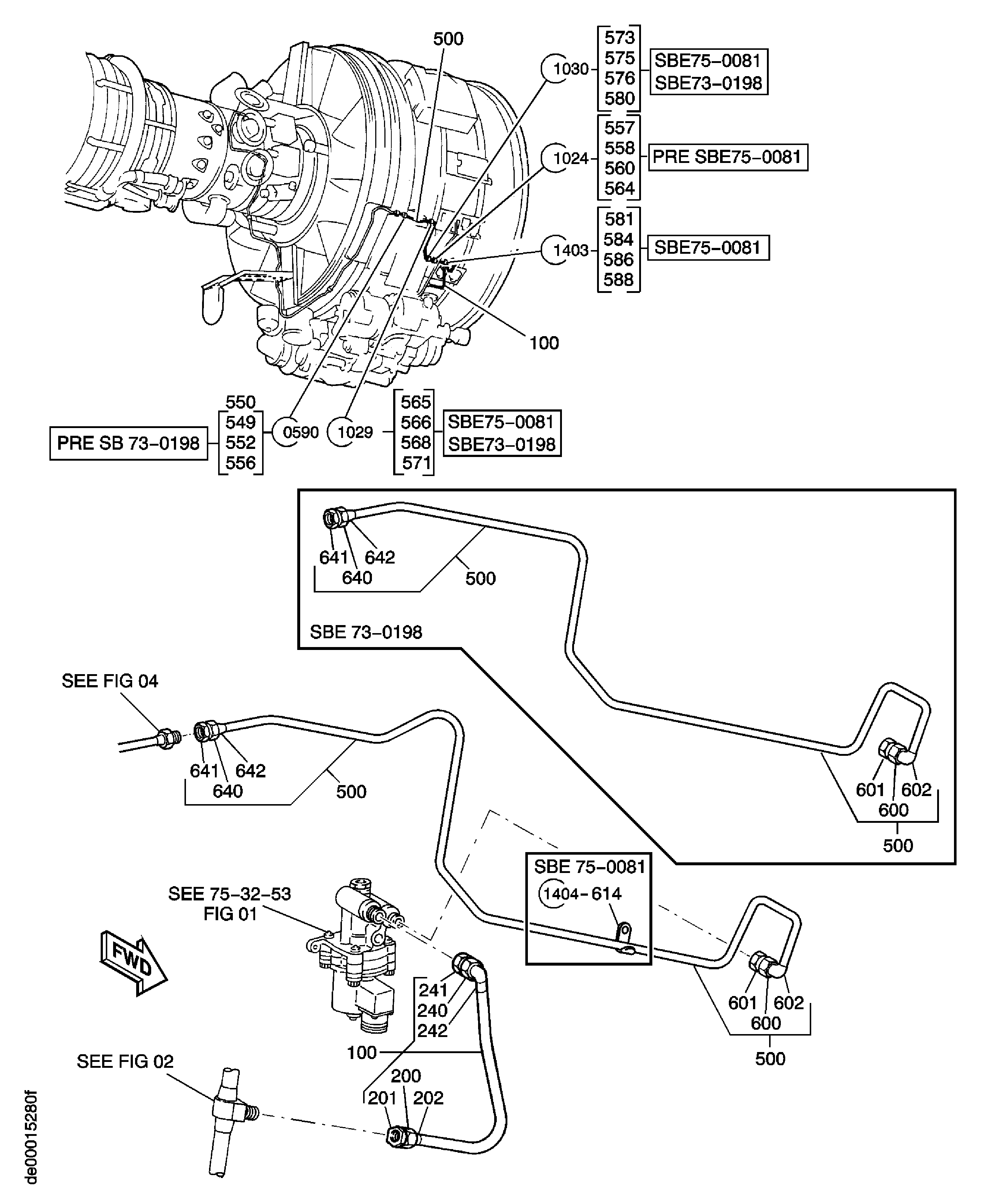

Figure: AIR-HP COMPRESSOR BLEED CONTROL TUBES
AIR-HPC BLEED CONTROL TUBES
