AIR-HPC STAGE 10 SOLENOID VALVE

DMC:V2500-A5-75-32-53-01A-941A-D|Issue No:003|Issue Date:2020-02-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A5

Fig. Item	Part No.	Description	Effect/Model Applic.	UPA
01
000	B75325301	AIR - HPC STAGE 10 SOLENOID VALVE, PRE SBE75-0081	aa
000	SBE0081-01	AIR - HPC STAGE 10 SOLENOID VALVE, PRE SBE75-0109	ab
000	SBE0109-01	AIR - HPC STAGE 10 SOLENOID VALVE	ac
400400	AC69574	• VALVE - SOLENOID 88041 PRE SBE75-0109	aa-ac	1
400400A	AA1060-00	• VALVE - SOLENOID K1037 ALT AA1064-00 POST SBE75-0109	aa-ac	1
-400400B	AA1064-00	• VALVE - SOLENOID K1037 ALT AA1060-00 POST SBE75-0109	aa-ac	REF

402402	4W0107	• BOLT - MACHINE DOUBLE HEX, .190 DIA X .750	aa-ac	3
404404	4W2621	• WASHER	aa-ac	3
406406	4W0043	• NUT, SELF LOCKING, ASSEMBLY OF - .190 DIA PRE SBE75-0081	aa	3
406406A	4W0001	• NUT, OPTION - .190 DIA POST SBE75-0081	ab-ac	3

500500	6A7556	• BRACKET POST SBE75-0081	ab-ac	1
510510	4W0103	• BOLT - .190 DIA X .500 Optional Part AS21408 POST SBE75-0081	ab-ac	2
512512	4W2621	• WASHER Optional Part AS12943 POST SBE75-0081	ab-ac	2
518518	4W0002	• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA Optional Part AS20625 POST SBE75-0081	ab-ac	1
520520	4W0164	• BOLT OPTION - .250 DIA X .625 Optional Part AS21510 POST SBE75-0081	ab-ac	1
570570	745-5135-501	• BRACKET - LINK 51563 POST SBE75-0081	ab-ac	1
573573	NAS6303U5	• BOLT 80205 POST SBE75-0081	ab-ac	1
574574	NAS6303U4	• BOLT 80205 POST SBE75-0081	ab-ac	1
598598	745-5143-501	• PACKING PIECE 51563 POST SBE75-0081	ab-ac	1
600600	745-5133-505	• BRACKET - RAFT 51563 POST SBE75-0081	ab-ac	1
610610	4W0002	• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA Optional Part AS20625 POST SBE75-0081	ab-ac	2
612612	4W0166	• BOLT - MACHINE, DOUBLE HEXAGON, .250 DIA X .750 Optional Part AS21512 POST SBE75-0081	ab-ac	2
650650	740-5134-503	• BRACKET 51563 POST SBE75-0081	ab-ac	1
651651	NAS1291C4M	• NUT 80205 POST SBE75-0081	ab-ac	2
652652	SP155E	• WASHER K7766 POST SBE75-0081	ab-ac	2
653653	740-5139-501	• PACKING - PIECE 51563 POST SBE75-0081	ab-ac	1
654654	NAS7204U6	• BOLT, CSK 80205 POST SBE75-0081	ab-ac	2
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

Manufacturer Code:	0AM53
Enterprise Name:	IAE INTERNATIONAL AERO ENGINES AG
BU Name:	NULL
Building:	SUITE 400
Street:	628 HEBRON AVENUE
City:	GLASTONBURY
State:	CT
Zip Code:	06033
Country:	USA

Manufacturer Code:	15653
Enterprise Name:	ALCOA FASTENING SYSTEMS
BU Name:	ALCOA FASTENING SYSTEMS
Department:	FULLERTON OPERATIONS PLANT 1
Street:	800 S.STATE COLLEGE BOULEVARD
City:	FULLERTON
State:	CA
Zip Code:	92831
Country:	USA
Phone Number:	1-714-871-1550
Fax Number:	1-714-680-0175
Internet:	www.alcoa.com

Manufacturer Code:	51563
Enterprise Name:	ROHR INC, A COLLINS AEROSPACE COMPANY
BU Name:	ROHR INC, A COLLINS AEROSPACE COMPANY
Street:	850 LAGOON DRIVE
City:	CHULA VISTA
State:	CA
Zip Code:	91910-2098
Country:	USA
Phone Number:	1-619-691-2089
Fax Number:	1-619-691-6195

Manufacturer Code:	80205
Enterprise Name:	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES ASSO OF AMERICAN, INC
BU Name:	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES ASSO OF AMERICAN, INC
Street:	NONE
City:	NONE
Country:	USA
Phone Number:	NONE

Manufacturer Code:	88041
Enterprise Name:	AIR CORPS STANDARD

Manufacturer Code:	96906
Enterprise Name:	MILITARY STANDARDS MANUAL 4120 3-M
BU Name:	MILITARY STANDARDS MANUAL 4120 3-M
Street:	NONE
City:	NONE
Country:	USA
Phone Number:	NONE

Manufacturer Code:	K1037
Enterprise Name:	MEGGITT AEROSPACE LTD

Manufacturer Code:	K7766
Enterprise Name:	K7766
BU Name:	British Standards Institution
Street:	2 Park Street
City:	London
Zip Code:	AW1A 2BS
Country:	England

Manufacturer Code:	U1653
Enterprise Name:	Society Of British Aerospace Companies, LTD.

Part Number:	740-5134-503
Part Name:	BRACKET
Manufacturer Code:	51563

Part Number:	AS12943
Part Name:	WASHER - FLAT
Manufacturer Code:	U1653

Part Number:	AS20624
Part Name:	NUT, SELF LOCKING DBL HEX - .190 DIA
Manufacturer Code:	U1653

Part Number:	AS20625
Part Name:	NUT, SELF LOCKING, BIHEX, .250 DIA
Manufacturer Code:	U1653
Unit Of Issue:	EA

Part Number:	AS21412
Part Name:	BOLT - 0.190 DIA X 0.750
Manufacturer Code:	U1653

Part Number:	AS21512
Part Name:	BOLT - 0.25 DIA X 0.750
Manufacturer Code:	U1653

Part Number:	AS41104
Part Name:	NUT - 0.19 DIA
Manufacturer Code:	U1653

AIR-HPC STAGE 10 SOLENOID VALVE

Export Control

Copyright

Applicability

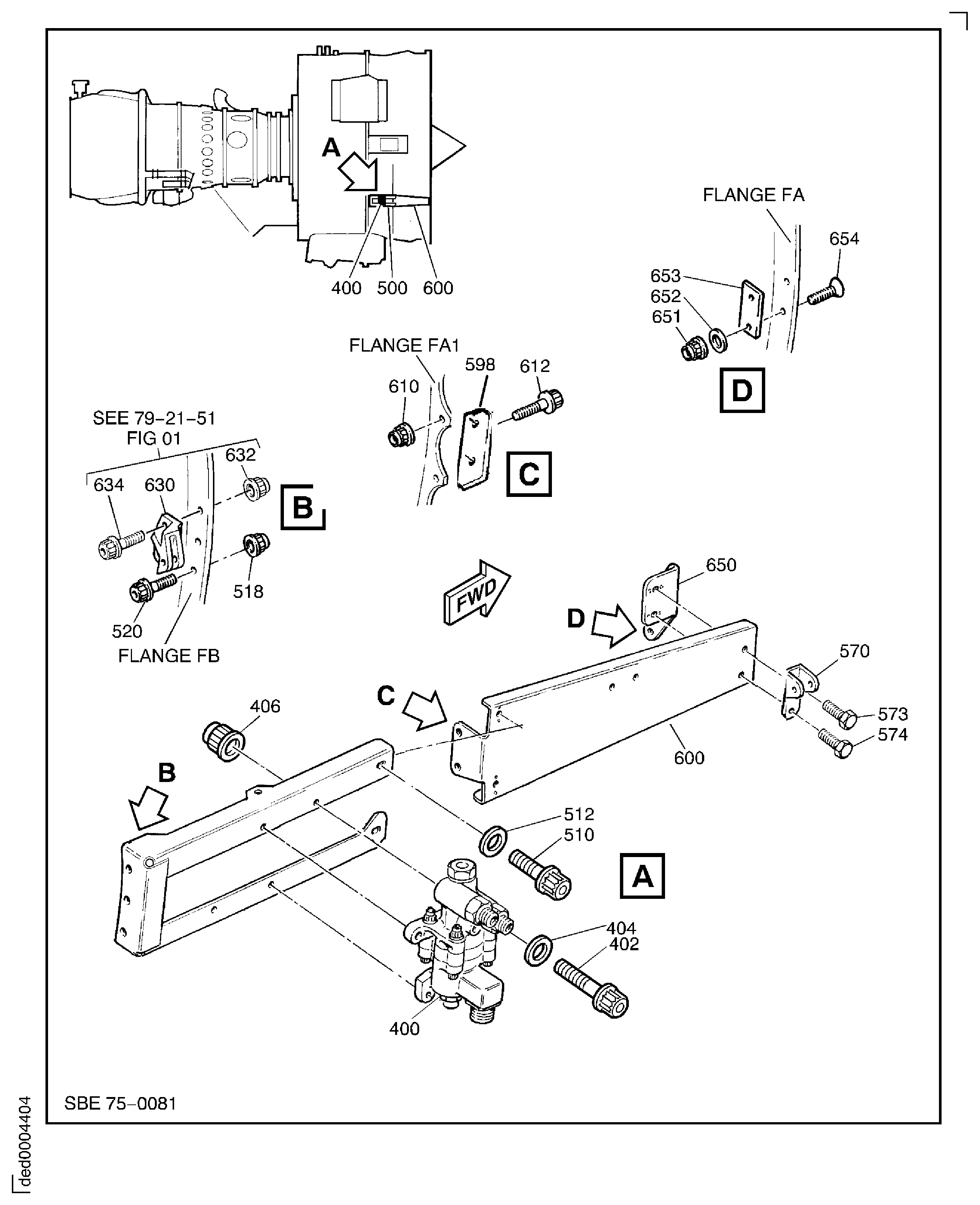

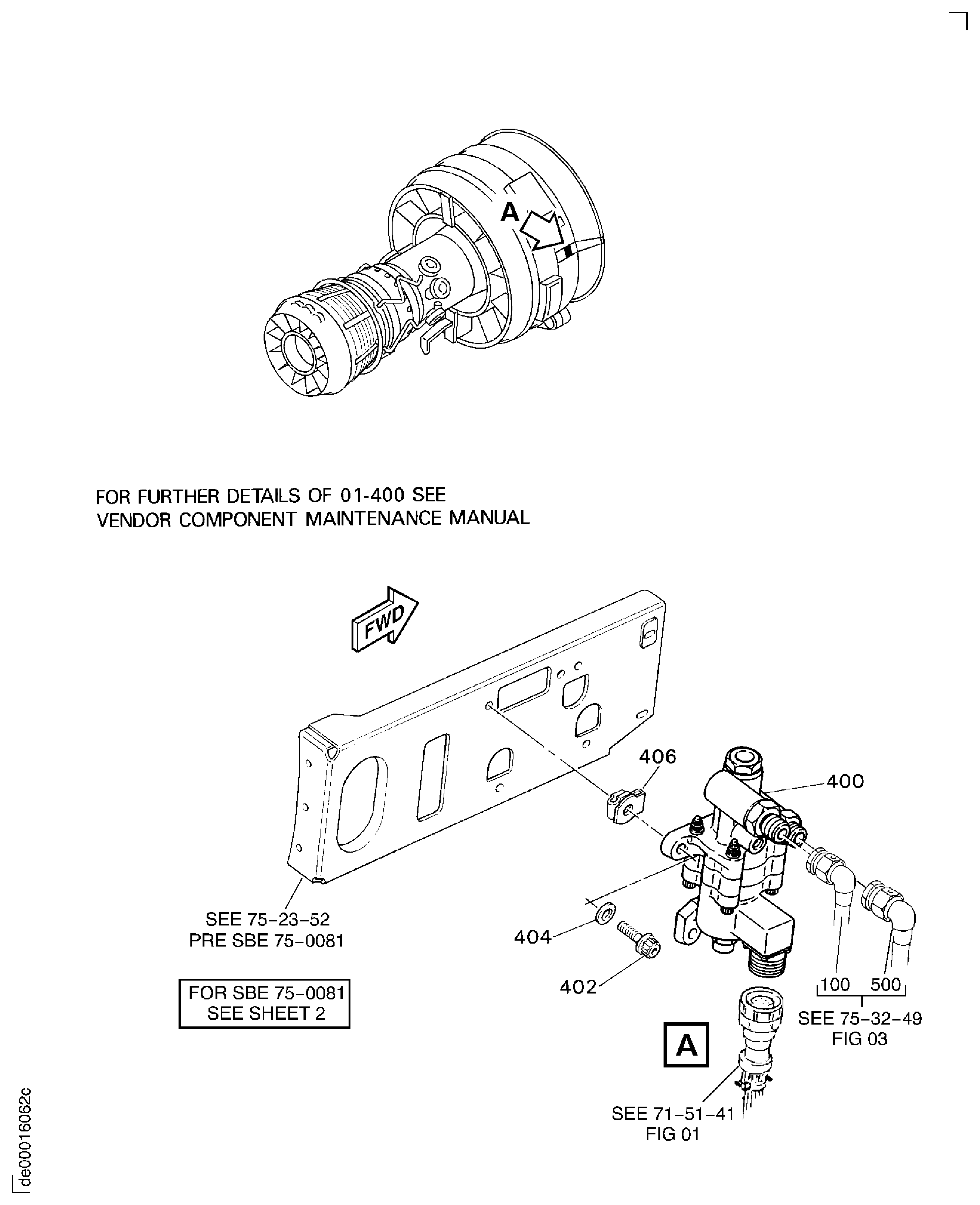

Figure: AIR-HPC STAGE 10 SOLENOID VALVE
