DMC:V2500-A5-75-41-15-05A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 05 | ||||
| B75411505 | NACELLE TEMPERATURE SENSOR, PRE SBE72-0189 | aa | ||
| SBE0189-01 | NACELLE TEMPERATURE SENSOR | ab | ||
| 010 | 740-5081-507 | • • BRACKET 51563 PRE SBE72-0189 | aa | 1 |
| 015 | AS21408 | • • BOLT - BIHEX HD, .190 DIA X .500 U1653 PRE SBE72-0189 | aa | 2 |
| 020 | SP154D | • • WASHER - .190 DIA K7766 PRE SBE72-0189 | aa | 2 |
| 025 | AS20624 | • • NUT - SELF LOCKING,BIHEX, .190 DIA U1653 PRE SBE72-0189 | aa | 2 |
| 030 | 4W0103 | • BOLT - .190 DIA X .500 POST SBE72-0189 | ab | 1 |
| 030A | 4W0103 | • BOLT - .190 DIA X .500 POST SBE72-0189 | ab | 1 |
| 035 | SP154D | • WASHER - .190 DIA K7766 POST SBE72-0189 | ab | 1 |
| 035A | SP154D | • WASHER - .190 DIA K7766 POST SBE72-0189 | ab | 1 |
| 040 | 4W0001 | • NUT - .190 DIA POST SBE72-0189 | ab | 1 |
| 040A | 4W0001 | • NUT - .190 DIA POST SBE72-0189 | ab | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

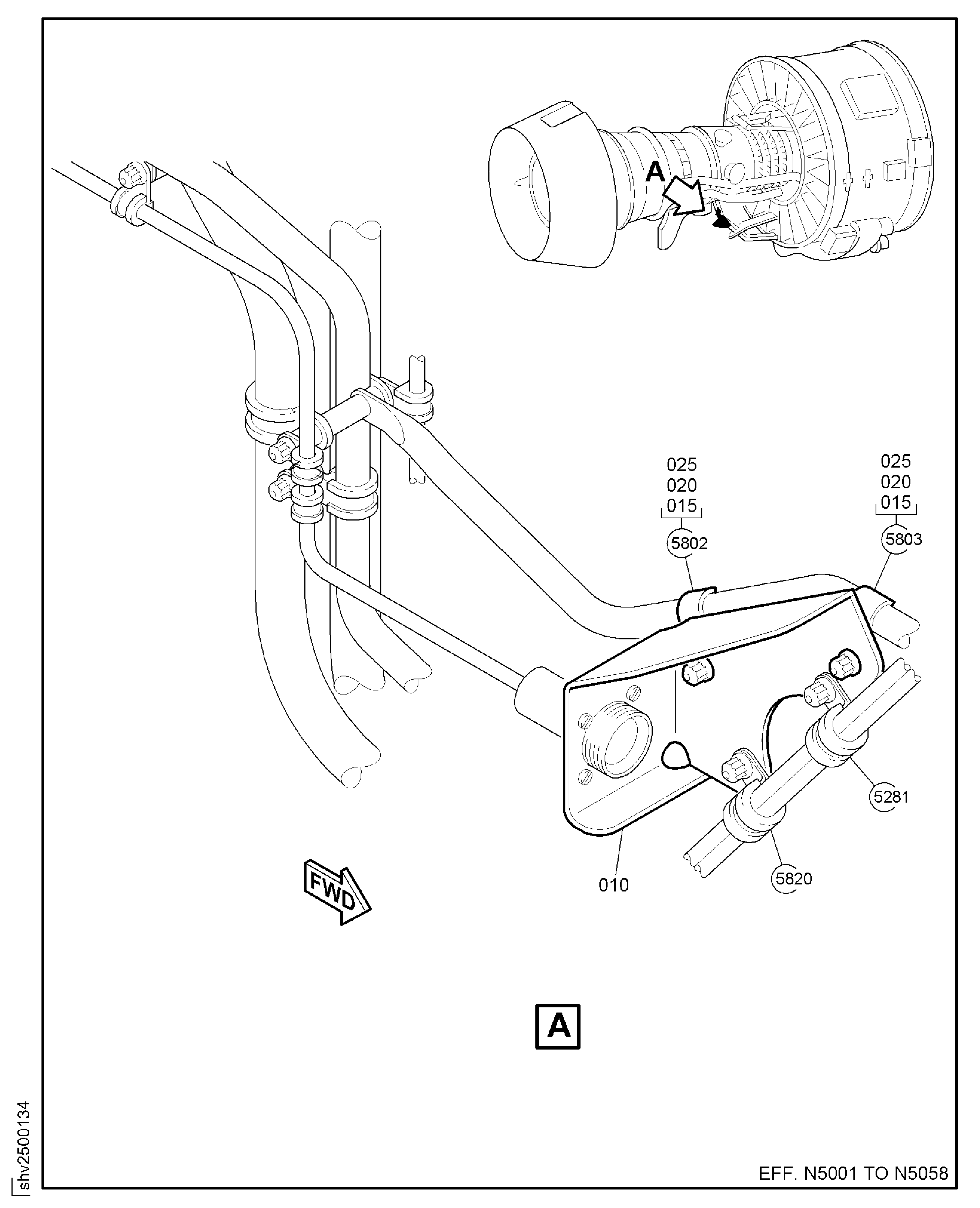

Figure: NACELLE TEMPERATURE SENSOR
NACELLE TEMPERATURE SENSOR
