DMC:V2500-A5-77-21-15-20A-941A-DIssue No:003.00Issue Date:2018-02-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 20 | ||||
| B77211520 | ENGINE INDICATING-EGT THERMOCOUPLE, PRE SBE77-0011 | aa | ||
| SBE0011-01 | ENGINE INDICATING-EGT THERMOCOUPLE, PRE SBE77-0016 | ab | ||
| SBE0016-01 | ENGINE INDICATING-EGT THERMOCOUPLE | ac | ||
| 100 | 2A2159 | • THERMCPL - OPTION ALT 2A2160 PT01 PRE SBE77-0011 PRE SBE77-0016 | aa | 4 |
| -100A | 2A2160 | • THERMCPL - IMMERSION ALT 2A2224 (REF NO HAD19795) PRE SBE77-0011 | aa-ab | REF |
| -100B | 2A2224 | • THERMCPL - IMMERSION ALT 2A2159 (REF NO 792-6-20) PRE SBE77-0011 | aa-ab | REF |
| 100C | 2A4328 | • THERMCPL - IMMERSION 77445 (REF NO 30030-000) POST SBE77-0011 PRE SBE77-0016 | ab | 4 |
| 100D | 2A4529 | • THERMCPL - IMMERSION 77445 VENDOR P/N 30404-000 POST SBE77-0016 | ac | 4 |
| 120 | MS9575-04 | • BOLT 96906 | aa-ab | 8 |
| 140 | 2A2256 | • SEAL - RING, METAL | aa-ab | 8 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

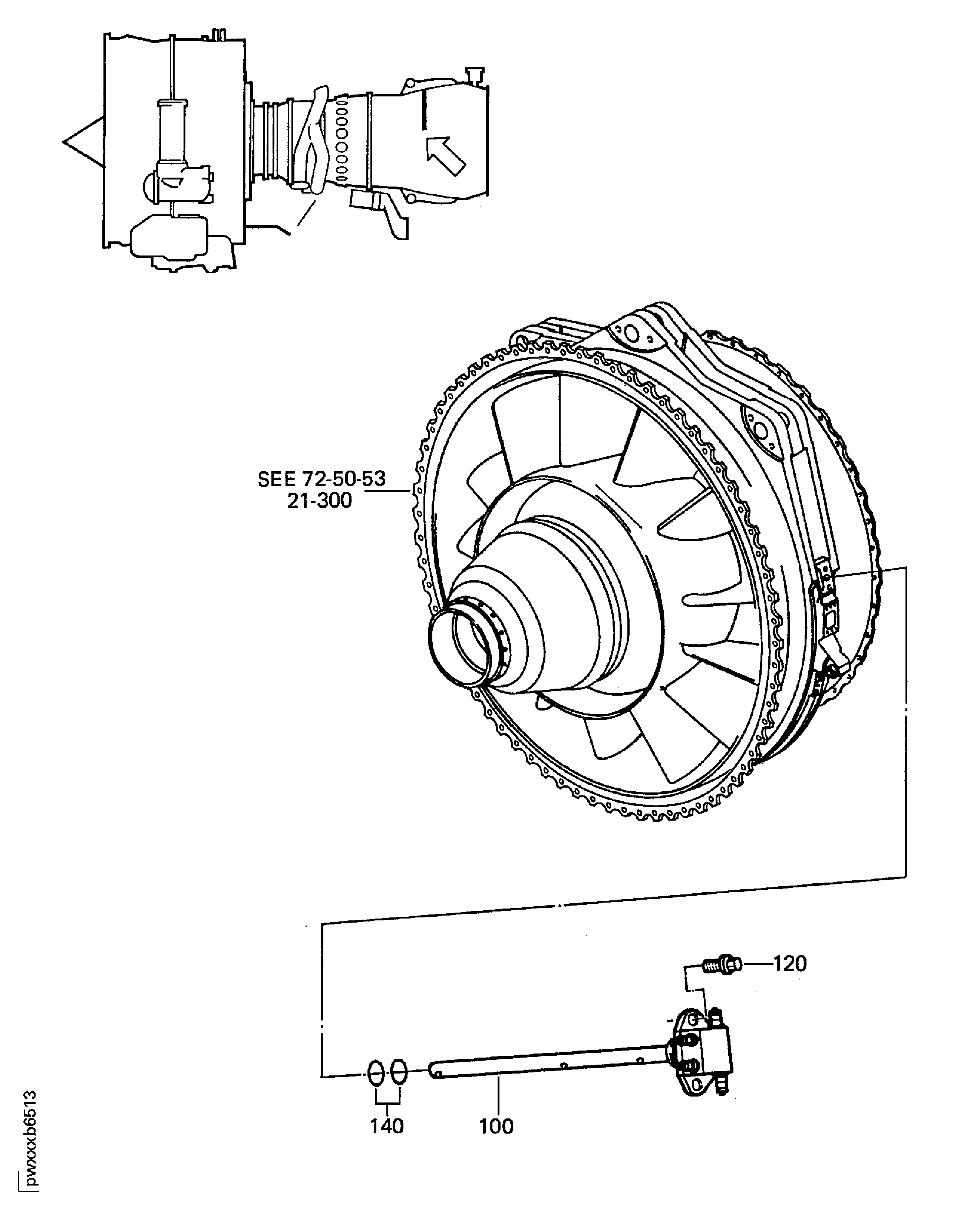

Figure: ENGINE INDICATING-EGT THERMOCOUPLE
EGT THERMOCOUPLE
