| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 25 | ||||
| B78327925 | EXHAUST-RIGHT C DUCT FIXED STRUCTURE | aa | ||
| 010 | 740-0358-510 | • • PANEL - HINGE ACCESS HINGE ACCESS 51563 | aa | 1 |
| 015 | NAS514P428-12P | • • SCREW 80205 | aa | 11 |
| 015A | NAS514P428-12P | • • SCREW 80205 | aa | 8 |
| 018 | 740-0104-199 | • • SHIM 51563 | aa | 3 |
| 020 | 740-0104-201 | • • SHIM 51563 | aa | 5 |
| 022 | 740-0104-203 | • • SHIM 51563 | aa | 1 |
| 025 | 740-0104-203 | • • SHIM 51563 | aa | 2 |
| 030 | MS21062-4 | • • • NUT - ANCHOR 96906 | aa | 3 |
| 034 | MS20426AD3-4 | • • • RIVET - SOLID CSK HEAD 96906 | aa | 6 |
| 036 | MS21076-4 | • • • NUT - SELF-LOCKING,2 LUG 96906 | aa | 5 |
| 039 | MS20426AD3-4 | • • • RIVET - SOLID CSK HEAD 96906 | aa | 5 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

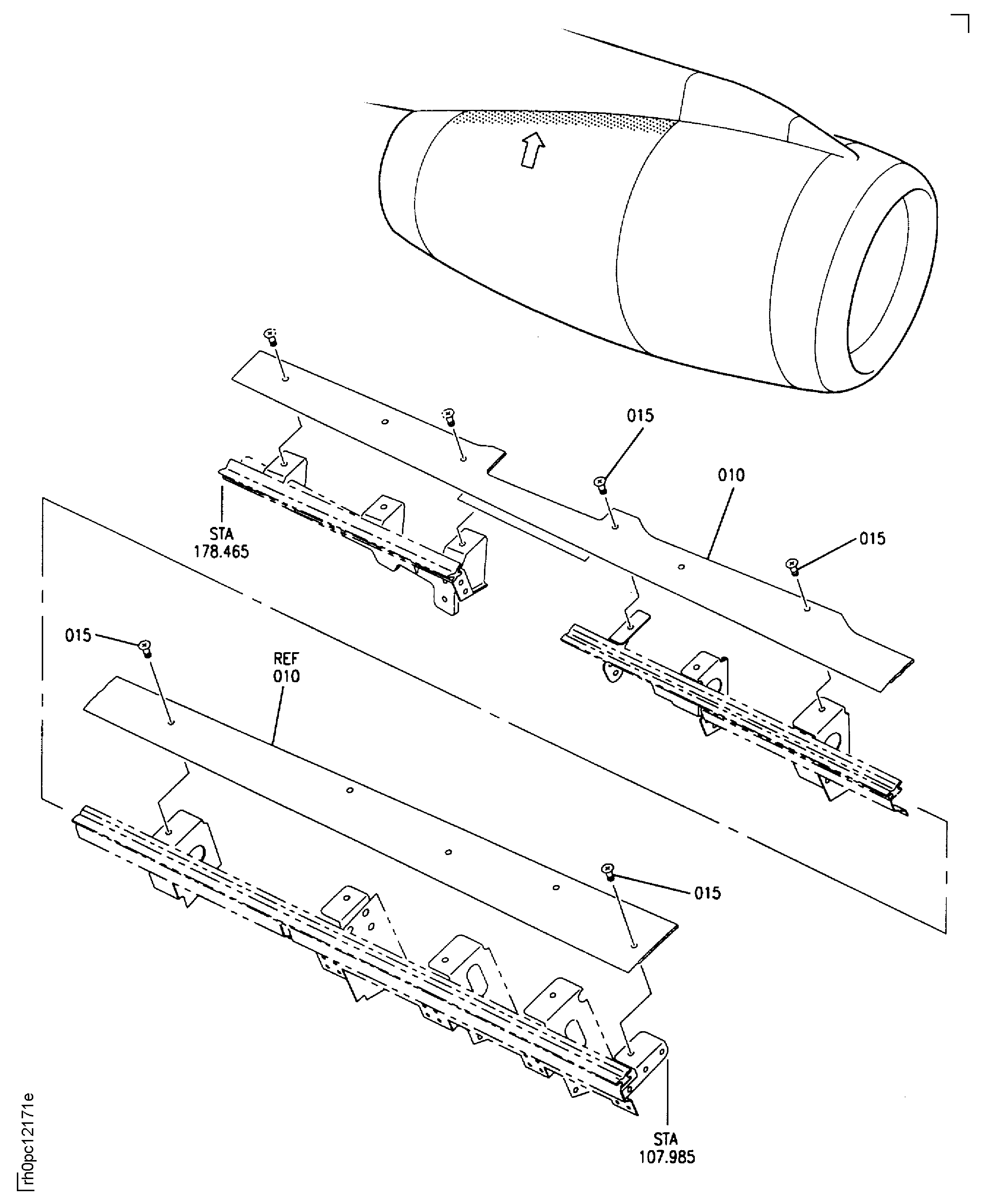

Figure: EXHAUST-RIGHT C DUCT FIXED STRUCTURE
PANEL INSTL RH SIDE ACCESS
