OIL-PRESSURE PUMP/FILTER HOUSING

DMC:V2500-A5-79-21-41-01A-941A-D|Issue No:005|Issue Date:2020-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A5

Fig. Item		Part No.	Description	Effect/Model Applic.	UPA
01
000		B79214101	OIL - PRESSURE PUMP/FILTER HOUSING, PRE SBE70-0992	aa
000		SBE0992-01	OIL - PRESSURE PUMP/FILTER HOUSING, PRE SBE79-0101	ab
000		SBE0101-01	OIL - PRESSURE PUMP/FILTER HOUSING	ac
001001		4A7110	PUMP - FILTER, ASSEMBLY OF PRE SBE79-0101	aa-ab	1
001001A		4A7110B	PUMP - OIL, PRESSURE, ASSEMBLY OF A3460 POST SBE79-0101	ac	1

030030		4W0002	• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA	aa-ac	6
032032		MS9321-10	• WASHER - FLAT, 0.500 X 0.276 X 0.062 96906	aa-ac	6
034034		AS3209-157	• PACKING - PREFORMED U1653	aa-ac	1

080080		4P7270	• GEAR - DRIVE, OIL PUMP	aa-ac	1

090090		4W0002	• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA	aa-ac	1
100100		MS9321-10	• WASHER - FLAT, 0.500 X 0.276 X 0.062 96906	aa-ac	1

200200		4B7307	• GEAR - DRIVE, ASSEMBLY OF	aa-ac	1
210210		4P7027	• • BOLT	aa-ac	1
230230		4P7308	• GEAR - DRIVEN	aa-ac	1

240240	X	AS15826	• NUT U1653 PRE SBE79-0101	aa-ab	1
250250		AS3208-08	• PACKING - PREFORMED U1653	aa-ac	1

260260		4B7097	• VALVE - PRESS PRIM, ASSEMBLY OF PRE SBE79-0101	aa-ab	1
260260A		MS9902-08	• PLUG - MACHINE THREAD 96906 POST SBE79-0101	ac	1
300300		4A7042	• COVER - OIL FILTER, ASSEMBLY OF	aa-ac	1

310310		4W0002	• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA	aa-ac	6
320320		MS9321-10	• WASHER - FLAT, 0.500 X 0.276 X 0.062 96906	aa-ac	6
330330		AS3209-153	• PACKING - PREFORMED U1653	aa-ac	1

340340		4P7189	• • COVER PRE SBE70-0992	aa	1
340340A		4T0560	• • COVER A3460 ALT 4P7189 POST SBE70-0992	ab-ac	1
-340340B		4P7189	• • COVER ALT 4P7386 POST SBE70-0992	ab-ac	REF
-340340C		4P7386	• • COVER - OIL FILTER ALT 4T0560 POST SBE70-0992	ab-ac	REF
350350		4W0002	• • NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA Optional Part AS20625	aa-ac	1
360360		MS9321-10	• • WASHER - FLAT, 0.500 X 0.276 X 0.062 96906	aa-ac	1
370370		4P7038	• • RING	aa-ac	1
380380		4P7037	• • SPRING	aa-ac	1
390390		4P7036	• • BOLT - SPECIAL	aa-ac	1
420420		4P7043	• COVER	aa-ac	1

430430		4W0164	• BOLT OPTION - .250 DIA X .625	aa-ac	3
440440		MS9321-10	• WASHER - FLAT, 0.500 X 0.276 X 0.062 96906	aa-ac	3
450450		AS3209-122	• PACKING - PREFORMED U1653	aa-ac	1
460460		AS3209-119	• PACKING - PREFORMED U1653	aa	1

480480		4A7051	• VALVE - ANTIDRAIN, ASSEMBLY OF	aa-ac	1
490490		AS3215-113	• • RING - RETAINING U1653	aa-ac	1
500500		4P7124	• • RING	aa-ac	1
510510		4P7121	• • SPRING	aa-ac	1
520520		4P7122	• • VALVE	aa-ac	1
530530		4P7123	• • CASING	aa-ac	1
550550		4A7062	• VALVE - RELIEF, ASSEMBLY OF	aa-ac	1

560560		4W0164	• BOLT OPTION - .250 DIA X .625	aa-ac	2
570570		AS3209-116	• PACKING - PREFORMED U1653	aa	2

580580		AS3215-107	• • RING - RETAINING U1653	aa-ac	1
592592		4P7296CL01	• • RING	aa-ac	1
593593		4P7296CL02	• • RING	aa-ac	1
594594		4P7296CL03	• • RING	aa-ac	1
595595		4P7296CL04	• • RING	aa-ac	1
596596		4P7296CL05	• • RING	aa-ac	1
600600		4P7183	• • SPRING	aa-ac	1
610610		4P7186	• • VALVE PRE SBE79-0101	aa-ab	1
610610A		4P7383	• • VALVE ALT 4P7383-01 POST SBE79-0101	ac	1
-610610B		4P7383-01	• • VALVE A3460 ALT 4P7383-02 POST SBE79-0101	ac	REF
-610610C		4P7383-02	• • VALVE A3460 ALT 4P7383 POST SBE79-0101	ac	REF
620620		4P7184	• • CASING	aa-ac	1
650650	X	AS3208-04	• PACKING - PREFORMED U1653 PRE SBE79-0101	aa-ab	2
660660	X	4P7099	• ADAPTER - UNION PRE SBE79-0101	aa-ab	2
670670		4P7046	• FLANGE	aa-ac	1
680680		4W0164	• BOLT OPTION - .250 DIA X .625 Optional Part AS21510	aa-ac	1
690690		AS3209-204	• PACKING - PREFORMED U1653	aa-ac	1
700700		4W0004	• NUT - 0.375 DIA Optional Part AS20627	aa-ac	1
710710		4P7125	• SCREW - TRIM VALVE	aa-ac	1
720720		AS3209-110	• PACKING - PREFORMED U1653	aa-ac	1
730730		4P7129	• STRAINER	aa-ac	1
750750		4A7304	• CASING - OIL PUMP, ASSEMBLY OF PRE SBE79-0101	aa-ab	1
750750A		4A7304A	• CASE - OIL PUMP, ASSEMBLY OF A3460 POST SBE79-0101	ac	1
760760		4P7026	• • BOLT PRE SBE79-0101	aa-ab	4
760760A		4W1249	• • BOLT - 0.250 DIA X 0.938 Optional Part AS49915 POST SBE79-0101	ac	4
770770		4T7907	• • PACKING - PREFORMED	aa-ac	4
-780780		4B7306	• • COVER - ASSEMBLY OF	aa-ac	REF
-790790		4B7305	• • CASING - OIL, PUMP FILTER, ASSEMBLY OF PRE SBE79-0101	aa-ab	REF
-790790A		4B7376	• • CASING - OIL, PUMP FILTER, ASSEMBLY OF POST SBE79-0101	ac	REF
810810		MS21209F4-15L	• • • INSERT - WIRE, THREAD, 0.250 DIA 96906	aa-ac	13
830830		4P7106	• • • SUPPORT - FILTER	aa-ac	1
842842		MS51997E103P	• • • RING - LOCKING 96906	aa-ac	6
844844		MS51992C803-13	• • • STUD 96906	aa-ac	6
850850		4P7239	• PLATE - IDENTIFICATION PRE SBE79-0101	aa-ab	1
850850A		4P7374	• PLATE - IDENTIFICATION POST SBE79-0101	ac	1
855855		MS21318-1	• SCREW 96906	aa-ac	2
952952		AS3209-128	• PACKING - PREFORMED U1653	aa-ac	2
954954		4B0131	• STRAINER - PRESSURE PUMP, ASSEMBLY OF	aa-ac	1
962962		AS3209-116	• PACKING - PREFORMED U1653	aa-ac	4
964964		4P7045	• SLEEVE - PRESSURE PUMP	aa-ac	1
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

Manufacturer Code:	0AM53
Enterprise Name:	IAE INTERNATIONAL AERO ENGINES AG
BU Name:	NULL
Building:	SUITE 400
Street:	628 HEBRON AVENUE
City:	GLASTONBURY
State:	CT
Zip Code:	06033
Country:	USA

Manufacturer Code:	96906
Enterprise Name:	MILITARY STANDARDS MANUAL 4120 3-M
BU Name:	MILITARY STANDARDS MANUAL 4120 3-M
Street:	NONE
City:	NONE
Country:	USA
Phone Number:	NONE

Manufacturer Code:	A3460
Enterprise Name:	DELETED, SEE CAGE CODE U0406

Manufacturer Code:	U1653
Enterprise Name:	Society Of British Aerospace Companies, LTD.

Part Number:	4A7042
Part Name:	COVER - OIL FILTER, ASSEMBLY OF
Manufacturer Code:	0AM53

OIL-PRESSURE PUMP/FILTER HOUSING

Export Control

Copyright

Applicability

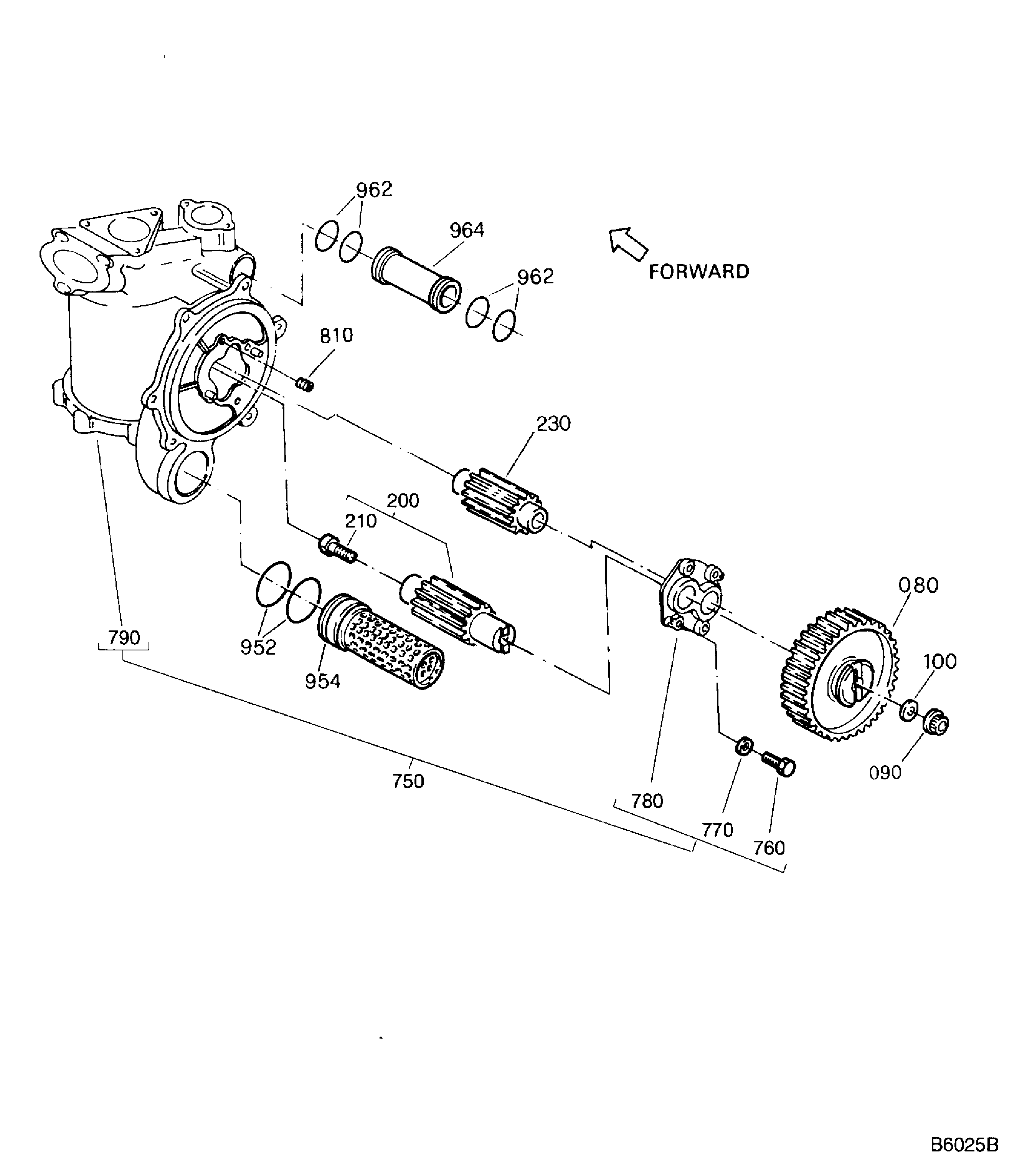

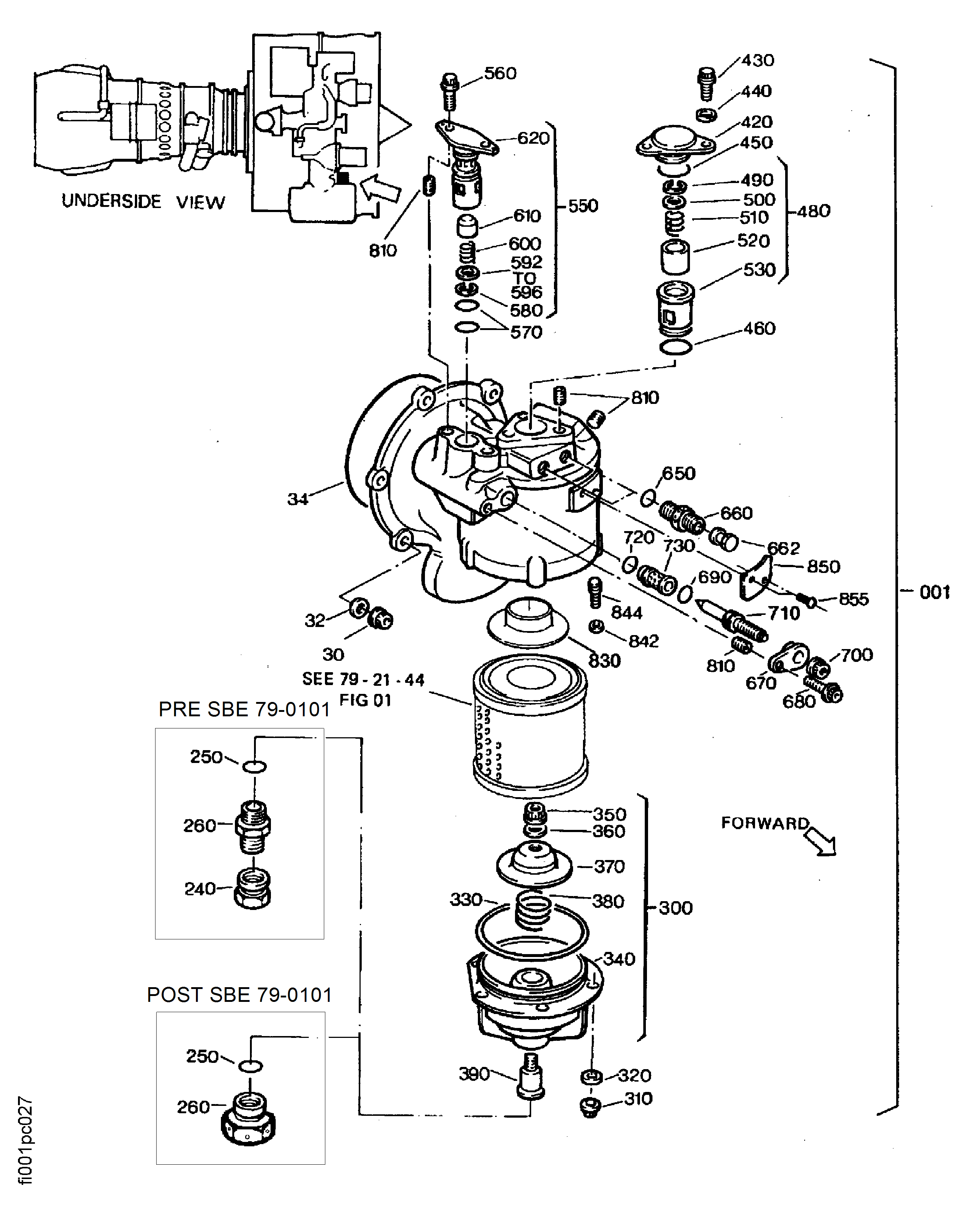

Figure: OIL-PRESSURE PUMP/FILTER HOUSING

PRESSURE OIL PUMP/FILTER HOUSING

PRESSURE OIL PUMP/FILTER HOUSING

Part Number:	AS20625
Part Name:	NUT, SELF LOCKING, BIHEX, .250 DIA
Manufacturer Code:	U1653
Unit Of Issue:	EA

Part Number:	AS20627
Part Name:	NUT - 0.375 DIA
Manufacturer Code:	U1653

Part Number:	AS49915
Part Name:	BOLT - 0.250 DIA X 0.938
Manufacturer Code:	U1653
