V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B79214801 | OIL-PRESSURE OIL TUBES-GEARBOX, PRE SBE72-0492 | aa | ||
| SBE0492-01 | OIL-PRESSURE OIL TUBES-GEARBOX | ab | ||
| 700 | 4B0265 | • DISTRBTR - INTRCH.CONT.DWG ALT 4B0267 | aa-ab | 1 |
| -700A | 4B0267 | • DISTRBTR - A/O OIL PRESS ALT 4B0257 | aa-ab | REF |
| -700B | 4B0257 | • DISTRBTR - A/O OIL PRESS ALT 4B0265 | aa-ab | REF |
| 720 | 4W0002 | • NUT - .250 DIA PRE SBE72-0492 | aa | 1 |
| 720A | 4W1246 | • BOLT - .250 DIA X .750 POST SBE72-0492 | ab | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

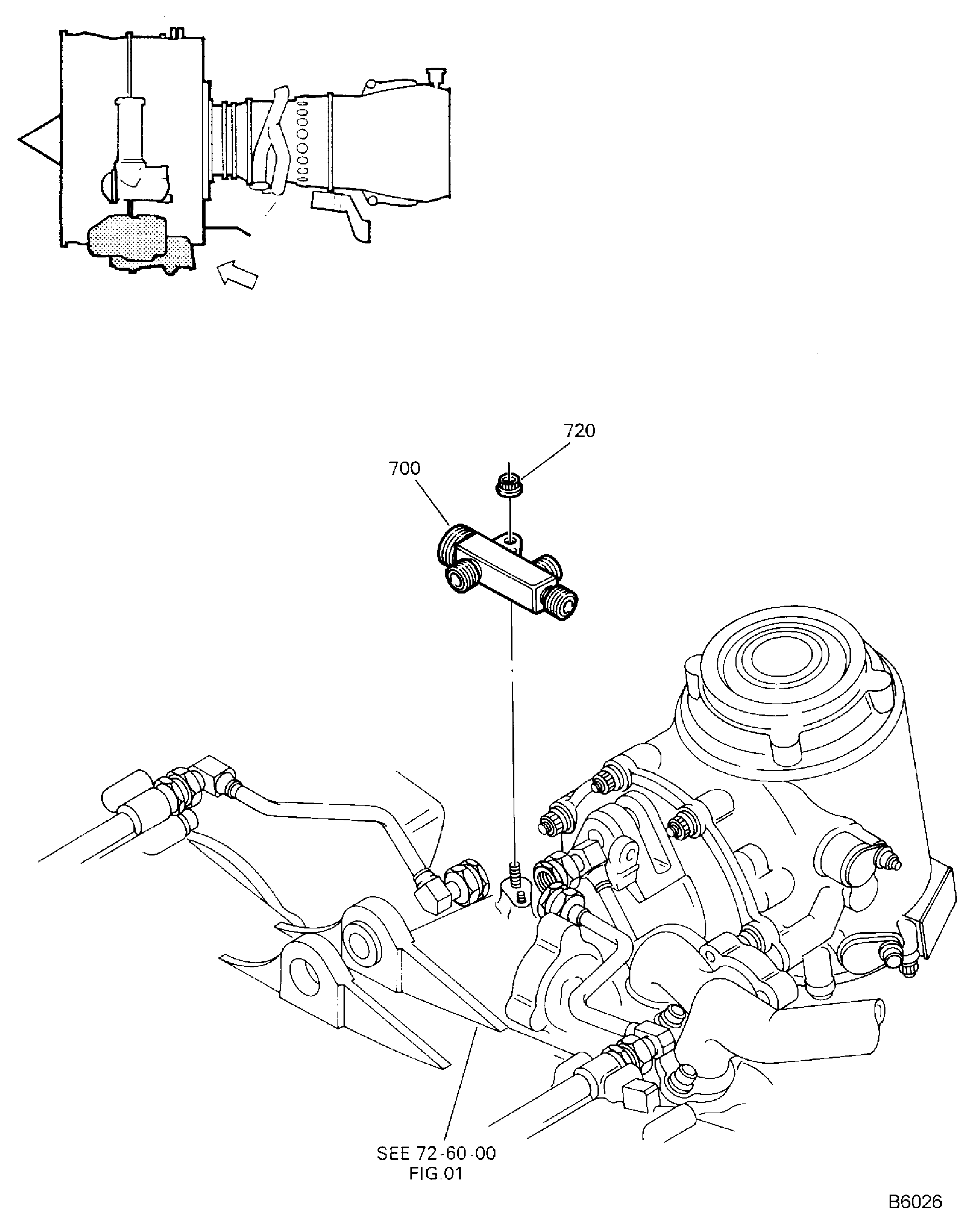

Figure: OIL-PRESSURE OIL TUBES-GEARBOX
PRESSURE OIL TUBES GEARBOX
