V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA | |
|---|---|---|---|---|---|
| 03 | |||||
| B79214903 | OIL-PRESSURE OIL TUBES-ENGINE, PRE SBE73-0078 | aa | |||
| SBE0078-01 | OIL-PRESSURE OIL TUBES-ENGINE | ab | |||
| 098 | AS43013-118 | • RING - SEALING TOROIDAL, 21.89MM I/D X 2.62MM U1653 | aa-ab/02 | 1 | |
| 100 | 5A8797 | • TUBE - ASSY OF ACOC TO FCOC PRE SBE73-0078 | aa/02 | 1 | |
| 100A | 6A6150 | • TUBE - A/O-OIL POST SBE73-0078 | ab/02 | 1 | |
| 100B | 6A6150 | • TUBE-OIL | aa-ab/03 | 1 | |
| 114 | 4W0170 | • BOLT - .250 DIA X 1.000 Optional Part AS48116 AS21516 | aa-ab/01 | 3 | |
| -114A | AS21516 | • BOLT - BIHEX HD, .250 DIA X 1.000 U1653 ALT 4W0170 | aa-ab/01 | REF | |
| 144 | 400WSS13 | • CLIP, LOOP TYPE 83930 | aa-ab/02 | 1 | |
| 144A | AS62413 | • CLIP - 20.62 MM (0.812) U1653 | aa-ab/03 | 1 | |
| 144B | AS62414 | • CLIP - 22.2 MM (0.875) U1653 | aa-ab/01 | 1 | |
| 200 | AS15784 | • • WIRE - THRUST U1653 | aa-ab/02 | 1 | |
| 201 | AS15708 | • • NUT - TUBE COUPLING U1653 | aa-ab/02 | 1 | |
| 202 | AS15736 | • • FERRULE - WELDING TUBE U1653 | aa-ab/02 | 1 | |
| 214 | 5W1093 | • • LUG - BRAZED | aa-ab/02 | 5 | |
| 242 | 5A8693 | • • ADAPTOR - STRAIGHT | aa-ab/02 | 1 | |
| 496 | AS43013-118 | • RING - SEALING TOROIDAL, 21.89MM I/D X 2.62MM U1653 | aa-ab/02 | 1 | |
| 500 | 5A8767 | • TUBE - OIL, ASSEMBLY OF | aa-ab/02 | 1 | |
| 500A | 6A6018 | • TUBE - A/O,OIL -F.C.O.C. TO D | aa-ab/02 | 1 | |
| 506 | 4W0170 | • BOLT - .250 DIA X 1.000 Optional Part AS21516 | aa-ab/01 | 3 | |
| -506A | AS21516 | • BOLT - BIHEX HD, .250 DIA X 1.000 U1653 ALT 4W0170 | aa-ab/01 | REF | |
| 557 | 4W0102 | • BOLT - .190 DIA X .438 Optional Part AS21407 | aa-ab/01 | 1 | |
| 558 | 5W1086 | • WASHER | aa-ab/02 | 1 | |
| 560 | AS62414 | • CLIP - 22.22 MM (0.875) U1653 | aa-ab/02 | 1 | |
| 564 | 4W0043 | • NUT - .190 DIA Optional Part AS41104 | aa-ab/01 | 1 | |
| 565 | 4W0102 | • BOLT - .190 DIA X .438 Optional Part AS21407 | aa-ab/01 | 1 | |
| 566 | 5W1086 | • WASHER | aa-ab/02 | 1 | |
| 568 | AS62414 | • CLIP - 22.22 MM (0.875) U1653 | aa-ab/02 | 1 | |
| 572 | 4W0043 | • NUT - .190 DIA Optional Part AS41104 | aa-ab/01 | 1 | |
| 602 | 5A8693 | • • ADAPTOR - STRAIGHT | aa-ab/02 | 1 | |
| 614 | UP11167 | • • BRACKET - INTER TUBE SUPPORT | aa-ab/02 | 2 | |
| 615 | UP11776 | • • CLIP | aa-ab/02 | 1 | |
| 618 | 5W8125 | • • ADAPTOR - TEE | aa-ab/02 | 1 | |
| 622 | X | 6A5522 | • • ADAPTOR | aa-ab/02 | 1 |
| 640 | AS15784 | • • WIRE - THRUST U1653 | aa-ab/02 | 1 | |
| 641 | AS15708 | • • NUT - TUBE COUPLING U1653 | aa-ab/02 | 1 | |
| 642 | 5W0058 | • • FERRULE | aa-ab/02 | 1 | |
| 642A | AS15736 | • • FERRULE - WELDING TUBE U1653 | aa-ab/02 | 1 | |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | |||||

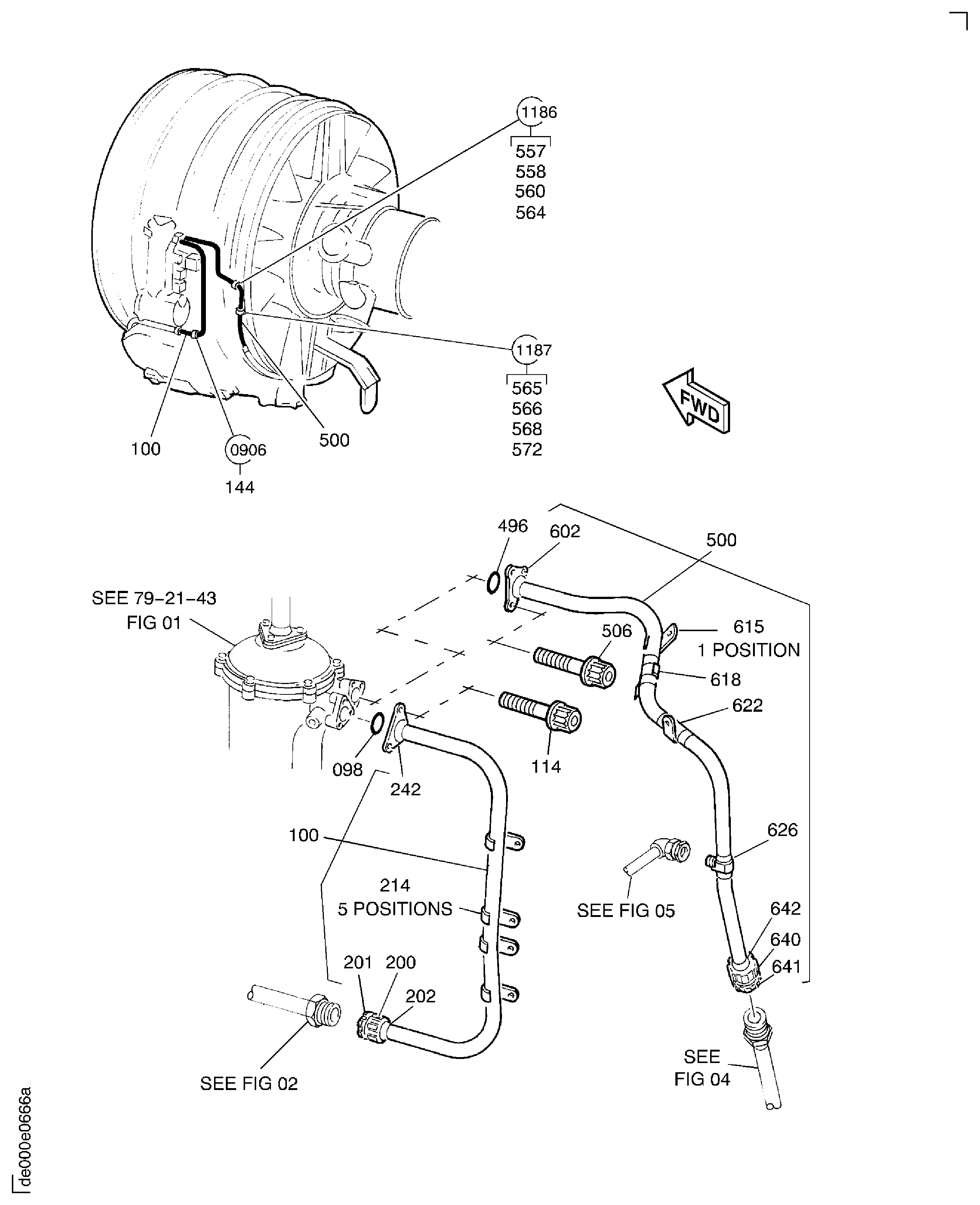

Figure: OIL-PRESSURE OIL TUBES-ENGINE
PRESSURE OIL TUBES ENGINE
