| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 05 | ||||
| B79214905 | OIL-PRESSURE OIL TUBES-ENGINE | aa | ||
| 100 | 6A6019 | • TUBE - A/O | aa | 1 |
| 149 | 4W0105 | • BOLT - .190 DIA X .625 | aa | 1 |
| 150 | 5W1086 | • WASHER | aa | 1 |
| 152 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 | aa | 1 |
| 155 | UP10478 | • SPACER - 5MM | aa | 1 |
| 156 | 4W0043 | • NUT - .190 DIA | aa | 1 |
| 176 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 | aa | 1 |
| 184 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 | aa | 1 |
| 192 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 | aa | 1 |
| 200 | AS15777 | • • WIRE - THRUST U1653 | aa | 1 |
| 201 | AS15701 | • • NUT - TUBE COUPLING U1653 | aa | 1 |
| 202 | K17404 | • • FERRULE | aa | 1 |
| 214 | UP11152 | • • BRACKET - INTER TUBE SUPPORT | aa | 2 |
| 240 | AS15777 | • • WIRE - THRUST U1653 | aa | 1 |
| 241 | AS15701 | • • NUT - TUBE COUPLING U1653 | aa | 1 |
| 242 | K17404 | • • FERRULE | aa | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

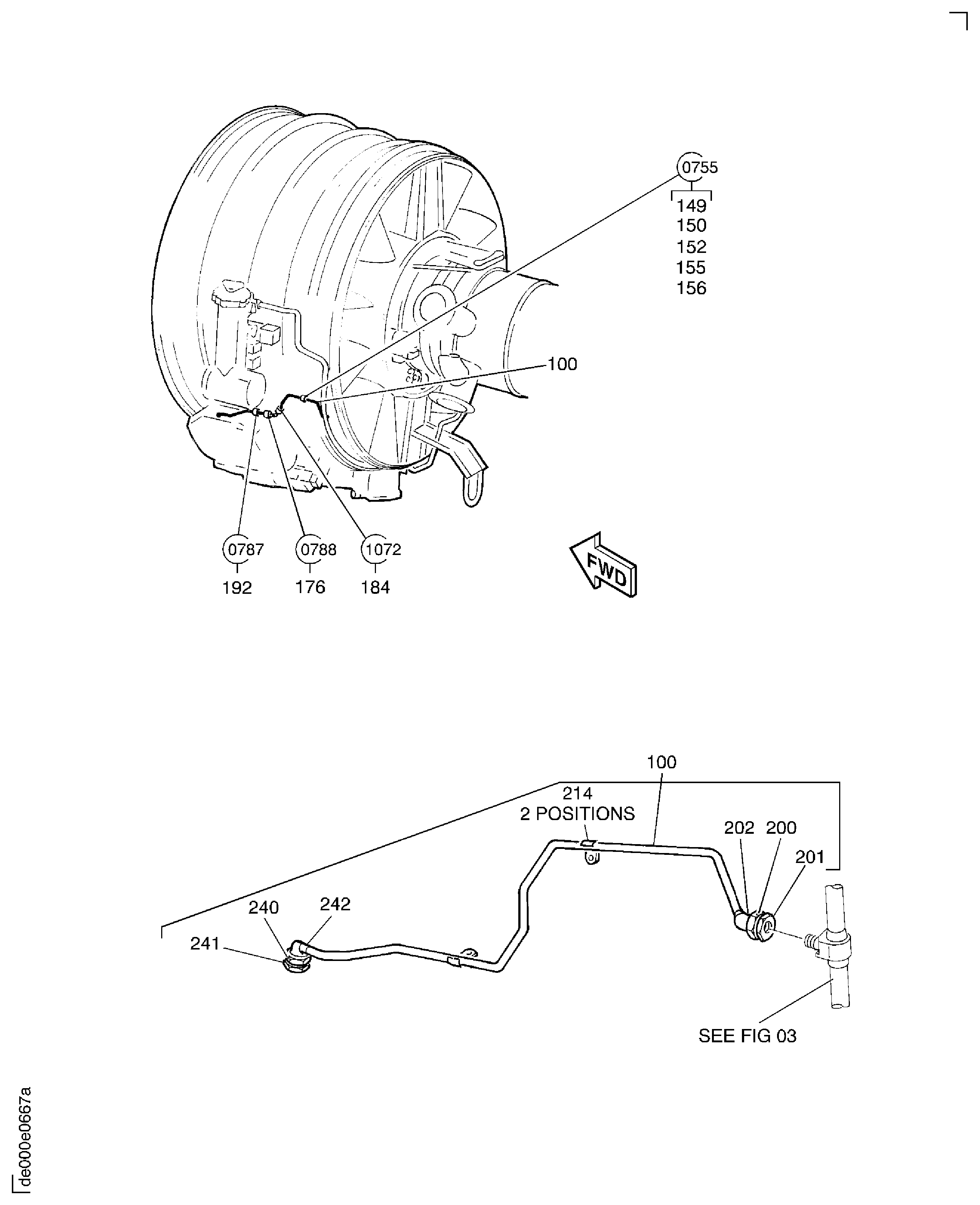

Figure: OIL-PRESSURE OIL TUBES-ENGINE
PRESSURE OIL TUBES ENGINE
