DMC:V2500-A5-79-21-49-06A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 06 | ||||
| - | B79214906 | OIL-PRESSURE OIL TUBES-ENGINE, PRE SBE73-0061 | aa | |
| - | SBE0061-01 | OIL-PRESSURE OIL TUBES-ENGINE, PRE SBE70-0568 | ab | |
| - | SBE0568-01 | OIL-PRESSURE OIL TUBES-ENGINE | ac | |
| 070 | 6A4687 | • BRACKET PRE SBE70-0568 | aa-ac/01 | 1 |
| 070A | 6A4687 | • BRACKET ALT 5W8447 POST SBE70–0568 | ac/01 | 1 |
| 070B | 5W8447 | • BRACKET ALT 6A4687 POST SBE70–0568 | ac/01 | 1 |
| 071 | 4W0002 | • NUT - .250 DIA | aa-ac/01 | 2 |
| 074 | 4W0164 | • BOLT - .250 DIA X .625 | aa-ac/01 | 2 |
| 100 | 5A8778 | • TUBE - ASSY OIL FEED PRE SBE73–0061 | aa/02 | 1 |
| 100A | 6A5348 | • TUBE - A/O -OIL-FEED TO GEARBOX | aa-ac/01 | 1 |
| 125 | 4W0102 | • BOLT - .190 DIA X .438 | aa-ac/01 | 1 |
| 126 | 5W1086 | • WASHER | aa-ac/01 | 1 |
| 128 | 400WSS8 | • CLIP 83930 PRE SBE73–0061 | aa/02 | 1 |
| 128A | AS62408 | • CLIP, 12,70 MM (0.500) U1653 | aa-ac/01 | 1 |
| 132 | 4W0043 | • NUT - .190 DIA | aa-ac/01 | 1 |
| 200 | AS15781 | • • WIRE, THRUST U1653 PRE SBE73–0061 | aa/02 | 2 |
| 200A | AS15781 | • • WIRE, THRUST U1653 | aa-ac/01 | 1 |
| 201 | AS15705 | • • NUT, TUBE COUPLING U1653 PRE SBE73–0061 | aa/02 | 2 |
| 201A | AS15781 | • • WIRE, THRUST U1653 | aa-ac/01 | 1 |
| 202 | 5W8156 | • • FERRULE PRE SBE73–0061 | aa/02 | 1 |
| 202A | K17416 | • • FERRULE | aa-ac/01 | 1 |
| 240 | AS15781 | • • WIRE, THRUST U1653 POST SBE73–0061 | ab-ac/02 | 1 |
| 240A | AS15781 | • • WIRE, THRUST U1653 | aa-ac/01 | 1 |
| 241 | AS15705 | • • NUT, TUBE COUPLING U1653 POST SBE73–0061 | ab-ac/02 | 1 |
| 241A | AS15705 | • • NUT, TUBE COUPLING U1653 | aa-ac/01 | 1 |
| 242 | 5W1684 | • • FERRULE PRE SBE73–0061 | aa/02 | 1 |
| 242A | AS15730 | • • FERRULE, WELDING TUBE U1653 | aa-ac/01 | 1 |
| 478 | MS16625-4056 | • RING - RETAINING 96906 | aa-ac/01 | 1 |
| 481 | 6A5442 | • RESTRICTOR | aa-ac/01 | 1 |
| 500 | 5A8779 | • TUBE - ASSY OIL FEED TO GEAR PRE SBE73–0061 | aa/02 | 1 |
| 500A | 6A5349 | • TUBE - A/O -OIL-DISCON TO 5 W | aa-ac/01 | 1 |
| 525 | 4W0102 | • BOLT - .190 DIA X .438 | aa-ac/01 | 1 |
| 526 | 5W1086 | • WASHER | aa-ac/01 | 1 |
| 528 | 400WSS8 | • CLIP 83930 PRE SBE73–0061 | aa/02 | 1 |
| 528A | AS62408 | • CLIP, 12,70 MM (0.500) U1653 | aa-ac/01 | 1 |
| 532 | 4W0043 | • NUT - .190 DIA | aa-ac/01 | 1 |
| 602 | 5A8175 | • • HOUSING - RESTRICTOR | aa-ac/01 | 1 |
| 640 | AS15781 | • • WIRE, THRUST U1653 | aa-ac/01 | 1 |
| 641 | AS15705 | • • NUT, TUBE COUPLING U1653 | aa-ac/01 | 1 |
| 642 | K17416 | • • FERRULE | aa-ac/01 | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

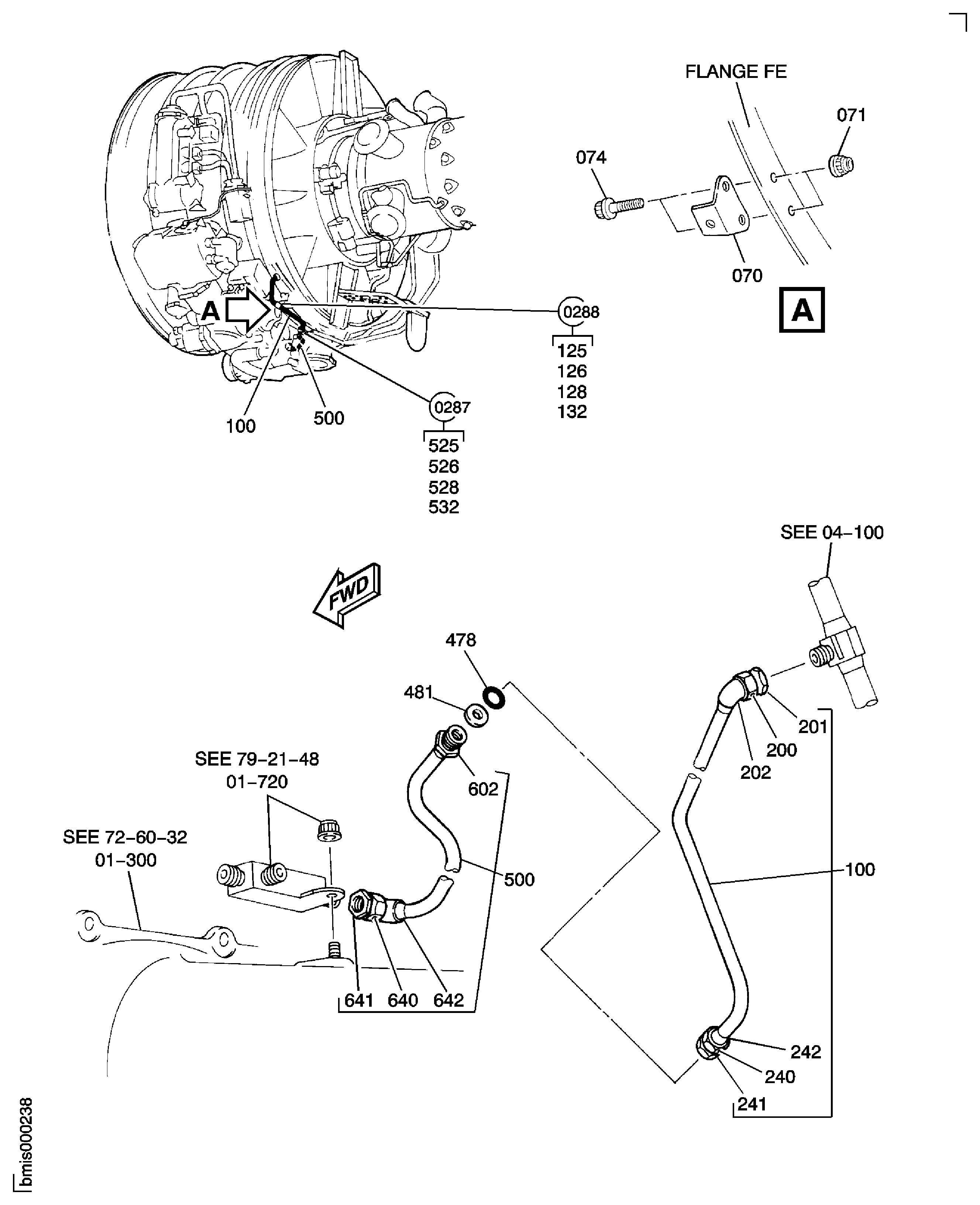

Figure: Engine Pressure Oil Tubes
Engine Pressure Oil Tubes
