DMC:V2500-A5-79-21-49-15A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 15 | ||||
| - | B79214915 | OIL-PRESSURE OIL TUBES-ENGINE, PRE SBE70-0536 | aa | |
| - | SBE0536-01 | OIL-PRESSURE OIL TUBES-ENGINE, PRE SBE79-0098 | ab | |
| - | SBE0098-01 | OIL-PRESSURE OIL TUBES-ENGINE | ac | |
| 488 | MS16625-4037 | • RING, RETAINING 96906 | aa-ac/01 | 1 |
| 491 | 6A5443 | • RESTRCTR | aa-ac/01 | 1 |
| 500 | 5R8084 | • TUBE - A/O NO.5 OIL FEED, .3125O/D X .028T | aa-ac/01 | 1 |
| 525 | 4W0119 | • BOLT - .190 DIA X 1.500 PRE SBE79-0098 | aa-ab/02 | 1 |
| 525A | 4W0119 | • BOLT - .190 DIA X 1.500 | aa-ac/03 | 1 |
| 525B | 4W0116 | • BOLT - .190 DIA X 1.312 POST SBE79-0098 | ac/01 | 1 |
| 526 | 5W1086 | • WASHER | aa-ac/01 | 1 |
| 528 | 5W1110 | • CLIP | aa-ac/01 | 1 |
| 530 | 5W1033 | • SPACER - (25MM) PRE SBE70-0536 | aa/02 | 1 |
| -530A | 5W1033 | • SPACER - (25MM) ALT UP10482 POST SBE70-0536 | ab-ac/03 | REF |
| 530B | UP10482 | • SPACER, 25 MM ALT 5W1033 POST SBE70-0536 | ab-ac/01 | 1 |
| -530C | 5W1033 | • SPACER - (25MM) ALT UP10482 POST SBE70-0536 PRE SBE79-0098 | ab/01 | REF |
| 530D | UP10481 | • SPACER - 20MM POST SBE79-0098 | ac/01 | 1 |
| 532 | 4W0043 | • NUT - .190 DIA | aa-ac/01 | 1 |
| 533 | 4W0102 | • BOLT - .190 DIA X .438 | aa-ac/01 | 1 |
| 534 | 5W1086 | • WASHER | aa-ac/01 | 1 |
| 536 | 5W1110 | • CLIP | aa-ac/01 | 1 |
| 540 | 4W0043 | • NUT - .190 DIA | aa-ac/01 | 1 |
| 602 | 5T8181 | • • UNION | aa-ac/01 | 1 |
| 612 | 5W1098 | • • SLEEVE - HALF | aa-ac/01 | 4 |
| 614 | 5W1060 | • • LUG, BRAZED | aa-ac/01 | 4 |
| 640 | AS15778 | • • WIRE, THRUST U1653 | aa-ac/01 | 1 |
| 641 | AS15702 | • • NUT, TUBE COUPLING U1653 | aa-ac/01 | 1 |
| 642 | AS15724 | • • FERRULE, WELDING TUBE U1653 | aa-ac/01 | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

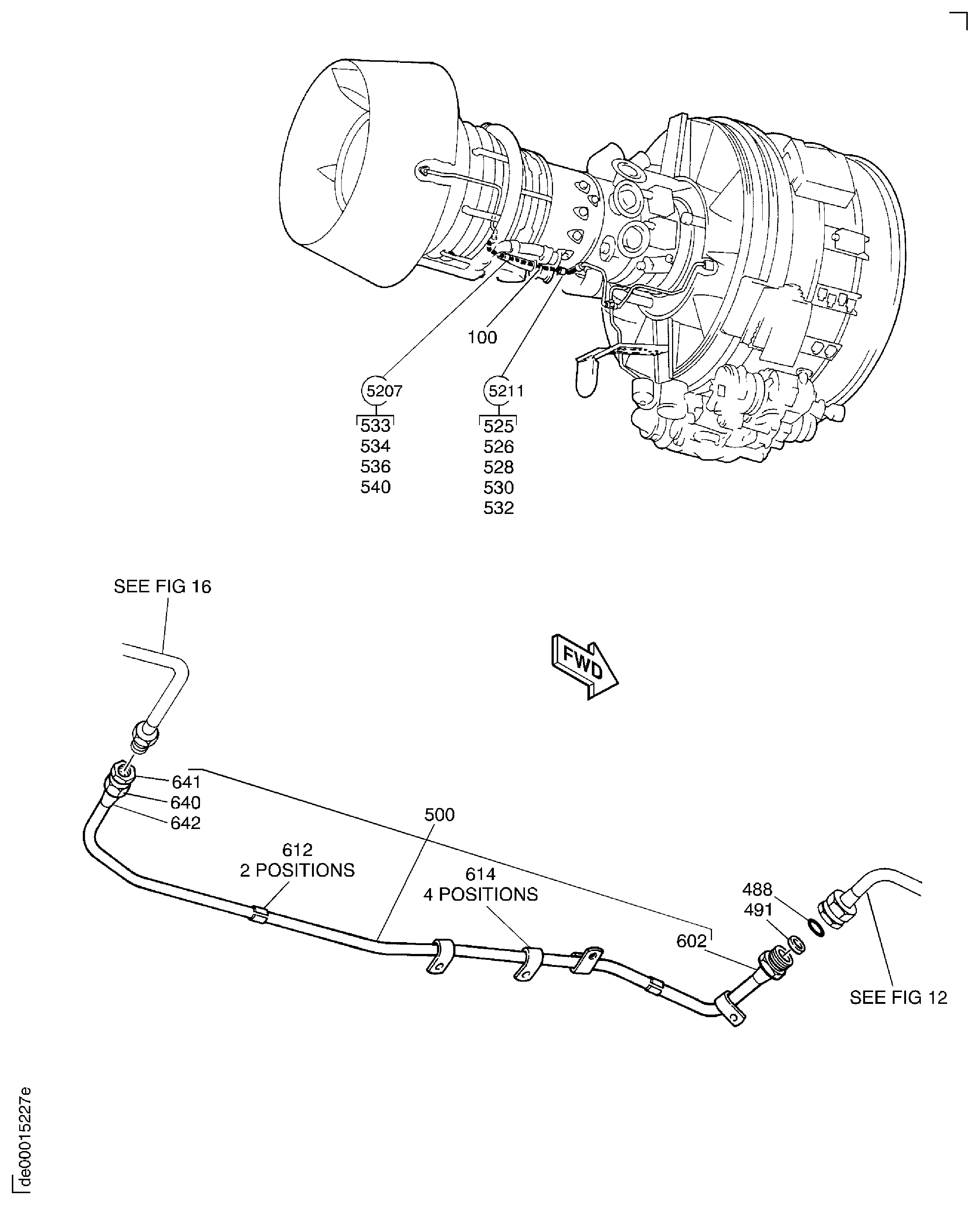

Figure: Engine Pressure Oil Tubes
Engine Pressure Oil Tubes
