DMC:V2500-A5-79-21-49-16A-941A-DIssue No:002.00Issue Date:2017-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 16 | ||||
| B79214916 | OIL-PRESSURE OIL TUBES-ENGINE, PRE SBE70-0857 | aa | ||
| SBE0857-01 | OIL-PRESSURE OIL TUBES-ENGINE | ab | ||
| 070 | 5W8384 | • BRACKET - A/O | aa-ab | 1 |
| 072 | 4W1183 | • BOLT - .190 DIA X .500 | aa-ab | 2 |
| 100 | 6A5013 | • TUBE - NO.5 BRG OIL FEED IDEN | aa-ab | 1 |
| 111 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 | aa-ab | 2 |
| 112 | 4W0107 | • BOLT - .190 DIA X .750 Optional Part 4W0107 | aa-ab | 2 |
| 115 | 1A8420 | • STRAINER - ELEMENT #5BRG REF SBE72-0660 | aa-ab | 1 |
| 117 | AS3209-012 | • PACKING - PREFORMED U1653 PRE SBE70-0857 REF SBE72-0660 | aa | 1 |
| 117A | ST1946-012 | • PACKING - PREFORMED 77445 POST SBE70-0857 REF SBE72-0660 | ab | 1 |
| 117B | AS3209-012 | • PACKING - PREFORMED U1653 REF SBE72-0660 | aa-ab | 1 |
| 141 | 4W0102 | • BOLT - .190 DIA X .438 | aa-ab | 1 |
| 142 | 5W1086 | • WASHER | aa-ab | 1 |
| 144 | 5W1110 | • CLIP | aa-ab | 1 |
| 148 | 4W0043 | • NUT - .190 DIA | aa-ab | 1 |
| 149 | 4W0102 | • BOLT - .190 DIA X .438 | aa-ab | 1 |
| 150 | 5W1086 | • WASHER | aa-ab | 1 |
| 152 | 5W1110 | • CLIP | aa-ab | 1 |
| 156 | 4W0043 | • NUT - .190 DIA | aa-ab | 1 |
| 157 | 4W0102 | • BOLT - .190 DIA X .438 | aa-ab | 1 |
| 158 | 5W1086 | • WASHER | aa-ab | 1 |
| 160 | 5W1110 | • CLIP | aa-ab | 1 |
| 164 | 4W0043 | • NUT - .190 DIA | aa-ab | 1 |
| 202 | AS15804 | • • ADAPTOR - STRAIGHT TUBE U1653 | aa-ab | 1 |
| 212 | 5W1098 | • • SLEEVE - HALF | aa-ab | 6 |
| 214 | 5W1060 | • • LUG - BRAZED | aa-ab | 1 |
| 242 | 6A4393 | • • CONNECTR - PIPE END | aa-ab | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

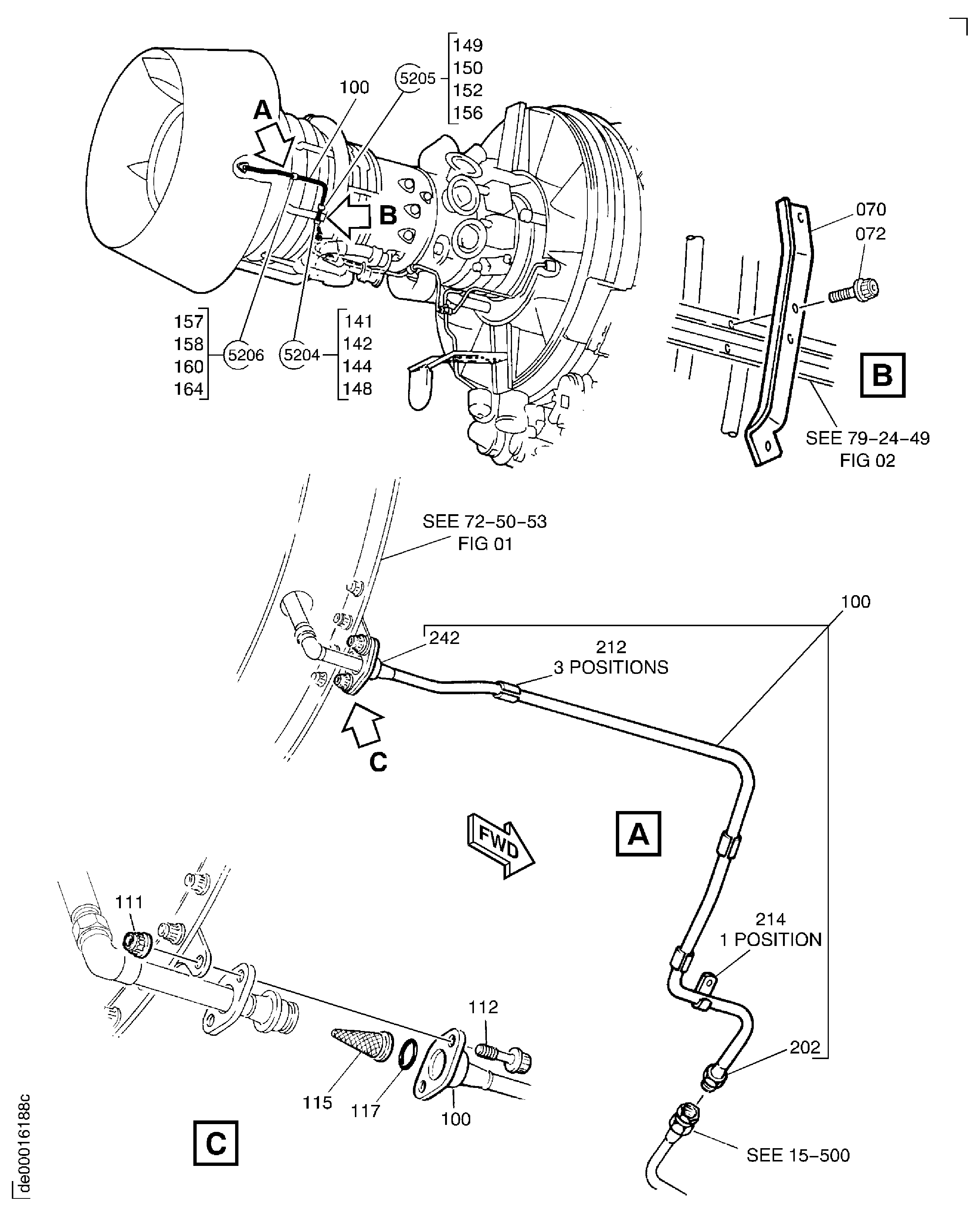

Figure: OIL-PRESSURE OIL TUBES-ENGINE
PRESSURE OIL TUBES ENGINE
