DMC:V2500-A5-79-21-49-18A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 18 | ||||
| B79214918 | OIL-PRESSURE OIL TUBES-ENGINE, PRE SBE70-0962 | aa | ||
| SBE0962-01 | OIL-PRESSURE OIL TUBES-ENGINE, PRE SBE79-0047 | ab | ||
| SBE0047-01 | OIL-PRESSURE OIL TUBES-ENGINE | ac | ||
| -005 | 745-5019-501 | ARRNGMNT 51563 PRE SBE70-0962 | aa | REF |
| -005A | 745-5019-503 | ARRNGMNT 51563 POST SBE70-0962 | ab-ac | REF |
| -005B | 745-5019-505 | ARRNGMNT 51563 POST SBE79-0047 | ac | REF |
| 100 | 740-5774-507 | • TUBE - ASSY OIL SCAVENGE 51563 | aa-ac | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

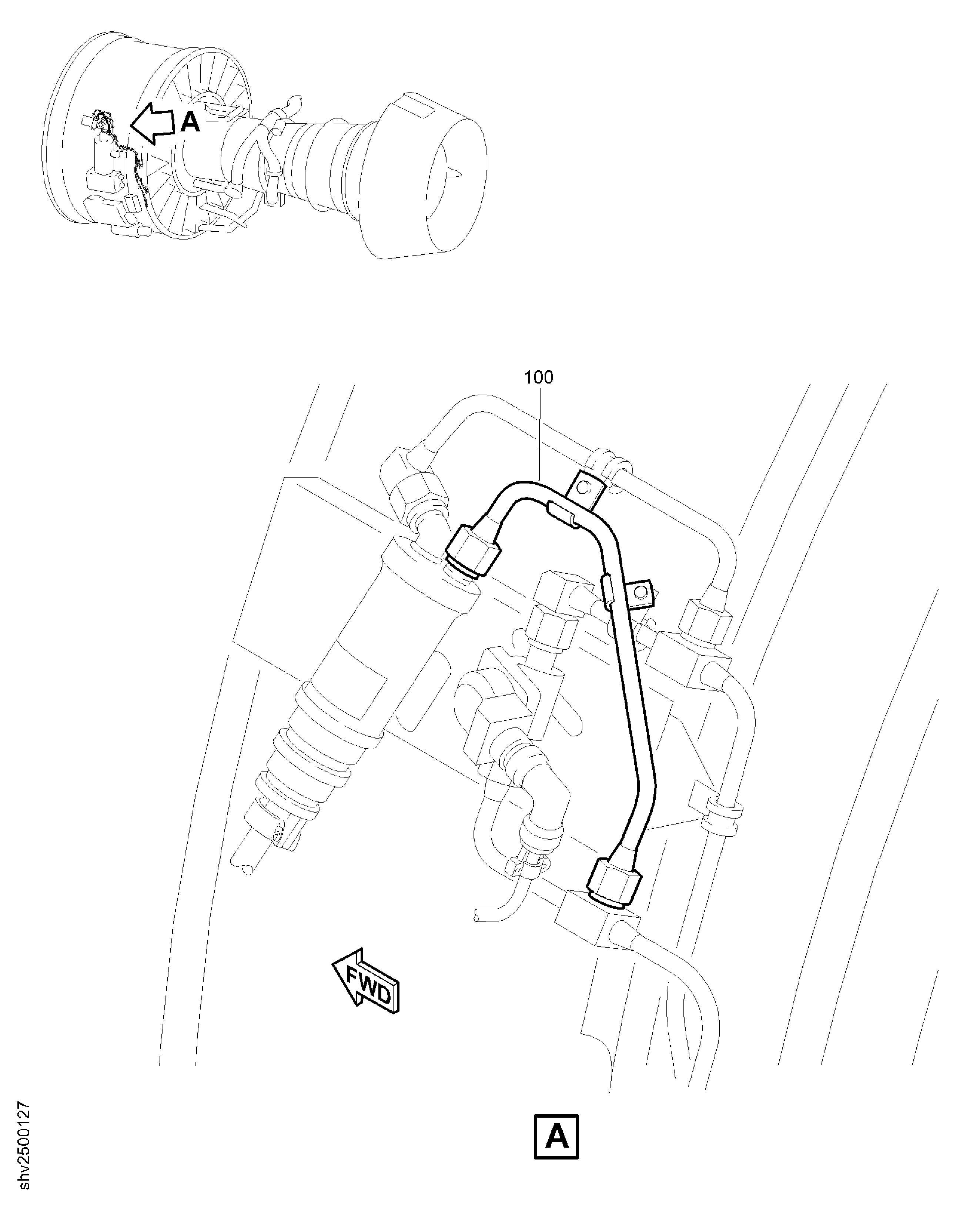

Figure: OIL-PRESSURE OIL TUBES-ENGINE
PRESSURE OIL TUBES ENGINE
