| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 03 | ||||
| B79224903 | OIL-SCAVENGE OIL TUBES-ENGINE, PRE SBE72-0189 | aa | ||
| SBE0189-01 | OIL-SCAVENGE OIL TUBES-ENGINE, PRE SBE79-0088 | ab | ||
| SBE0088-01 | OIL-SCAVENGE OIL TUBES-ENGINE, PRE SBE79-0088 | ac | ||
| 100 | 6A5367 | • TUBE - ASSY OF PRE SBE79-0088 | aa-ac/03 | 1 |
| 100A | 6A6195 | • TUBE - A/O POST SBE79-0088 | ac/03 | 1 |
| 149 | 4W0105 | • BOLT - .190 DIA X .625 Optional Part AS21410 POST SBE72-0189 PRE SBE79-0088 | ab-ac/03 | 1 |
| 152 | AS62416 | • CLIP - 25.40 MM (1.000) U1653 POST SBE72-0189 PRE SBE79-0088 | ab-ac/03 | 1 |
| 154 | LK64582 | • SPACER POST SBE72-0189 PRE SBE79-0088 | ab-ac/01 | 1 |
| 154A | LK64582 | • SPACER PRE SBE79-0088 | aa-ab/02 | 1 |
| 156 | 4W0043 | • NUT - .190 DIA Optional Part AS41104 POST SBE72-0189 PRE SBE79-0088 | ab-ac/01 | 1 |
| 156A | 4W0043 | • NUT - .190 DIA Optional Part AS41104 PRE SBE79-0088 | aa-ab/03 | 1 |
| 160 | AS62416 | • CLIP - 25.40 MM (1.000) U1653 POST SBE79-0088 | ac/03 | 1 |
| 200 | AS15785 | • • WIRE - THRUST U1653 POST SBE79-0088 | ac/03 | 1 |
| 201 | AS15709 | • • NUT - TUBE COUPLING U1653 POST SBE79-0088 | ac/03 | 1 |
| 202 | AS15738 | • • FERRULE - WELDING TUBE U1653 POST SBE79-0088 | ac/03 | 1 |
| 212 | UP11158 | • • BRACKET - INTER TUBE SUPPORT PRE SBE79-0088 | aa-ab/03 | 4 |
| 214 | UP11158 | • • BRACKET - INTER TUBE SUPPORT POST SBE79-0088 | ac/03 | 2 |
| 240 | AS15785 | • • WIRE - THRUST U1653 PRE SBE79-0088 | aa-ab/03 | 2 |
| 240A | AS15785 | • • WIRE - THRUST U1653 POST SBE79-0088 | ac/03 | 1 |
| 241 | AS15709 | • • NUT - TUBE COUPLING U1653 PRE SBE79-0088 | aa-ab/03 | 2 |
| 241A | AS15709 | • • NUT - TUBE COUPLING U1653 POST SBE79-0088 | ac/03 | 1 |
| 242 | AS15738 | • • FERRULE - WELDING TUBE U1653 PRE SBE79-0088 | aa-ab/03 | 2 |
| 242A | AS15738 | • • FERRULE - WELDING TUBE U1653 POST SBE79-0088 | ac/03 | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

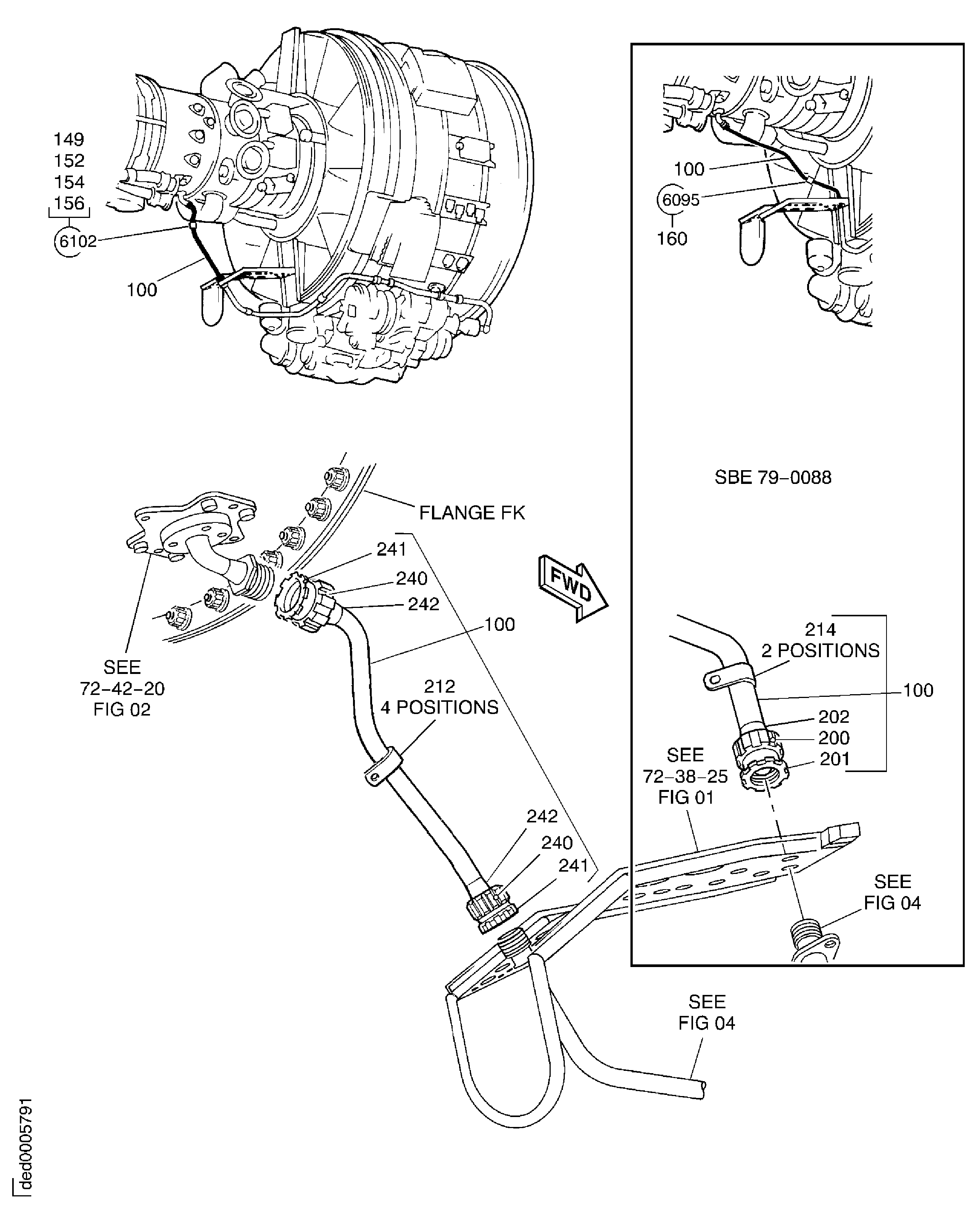

Figure: OIL-SCAVENGE OIL TUBES-ENGINE
SCAVENGE OIL TUBES ENGINE
