DMC:V2500-A5-79-32-15-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| - | B79321501 | OIL-ACOC OIL TEMPERATURE THERMOCOUPLE, PRE SBE70-0334 | aa | |
| - | SBE0334-01 | OIL-ACOC OIL TEMPERATURE THERMOCOUPLE | ab | |
| 200 | 73984300 | • THERMOCOUPLE, OIL TEMP (REF NO 5U0030) | aa-ab/01 | 1 |
| 200A | 73983700 | • THERMOCOUPLE, OIL TEMP (REF NO 5U0026) POST SBE70–0334 | ab/02 | 1 |
| 210 | 4W0169 | • BOLT - .250 DIA X .938 | aa-ab/01 | 2 |
| 220 | AS43013-112 | • RING - SEALING TOROIDAL, 12,37MM I/D X 2,62MM U1653 | aa-ab/01 | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

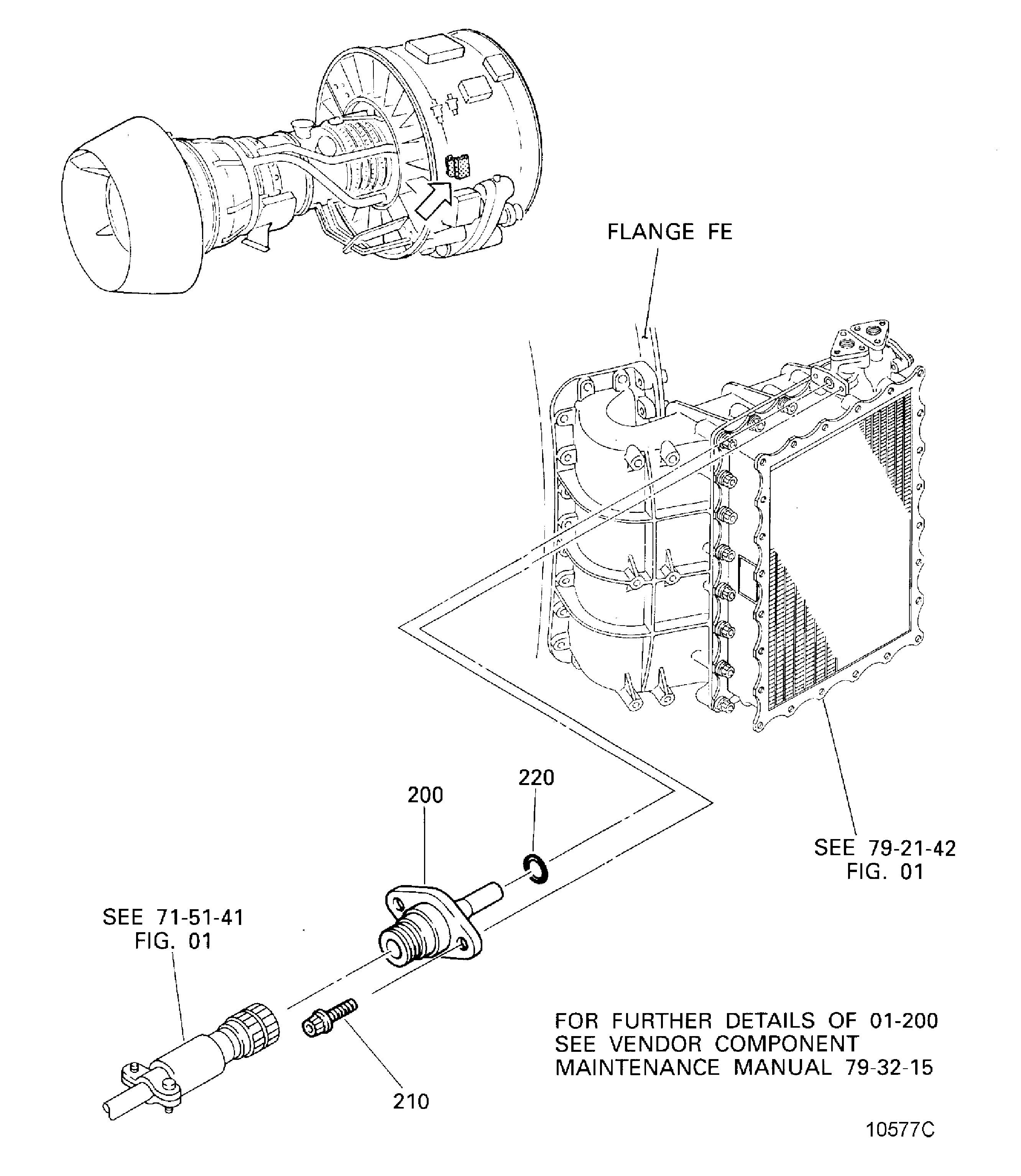

Figure: ACOC Oil Temperature Thermocouple
ACOC Oil Temperature Thermocouple
