DMC:V2500-A5-79-33-16-01A-941A-DIssue No:002.00Issue Date:2018-11-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B79331601 | OIL - NO. 4 BEARING PRESSURE TRANSDUCER, PRE SBE71-0222 | aa | ||
| SBE0222-01 | OIL - NO. 4 BEARING PRESSURE TRANSDUCER, PRE SBE79-0095 | ab | ||
| SBE0095-01 | OIL - NO. 4 BEARING PRESSURE TRANSDUCER | ac | ||
| 100 | 5L0026 | • TRANSDUCER, PRESS NO.4 BRG VENDOR P/N 41SG272-3 | aa-ac | 1 |
| 100A | 41SG272-5 | • TRANSDUCER - PRESS NO.4 BEARING 02750 PRE SBE79-0095 | aa-ac | 1 |
| 100B | 41SG272-6 | • TRANSDUCER - PRESS NO.4 BEARING 02750 POST SBE79-0095 | aa-ac | 1 |
| 110 | 4W0165 | • BOLT, MACHINE DOUBLE HEX - .250 DIA X .688 Optional Part 4W0165 PRE SBE71-0222 | aa | 2 |
| 110A | 4W0164 | • BOLT - .250 DIA X .625 Optional Part 4W0164 POST SBE71-0222 | ab-ac | 2 |
| 115 | 4W0044 | • NUT - SELF LOCKING, ASSEMBLY OF, .250 DIA Optional Part 4W0044 PRE SBE71-0222 | aa | 2 |
| 115A | 4W0002 | • NUT, SELF LOCKING DBL HEX - .250 DIA Optional Part 4W0002 POST SBE71-0222 | ab-ac | 2 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

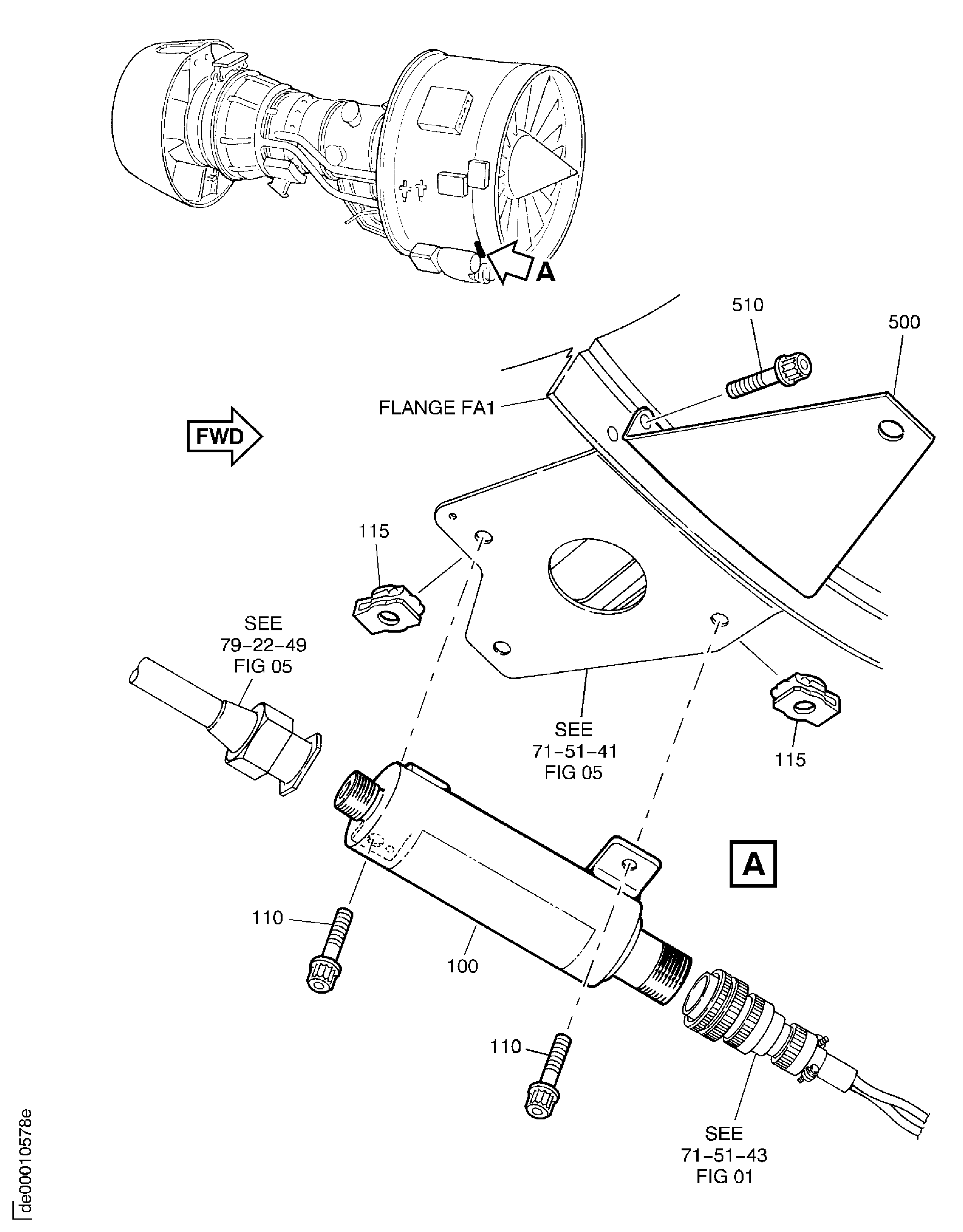

Figure: OIL-NO.4 BEARING PRESSURE TRANSDUCER
NO.4 BEARING PRESSURE TRANSDUCER
