LOW OIL PRESSURE SWITCH

DMC:V2500-A5-79-34-15-01A-941A-D|Issue No:001|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A5

Fig. Item	Part No.	Description	Effect/Model Applic.	UPA
01
000	B79341501	LOW OIL PRESSURE SWITCH, PRE SBE70-0962	aa
000	SBE0962-01	LOW OIL PRESSURE SWITCH, PRE SBE79-0047	ab
000	SBE0047-01	LOW OIL PRESSURE SWITCH, PRE SBE70-0727	ac
000	SBE0727-01	LOW OIL PRESSURE SWITCH	ad
-005005	745-5019-501	ARRNGMNT 51563 PRE SBE70-0962	aa/01	REF
V2522/V2524/V2527M AQ02, V2527/V2527E AQ02, V2530 AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ03, V2530 AQ03, V2522/V2524/V2527M SQ02, V2527/V2527E SQ02, V2530 SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ03, V2530 SQ03, V2522/V2524/V2527M SQ04, V2527/V2527E SQ04, V2530 SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ05, V2530 SQ05
-005005A	745-5019-501	ARRNGMNT 51563 PRE SBE79-0047	aa-ab/01	REF
V2522/V2524/V2527M AQ02, V2527/V2527E AQ02, V2530 AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ03, V2530 AQ03, V2522/V2524/V2527M SQ02, V2527/V2527E SQ02, V2530 SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ03, V2530 SQ03, V2522/V2524/V2527M SQ04, V2527/V2527E SQ04, V2530 SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ05, V2530 SQ05
-005005B	745-5019-503	ARRNGMNT 51563 POST SBE70-0962 PRE SBE79-0047	ab/05	REF
V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03
-005005C	745-5019-505	ARRNGMNT 51563 POST SBE79-0047	ac-ad/01	REF
V2522/V2524/V2527M AQ02, V2527/V2527E AQ02, V2530 AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ03, V2530 AQ03, V2522/V2524/V2527M SQ02, V2527/V2527E SQ02, V2530 SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ03, V2530 SQ03, V2522/V2524/V2527M SQ04, V2527/V2527E SQ04, V2530 SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ05, V2530 SQ05
-005005D	745-5019-505	ARRNGMNT 51563	aa-ad/03	REF
V2533 AQ02, V2533 AQ03, V2533 SQ02, V2533 SQ03, V2533 SQ04, V2533 SQ05

007007	AS43003-904	• RING - 8.92 MM X 1.83 MM U1653	aa-ad/02	2
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
009009	MS21902-4S	• UNION 96906 PRE SBE70-0727	aa-ac/02	2
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
009009A	MS21902-4R	• UNION 96906 POST SBE70-0727	ad/02	2
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05

010010	21SN04-275A	• SWITCH - LOW OIL PRESSURE 02750	aa-ad/02	1
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05

020020	4W0104	• BOLT - .190 DIA X .562	aa-ad/02	3
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05

- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

Manufacturer Code:	02750
Enterprise Name:	EATON CORPORATION
BU Name:	EATON CORPORATION
Department:	AEROSPACE CONTROLS DIVISION
Street:	15 DURANT AVENUE
P.O. Box:	504
City:	BETHEL
State:	CONNECTICUT
Zip Code:	06801
Country:	USA

Manufacturer Code:	0AM53
Enterprise Name:	IAE INTERNATIONAL AERO ENGINES AG
BU Name:	NULL
Building:	SUITE 400
Street:	628 HEBRON AVENUE
City:	GLASTONBURY
State:	CT
Zip Code:	06033
Country:	USA

Manufacturer Code:	51563
Enterprise Name:	ROHR INC, A COLLINS AEROSPACE COMPANY
BU Name:	ROHR INC, A COLLINS AEROSPACE COMPANY
Street:	850 LAGOON DRIVE
City:	CHULA VISTA
State:	CA
Zip Code:	91910-2098
Country:	USA
Phone Number:	1-619-691-2089
Fax Number:	1-619-691-6195

Manufacturer Code:	96906
Enterprise Name:	MILITARY STANDARDS MANUAL 4120 3-M
BU Name:	MILITARY STANDARDS MANUAL 4120 3-M
Street:	NONE
City:	NONE
Country:	USA
Phone Number:	NONE

Manufacturer Code:	U1653
Enterprise Name:	Society Of British Aerospace Companies, LTD.

LOW OIL PRESSURE SWITCH

Export Control

Copyright

Applicability

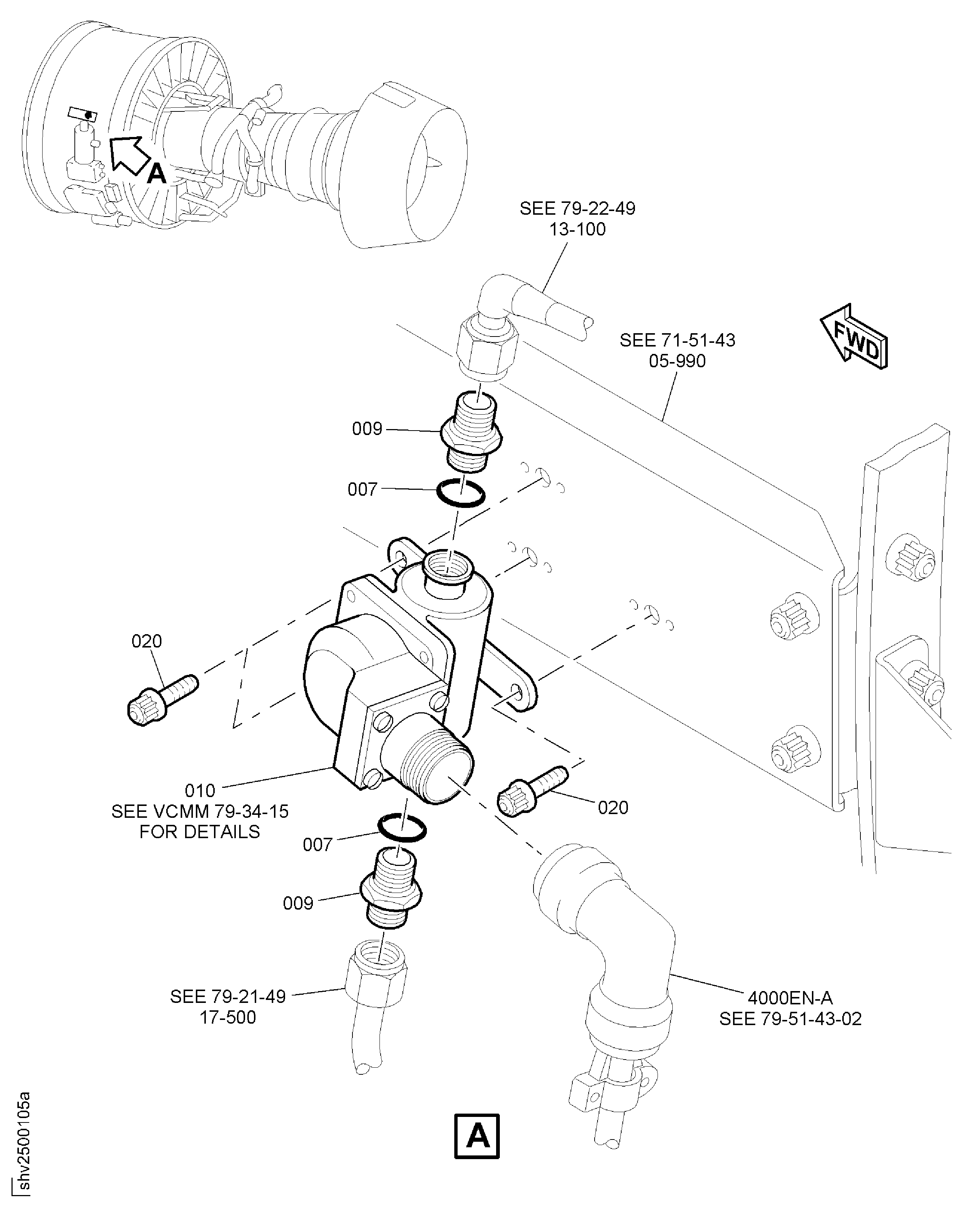

Figure: LOW OIL PRESSURE SWITCH
