TASK 71-21-11-300-009 Front Mount Tube Outer Race Assembly - Replace The Dry Film Lubricant, Repair-009 (VRS1100)

DMC:V2500-A0-71-21-1101-00A-240A-C|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 71-21-11-300-009 Front Mount Tube Outer Race Assembly - Replace The Dry Film Lubricant, Repair-009 (VRS1100)

Effectivity

FIG/ITEM

PART NO.

01-100

5A6024

Material of component

PART IDENT

SYMBOL

MATERIAL

Mount tube outer race assembly

Corrosion resistant steel

General

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Vapor DegreaserLOCALVapor Degreaser
Abrasive Blast EquipmentLOCALAbrasive Blast Equipment
OvenLOCALOven

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-001 ADHESIVE TAPE (MASKING)LOCALCoMat 02-001
CoMat 02-002 ADHESIVE TAPE GENERALPURPOSE PAPERLOCALCoMat 02-002
CoMat 02-005 ADHESIVE TAPE (MASKING)LOCALCoMat 02-005
CoMat 02-019 TAPE, ADHESIVE PAPER HEAT RESISTING MASKING94960CoMat 02-019
CoMat 05-003 ABRASIVE MEDIUM ALUMINUM OXIDE, 120/220 GRADELOCALCoMat 05-003
CoMat 07-009 THINNERLOCALCoMat 07-009
CoMat 10-004 DRY FILM LUBRICANTLOCALCoMat 10-004

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 71-21-11-110-060 Remove Dry Film Lubricant

      1. Remove dry film lubricant if necessary.

      1. Refer to TASK 71-21-11-100-001 (CLEANING-001).

    2. SUBTASK 71-21-11-120-053 Abrasive Blast the Mount Tube Outer Race Assembly

      1. Apply the masking tape.

        1. Refer to Figure.

        1. Refer to the SPM TASK 70-38-03-380-501.

        2. Apply the masking tape to the areas which are not to be given a layer of dry film lubricant.

    3. Remove the masking tape.

      4. Remove the abrasive grit.

      1. Refer to the SPM TASK 70-38-03-380-501.

      5. Remove the grease from the repaired area.

      1. Refer to the SPM TASK 70-11-26-300-503.

        Use vapour degreasing facility.

    3. SUBTASK 71-21-11-380-054 Apply the Dry Film Lubricant to the Mount Tube Outer Race Assembly

      1. Apply the masking tape.

        1. Refer to Figure.

        1. Apply the masking tape to the area which are not to be given a layer of dry film lubricant.

        3. Refer to the SPM TASK 70-38-03-380-501.

      2. Apply the dry film lubricant.

        1. Refer to the SPM TASK 70-38-03-380-501.

        1. Use CoMat 10-004 DRY FILM LUBRICANT (molybdenum disulphide) and CoMat 07-009 THINNER.

        2. The thickness of dry film lubricant is to be 0.00012 to 0.0006 in. (0.003 to 0.015 mm).

    3. Remove the masking tape.

      4. Heat the mount tube outer race assembly.

      1. Bake in oven for three hours between 347 to 365 deg F (175 to 185 deg C).

      5. Examine the layer of dry film lubricant.

      1. Refer to the SPM TASK 70-38-03-380-501.

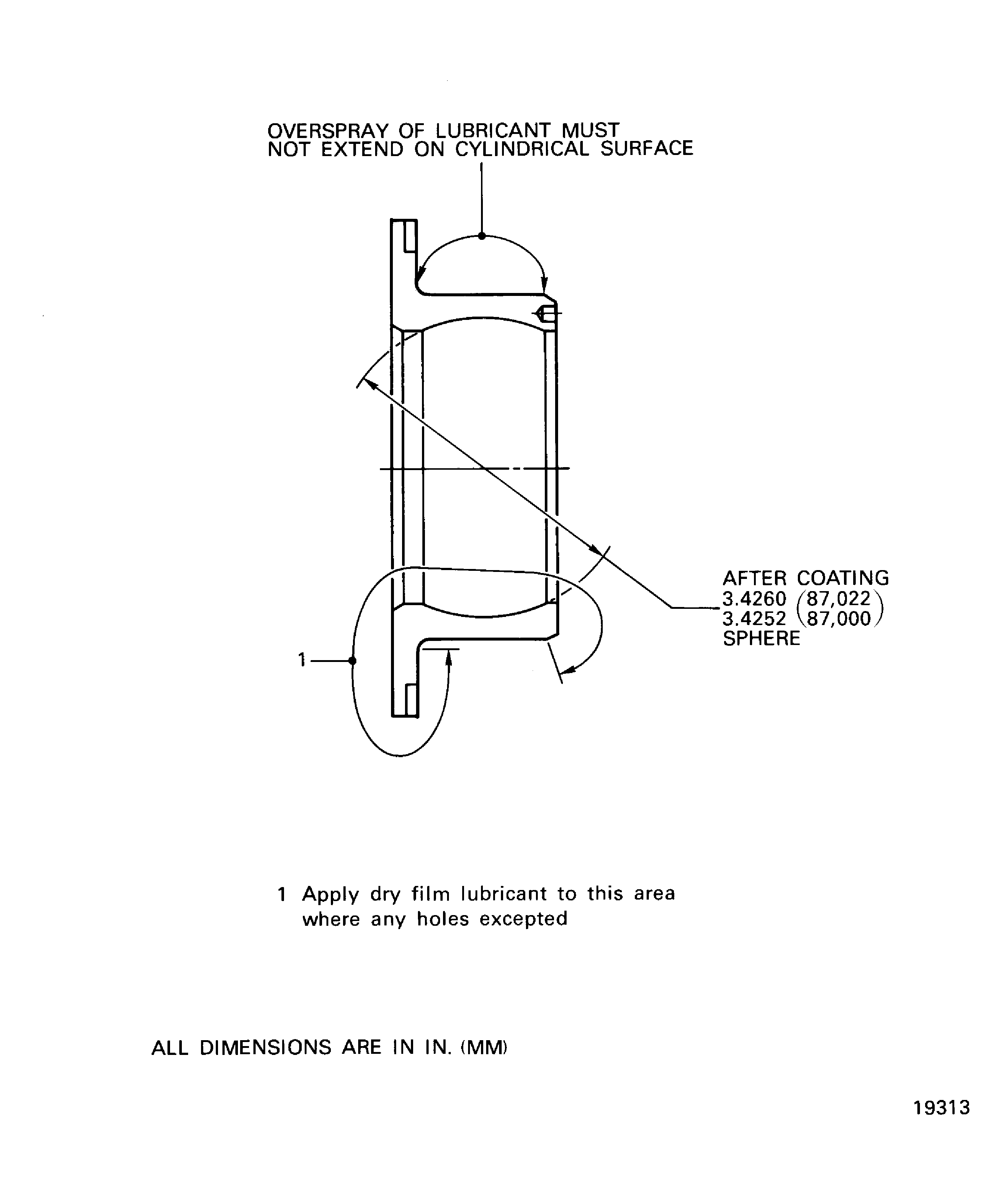

    4. Figure: Apply dry film lubricant to the area and location of mount tube outer race assembly

    Apply dry film lubricant to the area and location of mount tube outer race assembly

Requirements After Job Completion

Follow-On Conditions

NONE
