TASK 71-21-11-300-006 Front Mount Tube - Replace The Thread Insert, Repair-006 (VRS1102)

DMC:V2500-A0-71-21-1102-00A-920A-C|Issue No:002.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 71-21-11-300-006 Front Mount Tube - Replace The Thread Insert, Repair-006 (VRS1102)

Effectivity

FIG/ITEM

PART NO.

01-150

5A6025

01-150

5A1698

Material of component

PART IDENT

SYMBOL

MATERIAL

Engine front mount tube assembly

Heat resisting and refractory alloy (INCO 718)

General

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Insert screw thread kitLOCALNo. AC 018

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 04-004 JOINTING COMPOUND, LIGHT GRADELOCALCoMat 04-004
CoMat 10-059 ENGINE LUBRICATING OIL0AM53CoMat 10-059

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Insert, screw threadAGS37356

(0.4375 - 20 UNIFIED)

Safety Requirements

NONE

Procedure

    1. SUBTASK 71-21-11-350-053 Remove the Damaged Insert 71-21-11-990-014

      1. Remove the damaged insert.

      1. Refer to the SPM TASK 70-35-08-300-501.

    2. SUBTASK 71-21-11-220-078 Install the New Helical Insert 71-21-11-990-014

      1. Apply a compound to the thread of new insert.

      2. Install the new helical insert.

      1. Refer to the SPM TASK 70-35-08-300-501.

        .

      3. Remove the tang.

      1. Refer to the SPM TASK 70-35-08-300-501.

    4. NOTE

      All free tangs shall be removed from the engine front mount tube immediately after breaking off.

    3. SUBTASK 71-21-11-230-054 Examine the Installed Insert 71-21-11-990-014

      1. Visual examine the installed insert.

      1. Refer to the SPM TASK 70-35-08-300-501.

      2. Torque check the installed insert.

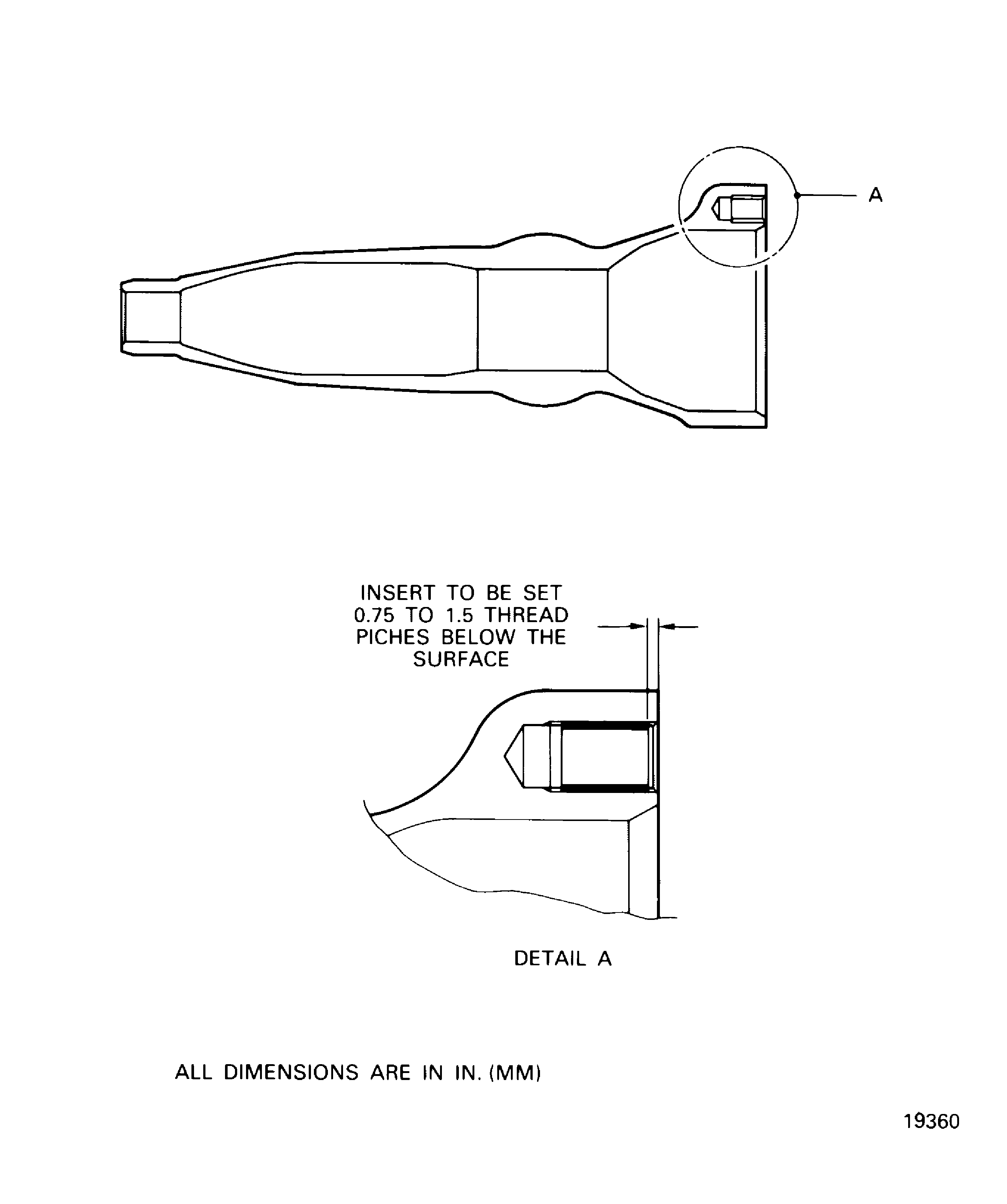

    4. Figure: Engine front mount tube assembly - replace the thread insert

    Engine front mount tube assembly - replace the thread insert

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Editorial correction due to conversion

Link not Found
Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
Link not Found
Manufacturer Code:LOCAL
Supply Number:CoMat 04-004
Type:sp01
Supply Short Name:CoMat 04-004 JOINTING COMPOUND, LIGHT GRADE
Supply Name:CoMat 04-004 JOINTING COMPOUND, LIGHT GRADE
Specification Groups:
Doc NumberType
OMAT: 4/46 (REF RR)HYLOMAR AEROGRADE (PL32), LIGHT GRADE
JCR-025 (JAEC REF)HYLOMAR AEROGRADE (PL32), LIGHT GRADE
MSRR 9055 (RR REF)HYLOMAR AEROGRADE (PL32), LIGHT GRADE
Suppliers:
ManufacturerRemarks
LOCAL
460Y4
CJ731
K3237
Manufacturer Code:0AM53
Supply Number:CoMat 10-059
Type:sp01
Supply Short Name:CoMat 10-059 ENGINE LUBRICATING OIL
Supply Name:CoMat 10-059 ENGINE LUBRICATING OIL
Specification Groups:
Doc NumberType
DELETED
Suppliers:
ManufacturerRemarks
0AM53
Manufacturer Code:LOCAL
Tool Number:No. AC 018
Tool Name:Insert screw thread kit
