TASK 71-52-44-300-002 EEC Link Core Harness - Replace The Terminals, Repair-002 (VRS1084)

DMC:V2500-A0-71-52-4400-01A-920A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 71-52-44-300-002 EEC Link Core Harness - Replace The Terminals, Repair-002 (VRS1084)

Effectivity

FIG/ITEM

PART NO.

01-005

2A1491

01-005

6A4719

General

The practices and processes referred to in the procedure by the TASK number are in the SPM.

For the method to clean the parts, refer to CLEANING-000 TASK 71-52-44-100-300.

Repair parts

FIG/ITEM

PART NO.

PART IDENT

QTY

03-716

2A1416-3

Hold band

4

04-740

2A1440

Chromel terminal

2

04-741

2A1441

Alumel terminal

2

03-721

2A1421

Protective band

2

03-742

2A1442

Separator

2

04-750

323750

Terminal

2

03-930

3M 64

Tape, glass fabric

1

03-931

S-792

Tube, glass fabric

1

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 71-52-44-350-061 Remove Damaged Terminals

    1. Refer to Figure.

    2. Remove the terminal.

      3. CAUTION

        DO NOT CUT THE CONDUCTOR.

        Remove the insulation from the cable.

      1. Use a cable stripper.

    2. SUBTASK 71-52-44-350-062 Install the Terminal

    1. Refer to Figure.

      2. Install the terminal.

      1. Put the conductor into the terminal barrel. Use a crimping tool.

    3. Install the insulation sleeve.

      4. Install the protective band.

      1. Use a crimping tool.

    3. SUBTASK 71-52-44-350-063 Install the Alumel and Chromel Terminal

    1. Refer to Figure.

      2. Install the glass fabric tube or the glass fabric tape.

      1. Spiral wrap glass fabric tape using 50 percent overlap.

      3. Install the terminal

      1. Put the conductor into the terminal barrel. Use a crimping tool.

      4. Fusion weld the terminal barrel.

      1. Refer to SPM TASK 70-31-13-310-501.

      5. Install the hold down band.

      1. Use a crimping tool

    6. Install the insulation sleeve.

      7. Install the separator

      1. Use a crimping tool.

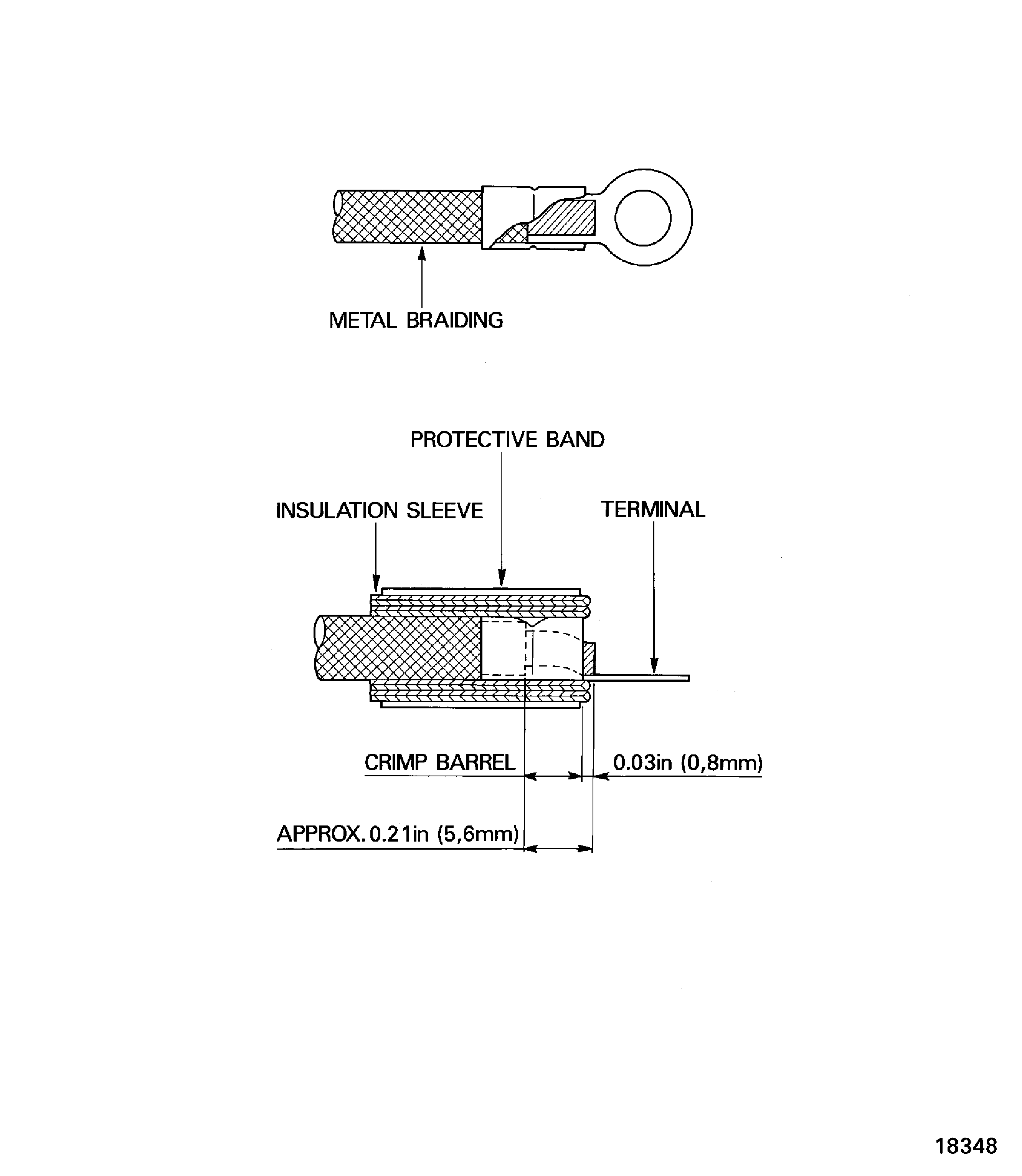

    4. Figure: Installation Of The Terminal

    Installation Of The Terminal

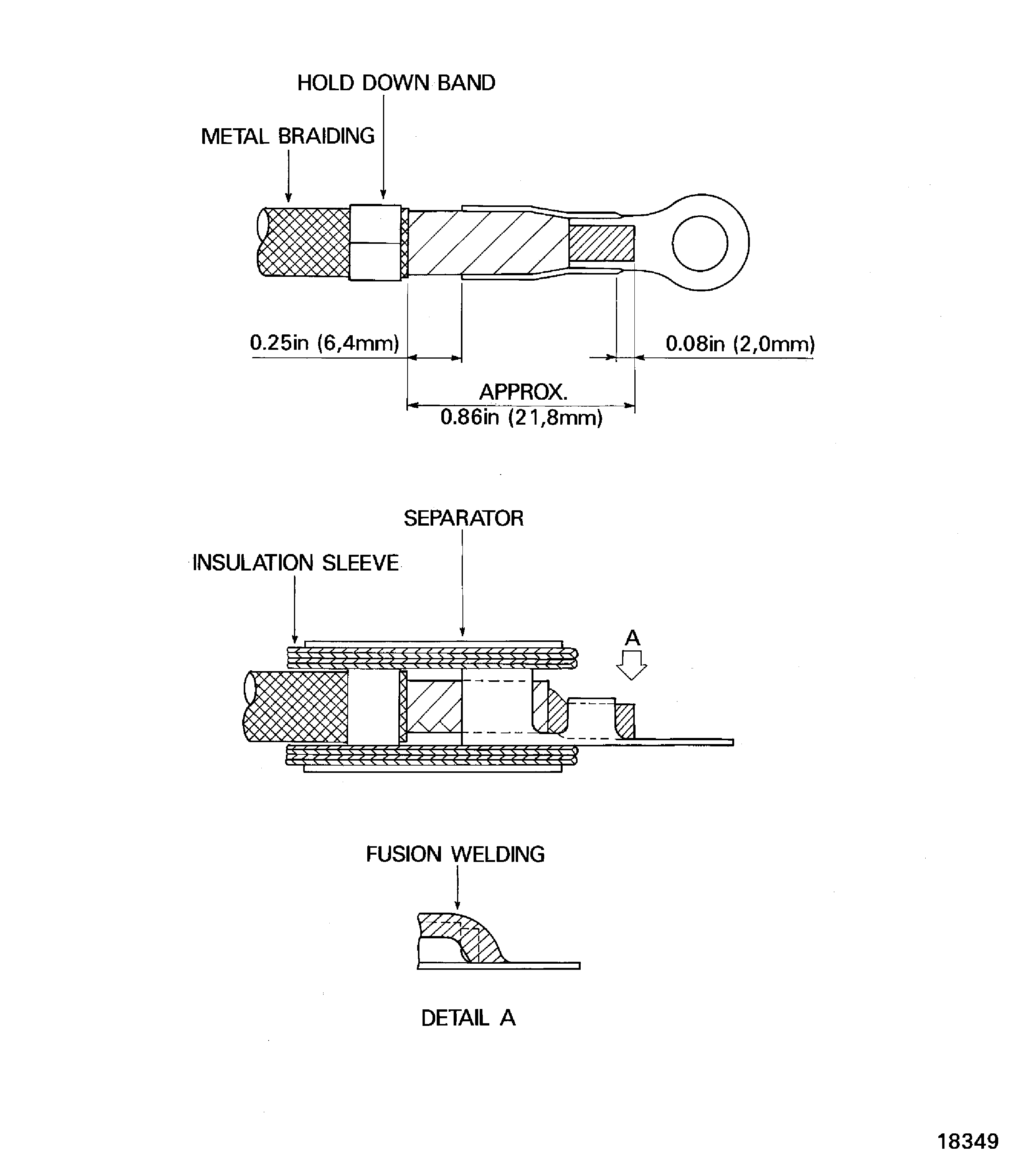

    Figure: Installation Of The Alumel/Chromel Terminal

    Installation Of The Alumel/Chromel Terminal

Requirements After Job Completion

Follow-On Conditions

NONE
