TASK 72-00-00-200-016 Engine General - Examine (Borescope) The HPT Stage 1 Duct Segments, Inspection-016

DMC:V2500-A0-72-00-0000-09A-312A-B|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-00-00-200-016 Engine General - Examine (Borescope) The HPT Stage 1 Duct Segments, Inspection-016

General

This TASK gives the procedure for the borescope inspection of the stage 1 HPT duct segments. This TASK recommends the use of a flexible borescope to inspect the stage 1 HPT duct segments. A rigid borescope will not permit you to see sufficient detail to inspect the duct segments to the limits in this TASK.

NOTE

To identify the consumable materials, refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Torque wrench: range 36 - 220 lbfin (4.0 - 24.9 Nm)LOCALTorque Wrench 36 - 220
Flexible borescope, 6 mm or more with a minimum length of 2.5 m with a forward viewing tipLOCALFlexible borescope, 6 mm or more with a minimum length of 2.5 m with a forward viewing tip
Cover (eye)LOCALCover (eye)
IAE 1P16184 Puller0AM53IAE 1P161841

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-141 LOCKWIRELOCALCoMat 02-141
CoMat 10-031 ANTI-GALLING COMPOUND0AM53CoMat 10-031
CoMat 10-055 ANTIGALLANT0AM53CoMat 10-055
CoMat 10-094 ANTI-SEIZE COMPOUND, PURE Ni-SPECIALLOCALCoMat 10-094

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Gasket2

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-00-00-020-077 Install a Flexible Borescope to Examine the Stage 1 HPT Duct Segments through the T1/2L or T1/2R Ports

    1. Refer to Figure and Figure.

      2. Get access to the stage 1 HPT duct segments through the T1/2L and the T1/2R ports.

      1. Remove the lockwire and the bolts HP Turbine (HPT) Rotor And Stator Assembly (72-45-00, 01-160) which hold the plugs.

      2. Put the IAE 1P16184 Puller puller 1 off into the center hole of the plug.

      3. Remove the plug HP Turbine (HPT) Rotor And Stator Assembly (72-45-00, 01-140) from the port with the puller.

      4. Remove the gasket HP Turbine (HPT) Rotor And Stator Assembly (72-45-00, 01-120) from the plug HP Turbine (HPT) Rotor And Stator Assembly (72-45-00, 01-140).

      5. Remove the plug HP Turbine (HPT) Rotor And Stator Assembly (72-45-00, 01-140) from the puller.

      6. Do Step through Step for the other plug HP Turbine (HPT) Rotor And Stator Assembly (72-45-00, 01-140).

    3. NOTE

      When the borescope is in approximately 12 in. (0.30 m), withdraw the borescope to make sure there is a minimum of resistance. If there is resistance, remove the borescope and rotate the rotor for better position. If there is little or no resistance, continue the borescope installation.

      Put a flexible borescope into the T1/2R port. Twist and push the borescope in until you can see the duct segments.

    4. Continue to install the borescope around the circumference until you can see the borescope at the entrance point. If the borescope cannot go all the way around, slowly retract the borecope to see all the duct segments for heavy wear of the parent metal, burning and missing material.

    5. If the borescope did not go all around the circumference, use port T1/2L and do the borescope installation procedure again to inspect the duct segments that remain.

    2. SUBTASK 72-00-00-420-084 Close the Borescope Inspection Ports after the Borescope Inspection is Completed

    1. Refer to Figure.

    2. Remove the borescope.

      3. For the T1/T2 and the T1/2R port proceed as follows:

      1. Put the gasket HP Turbine (HPT) Rotor And Stator Assembly (72-45-00, 01-120) 1 off in the case recess.

      2. Replace the gasket if the seal is not above the case surface.

      3. Put the gasket on the plug HP Turbine (HPT) Rotor And Stator Assembly (72-45-00, 01-140) and install it in the case.

      5. Install the bolts HP Turbine (HPT) Rotor And Stator Assembly (72-45-00, 01-160).

      6. Torque the bolts to 75 to 85 lbf.in (8.48 to 9.60 Nm).

      7. Safety the bolts with CoMat 02-141 LOCKWIRE.

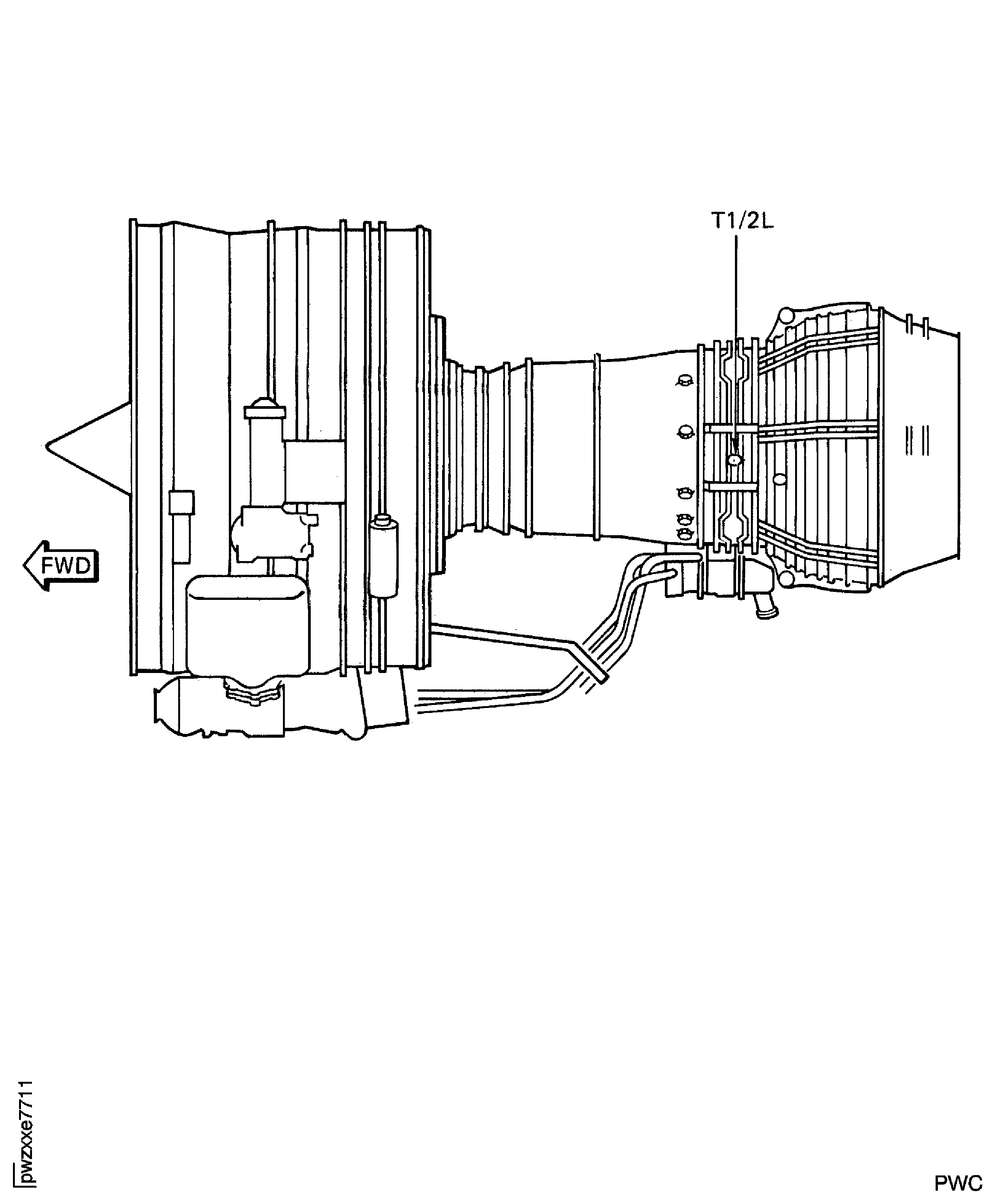

    3. Figure: HP Turbine Borescope Locations for Inspection of the Stage 1 HPT Duct Segments (Left Side)

    HP Turbine Borescope Locations for Inspection of the Stage 1 HPT Duct Segments (Left Side)

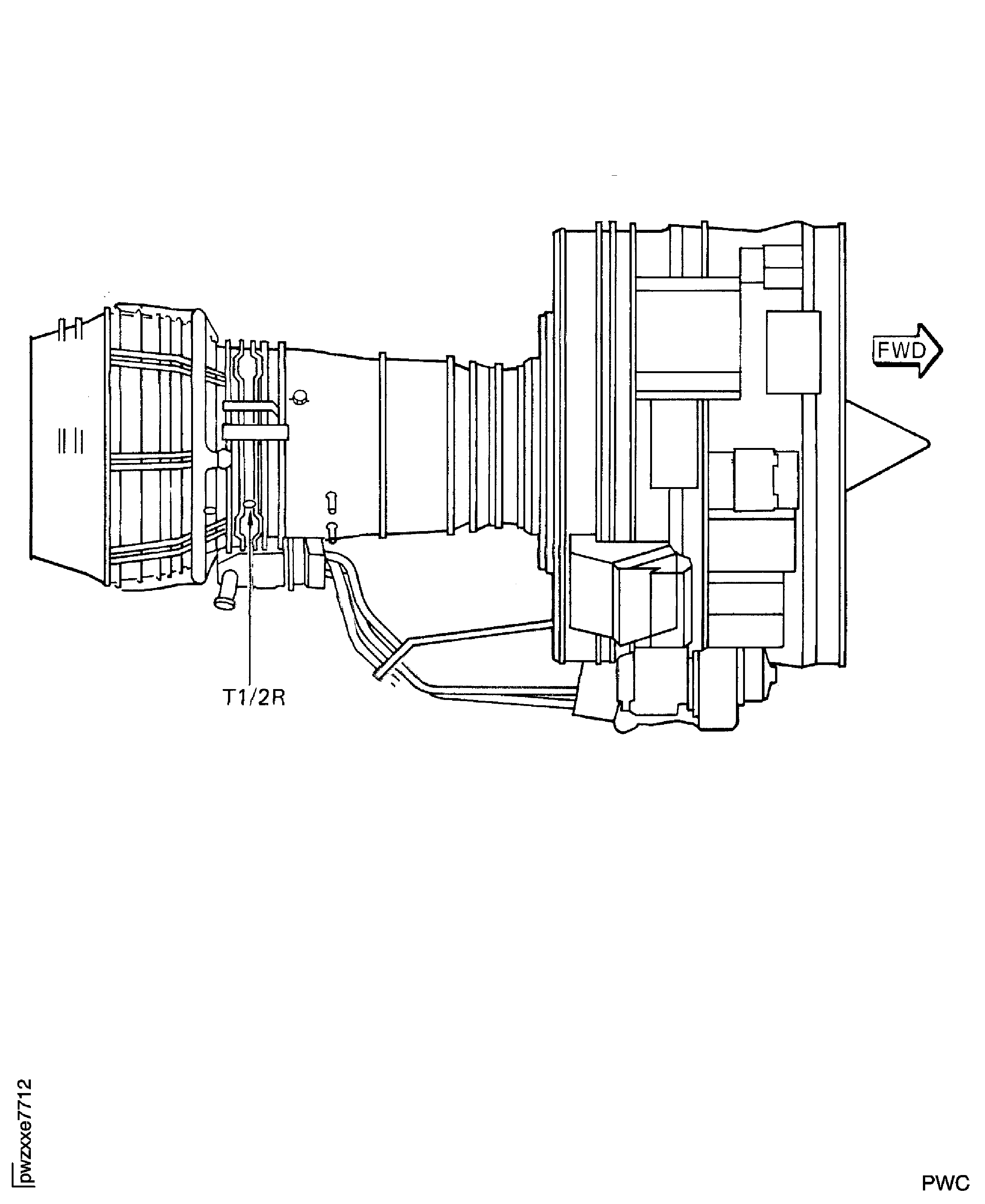

    Figure: HP Turbine Borescope Locations for Inspection of the Stage 1 HPT Duct Segments (Right Side)

    HP Turbine Borescope Locations for Inspection of the Stage 1 HPT Duct Segments (Right Side)

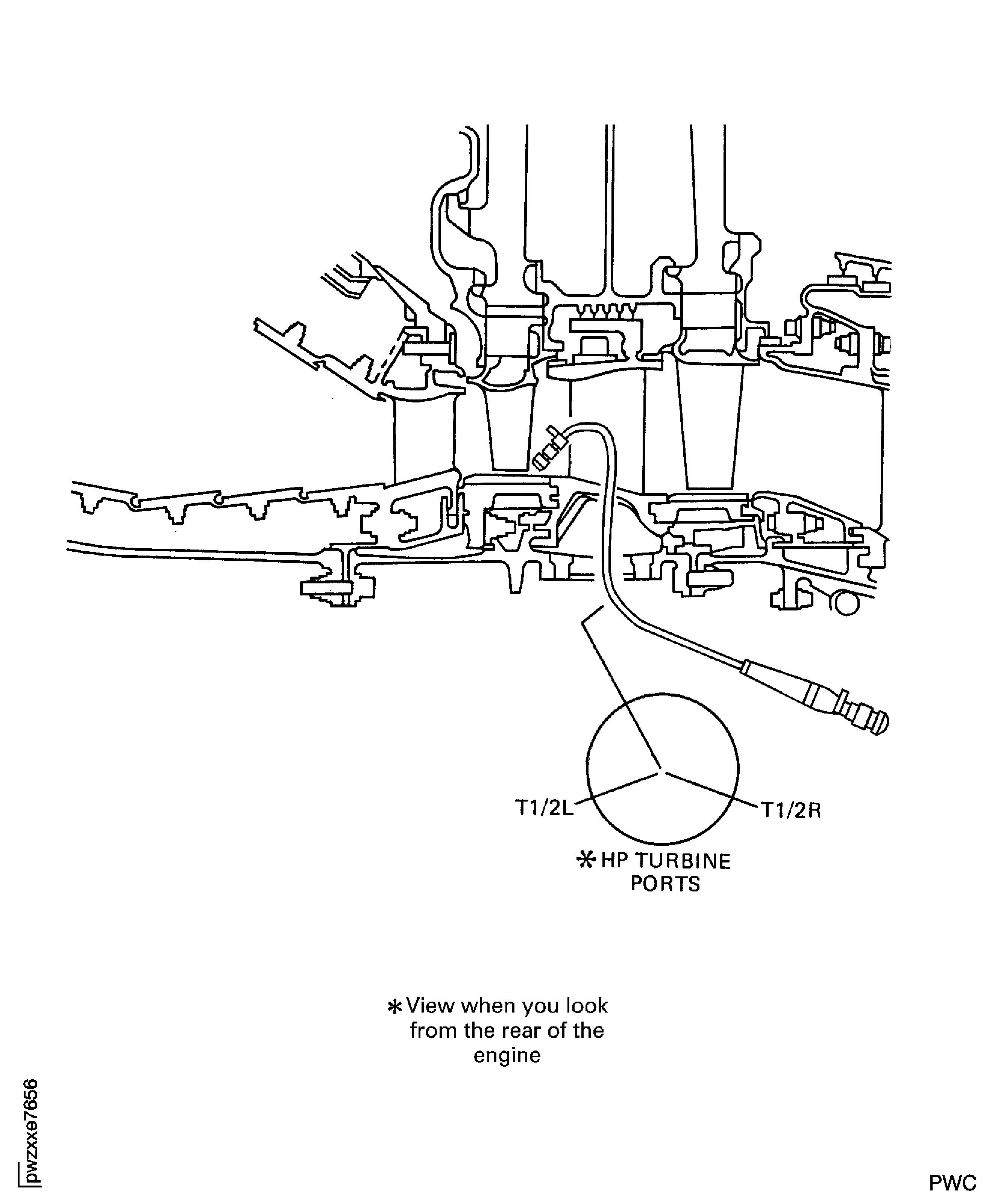

    Figure: HP Turbine Ports for Inspection of the Stage 1 HPT Duct Segments

    HP Turbine Ports for Inspection of the Stage 1 HPT Duct Segments

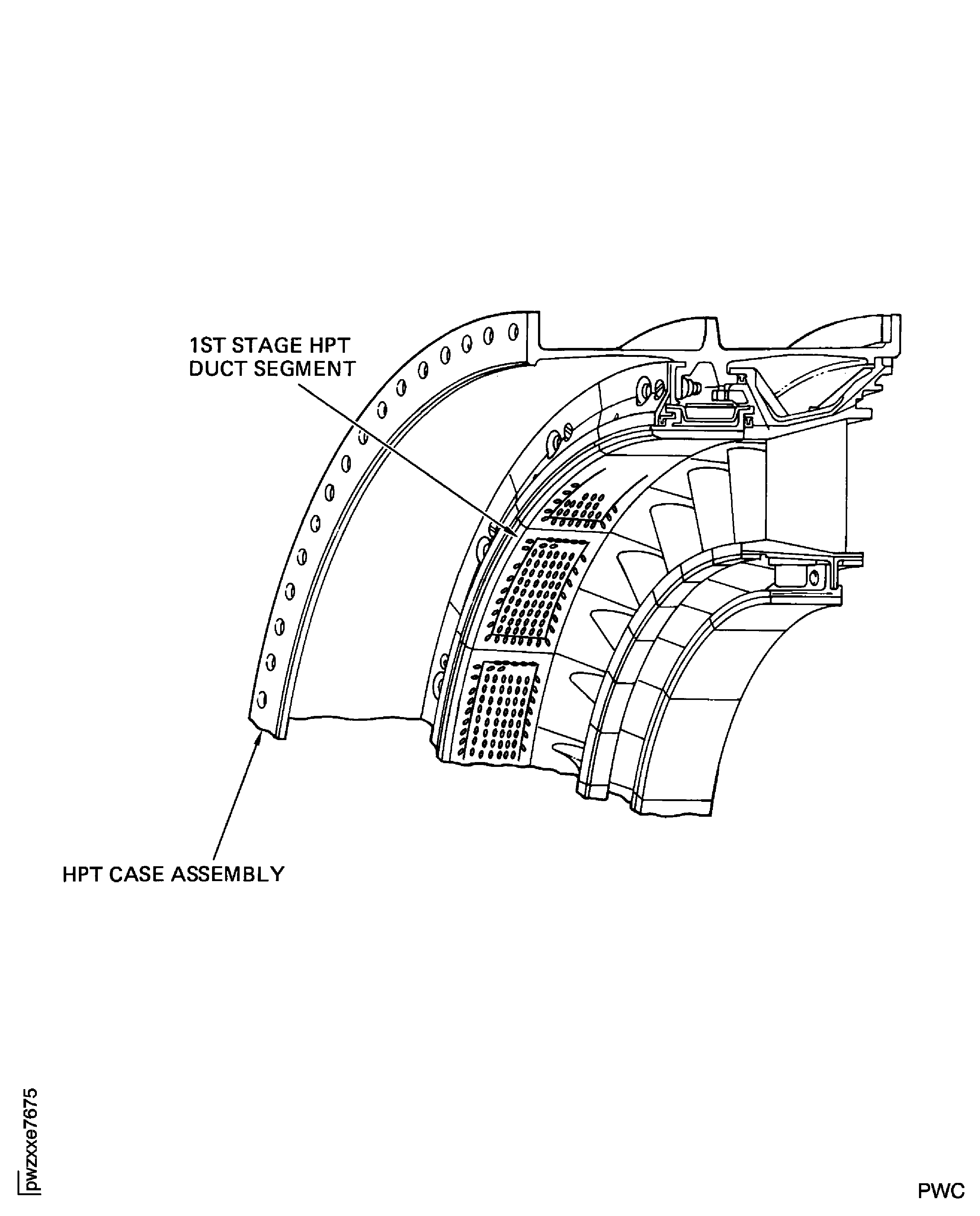

    Figure: Stage 1 HPT Duct Segment Inspection Locations

    Stage 1 HPT Duct Segment Inspection Locations

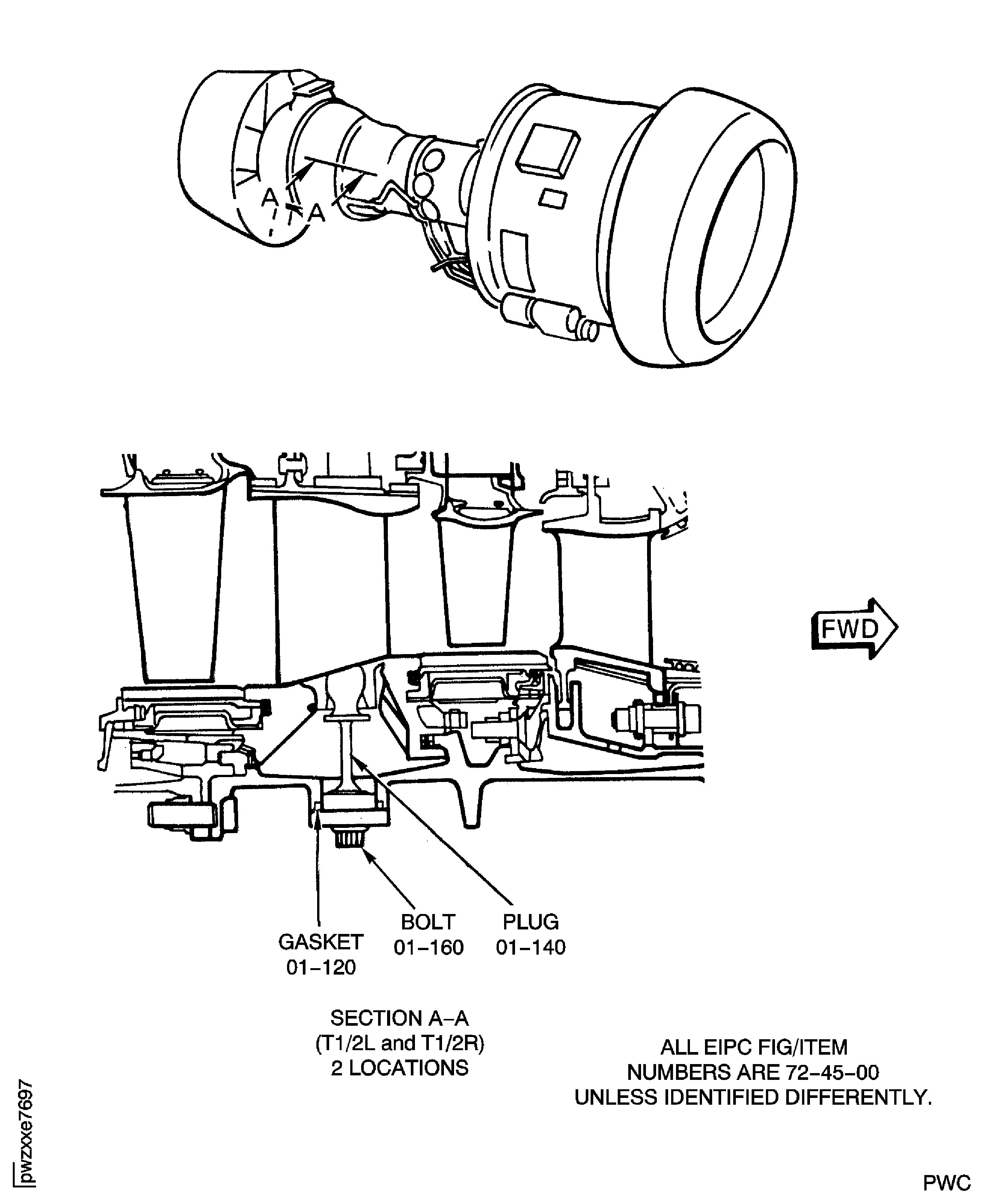

    Figure: Borescope Ports

    Borescope Ports

Requirements After Job Completion

Follow-On Conditions

NONE
