TASK 72-00-31-220-003 LPC Fan Module - Examine The LPC Fan Module Rear Face at Interface B-31, Inspection-003
General
Refer to TASK 72-00-00-220-000 (Examine the modular/non-modular interfaces), (INSPECTION/CHECK-000) before you do this TASK.
The policy that is necessary for inspection is given in the SPM TASK 70-20-01-200-501.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
NONESpares
NONESafety Requirements
NONEProcedure
Refer to Figure.
SUBTASK 72-00-31-220-055 Visually Examine the Curvic Teeth of the Stage 1 Fan Disk at Location 1
Refer to Figure.
SUBTASK 72-00-31-220-056 Visually Examine the Rear Retaining Ring at Location 2

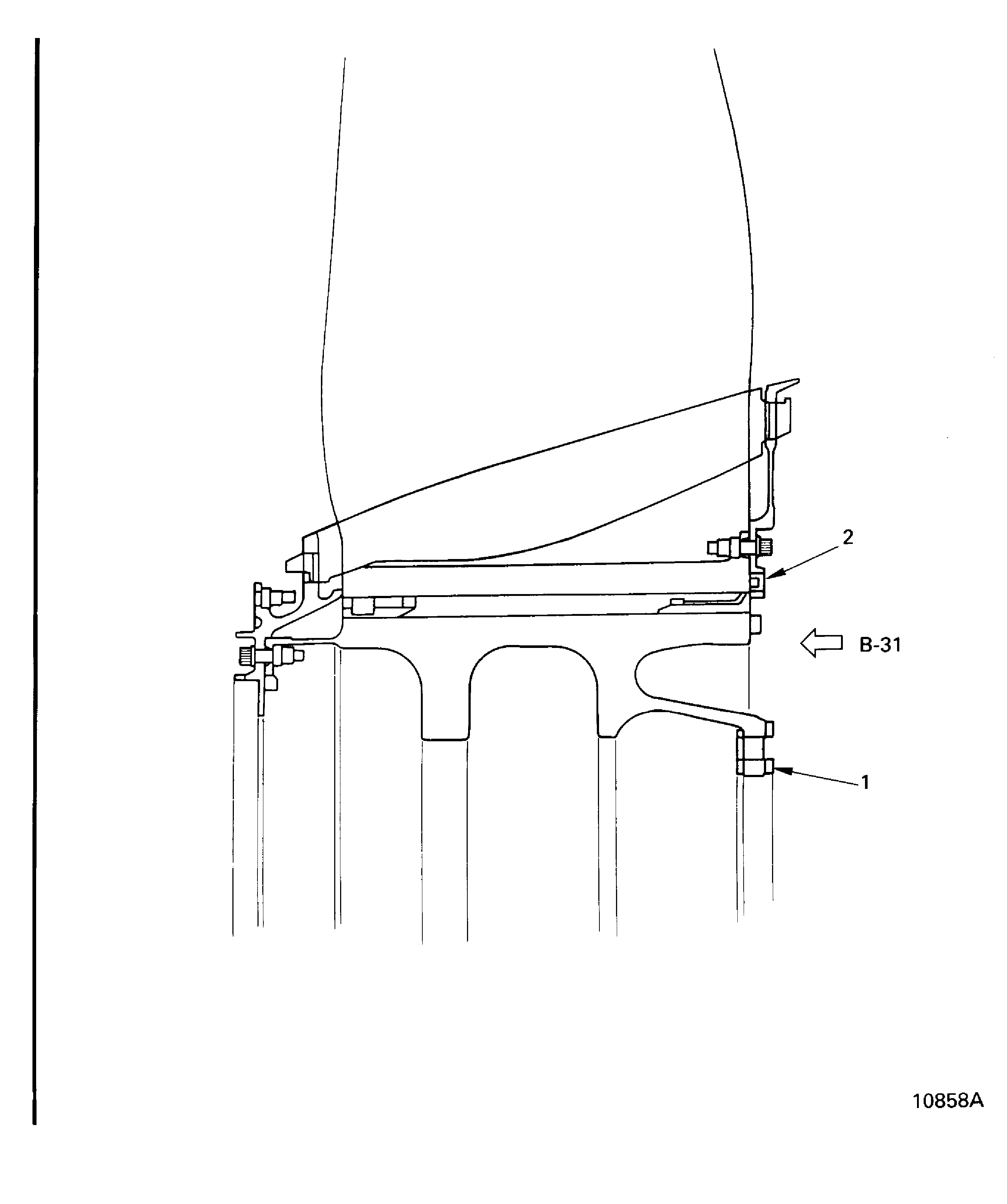

Figure: Locations at interface B-31
Locations at interface B-31
