TASK 72-00-32-300-002 LPC/Intermediate Case Module - Blend Repair A Cracked Rear Wall Window Of The Fan Frame Assembly, Repair-002 (VRS1122)

DMC:V2500-A0-72-00-3201-00A-649A-B|Issue No:002.00|Issue Date:2019-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A1

Common Information

TASK 72-00-32-300-002 LPC/Intermediate Case Module - Blend Repair A Cracked Rear Wall Window Of The Fan Frame Assembly, Repair-002 (VRS1122)

General

This repair must only be done when the instruction to do so is given in 72-00-32 Inspection/Check.

Material of component

PART IDENT

SYMBOL

MATERIAL

Fan frame assembly

Titanium alloy

Price and availability - none

The practices and processes referred to in the procedure by the TASK number are in the SPM.

NOTE

To identify the consumable materials, refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Hand held pneumatic grinderLOCALHand held pneumatic grinder
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent Penetrant Inspection Equipment
IAE 3J12840 Protective cover0AM53IAE 3J128401

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 05-021 WATERPROOF SILICON CARBIDE44197CoMat 05-021
CoMat 06-018 FLUORESCENT PENETRANT (POST-EMULSIFIED HIGH SENSITIVITY)37676CoMat 06-018
CoMat 06-032 DRY DEVELOPER37676CoMat 06-032
CoMat 01-031 ACETONE (CH3)2COLOCALCoMat 01-031
CoMat 02-001 ADHESIVE TAPE (MASKING)LOCALCoMat 02-001

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-00-32-350-051 Remove the Cracks from the Rear Wall Window of the Fan Frame Assembly

    1. Refer to Figure and Figure.

      2. CAUTION

        WHEELS, STONES AND ABRASIVE PAPERS USED TO DRESS, MAKE SMOOTH OR POLISH A TITANIUM COMPONENT MUST BE OF THE SILICON CARBIDE TYPE. ALUMINUM OXIDE TYPES MUST NOT BE USED.

        CAUTION

        IF MECHANICAL CUTTERS ARE USED, ONLY SMALL CUTS MUST BE MADE TO PREVENT TOO MUCH HEAT.

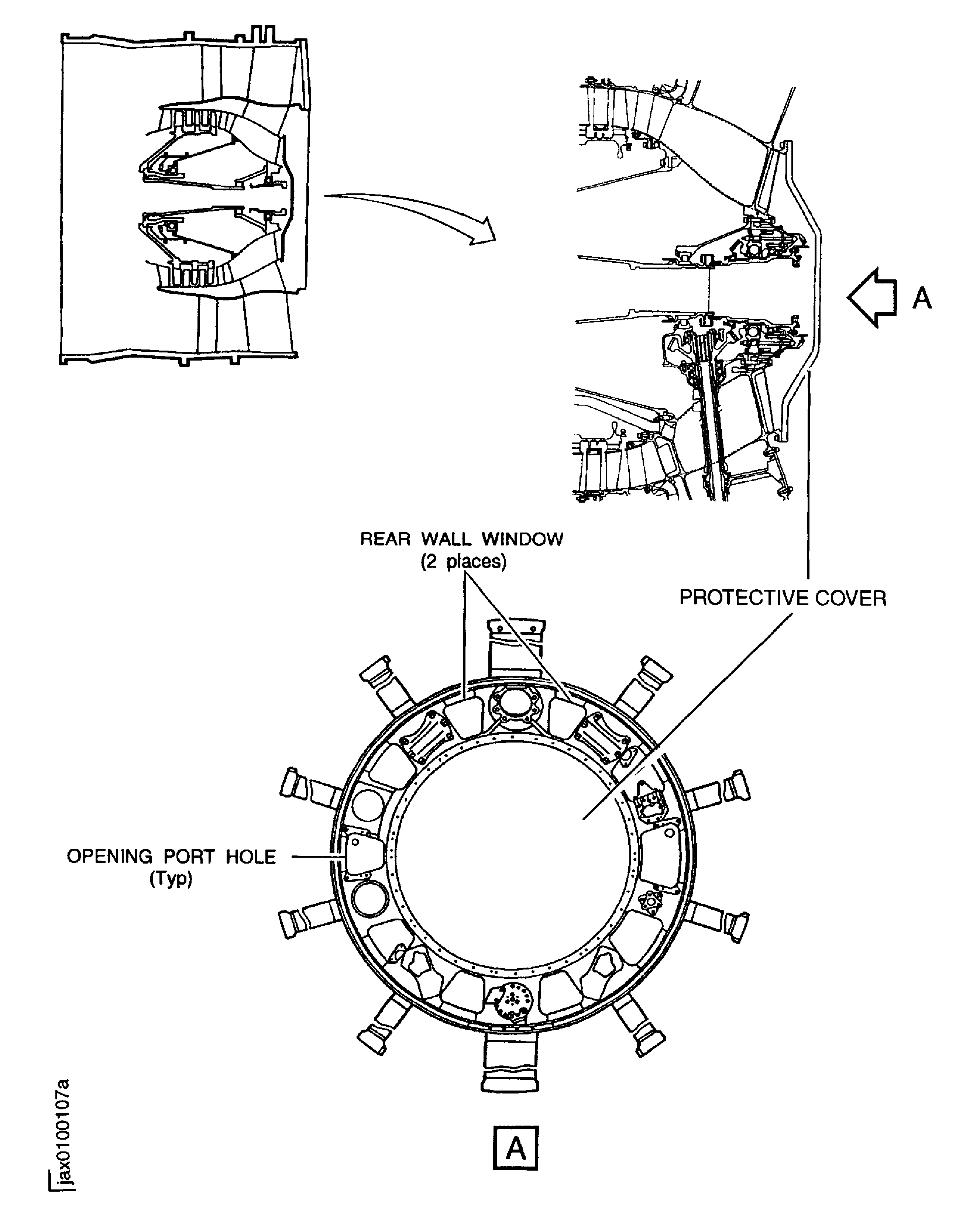

        Apply the masking tape to the opening port hole of the fan frame and install protective cover.

      3. Scallop to remove cracks. The maximum depth of the scalloping is 0.275 in. (7.0 mm).

      1. Use an abrasive stone and a hand held pneumatic grinder.

        Scalloping must be continued until the crack is removed.

        Remove material to a minimum depth of 0.079 in. (2.0 mm) below the surface of the crack.

    4. Blend the weld bead.

      6. After scalloping is completed, remove all the metal chips from the fan frame by vacuuming.

      1. Use vacuum cleaner.

    7. Remove the masking tape and masking fixture.

    2. SUBTASK 72-00-32-350-052 Remove Material Corner of the Rear Wall Window of the Fan Frame to Prevent Crack

    1. Refer to Figure and Figure.

      2. CAUTION

        WHEELS, STONES AND ABRASIVE PAPERS USED TO DRESS, MAKE SMOOTH OR POLISH A TITANIUM COMPONENT MUST BE OF THE SILICON CARBIDE TYPE. ALUMINUM OXIDE TYPES MUST NOT BE USED.

        CAUTION

        IF MECHANICAL CUTTERS ARE USED, ONLY SMALL CUTS MUST BE MADE TO PREVENT TOO MUCH HEAT.

        Apply the masking tape to all the opening port hole of the fan frame and install protective cover.

      3. Scribe blending line 0.079 in. (2.00 mm) from the current contour.

      1. Use a pair of dividers.

      4. Remove material corner of the rear wall window from the current contour scribe line.

      1. Use an abrasive stone and a hand held pneumatic grinder.

    5. Make smooth the repaired area.

      7. After preventive repair is completed, remove all the metal chips from the fan frame by vacuuming.

      1. Use a vacuum cleaner.

    8. Remove the masking tape and the protective cover.

    3. SUBTASK 72-00-32-220-124 Examine the Rear Wall Window of the Fan Frame Assembly

    1. Refer to Figure, Figure and Figure.

    2. Do a visual and dimensional inspection.

    4. SUBTASK 72-00-32-230-053 Examine the Fan Frame Assembly for Cracks

    1. Refer to Figure and Figure.

      2. Do a penetrant crack test of the repaired area.

    5. SUBTASK 72-00-32-350-053 Identify the Repair

    1. Refer to Figure.

      2. Write the repair number VRS1122 and engine cycles adjacent to the fan frame part number (top portion).

      1. Use vibrating marking pencil.

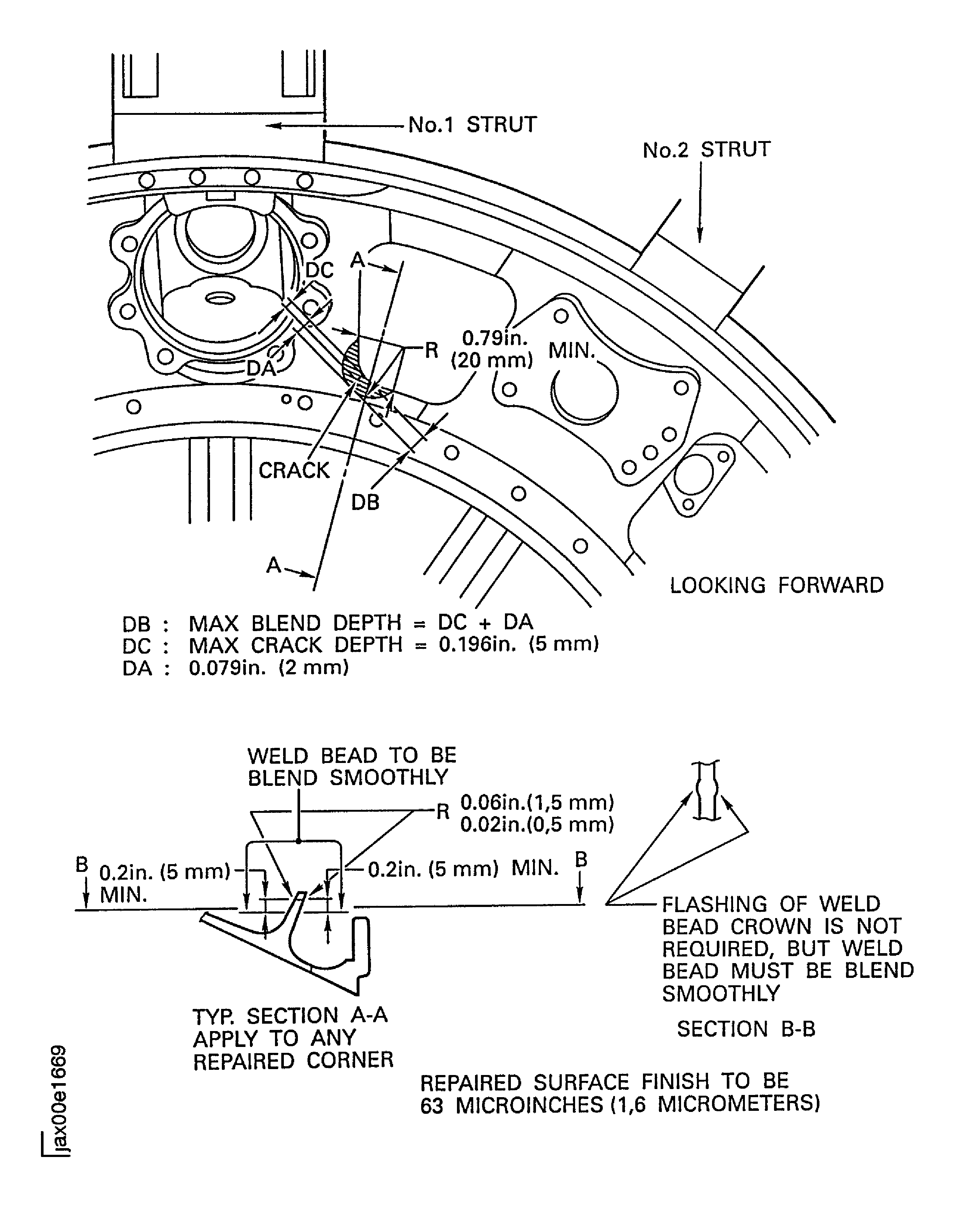

    6. Figure: Fan frame rear wall window - scalloping limits

    Fan frame rear wall window - scalloping limits

    Figure: Fan frame rear wall window - scalloping limits

    Fan frame rear wall window - scalloping limits

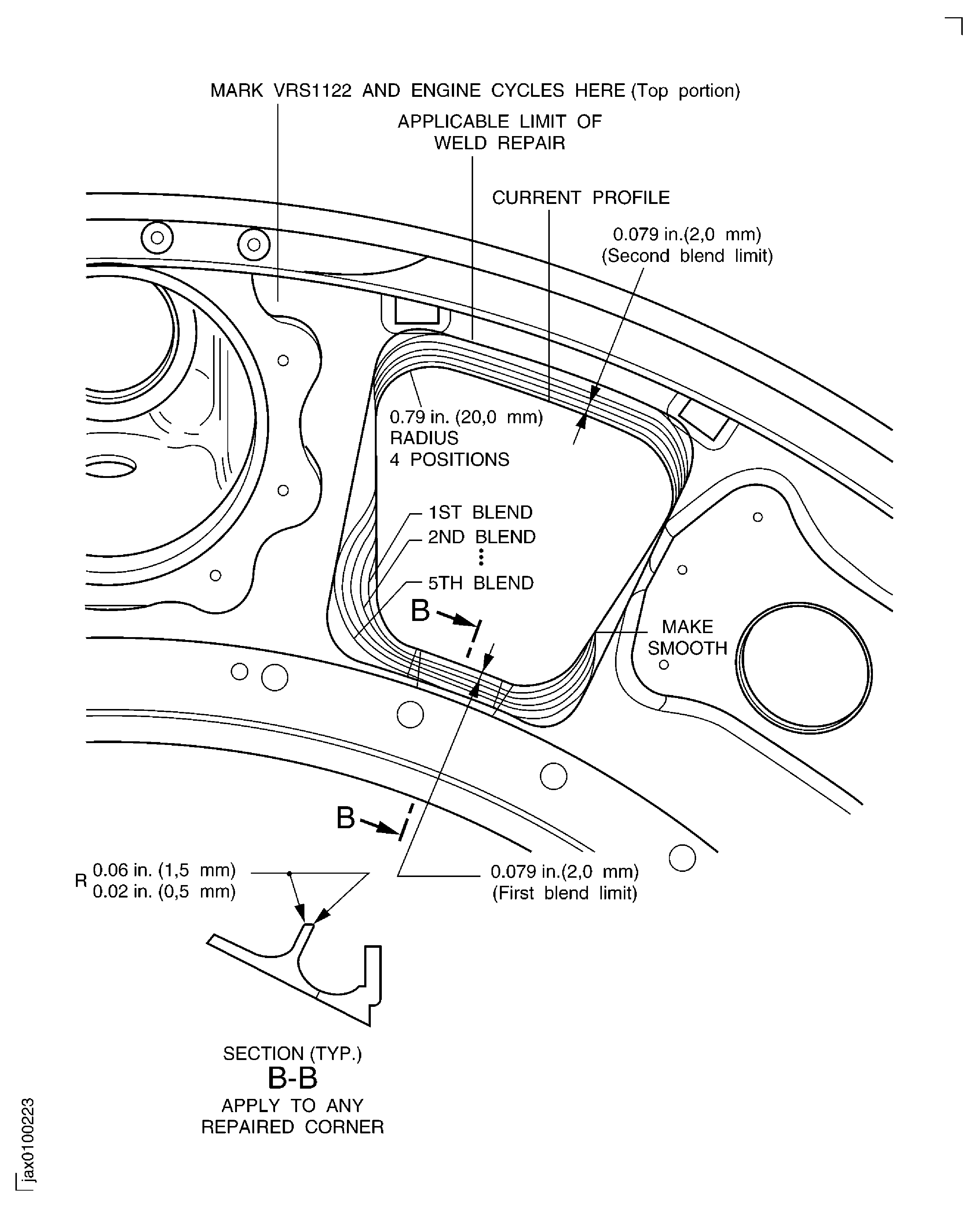

    Figure: Fan frame rear wall window - blend limits to prevent crack

    Fan frame rear wall window - blend limits to prevent crack
