TASK 72-00-32-300-004 LPC/Intermediate Case Module - Repair Of The LP Stub Shaft Curvic Teeth, Repair-004 (VRS1124)

DMC:V2500-A0-72-00-3205-01A-649A-B|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-00-32-300-004 LPC/Intermediate Case Module - Repair Of The LP Stub Shaft Curvic Teeth, Repair-004 (VRS1124)

Material of component

DESCRIPTION

SYMBOL

MATERIAL

Stub Shaft

Non corrosion resistant steel

General

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent Penetrant Inspection Equipment
Hand GrinderLOCALHand Grinder
Fine FileLOCALFine File
Abrasive StoneLOCALAbrasive Stone
Vibrating Marking PencilLOCALVibrating Marking Pencil

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 05-019 WATERPROOF SILICON CARBIDELOCALCoMat 05-019
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 05-021 WATERPROOF SILICON CARBIDE44197CoMat 05-021
CoMat 06-018 FLUORESCENT PENETRANT (POST-EMULSIFIED HIGH SENSITIVITY)37676CoMat 06-018

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-00-32-350-056 Remove the Damage from the Stub Shaft Assembly

    1. CAUTION

      APPLY APPROPRIATE MASKING TO PREVENT THE DEBRIS TO GO INTO ANY OPENING OF THE ENGINE.

      Refer to Figure and Figure.

      2. Dress the damaged area of the curvic teeth.

      1. Use a Hand Grinder 1 off and Abrasive Stone or Fine File 1 off.

        Refer to the SPM TASK 70-35-03-300-501.

      3. Polish the dressed area to get a surface finish equal to the adjacent area.

      1. Use a Hand Grinder 1 off and Abrasive Stone.

        The surface finish of the repaired area must be the same as the adjacent area.

    2. SUBTASK 72-00-32-350-057 Examine the Stub Shaft Assembly

      1. CAUTION

        DO NOT WASH THE PART BY USING COLD WATER TO PREVENT RUSTING.

        Fluorescent penetrant examine the repaired area.

    3. SUBTASK 72-00-32-220-129 Examine the Stub Shaft Assembly

    1. Refer to Figure and Figure.

      2. Visually and dimensionally examine the repaired area.

    4. SUBTASK 72-00-32-350-058 Make a Mark VRS1124 on the Stub Shaft Assembly

    1. Refer to Figure.

      2. Write VRS1124 adjacent to the part number of the stub shaft assembly.

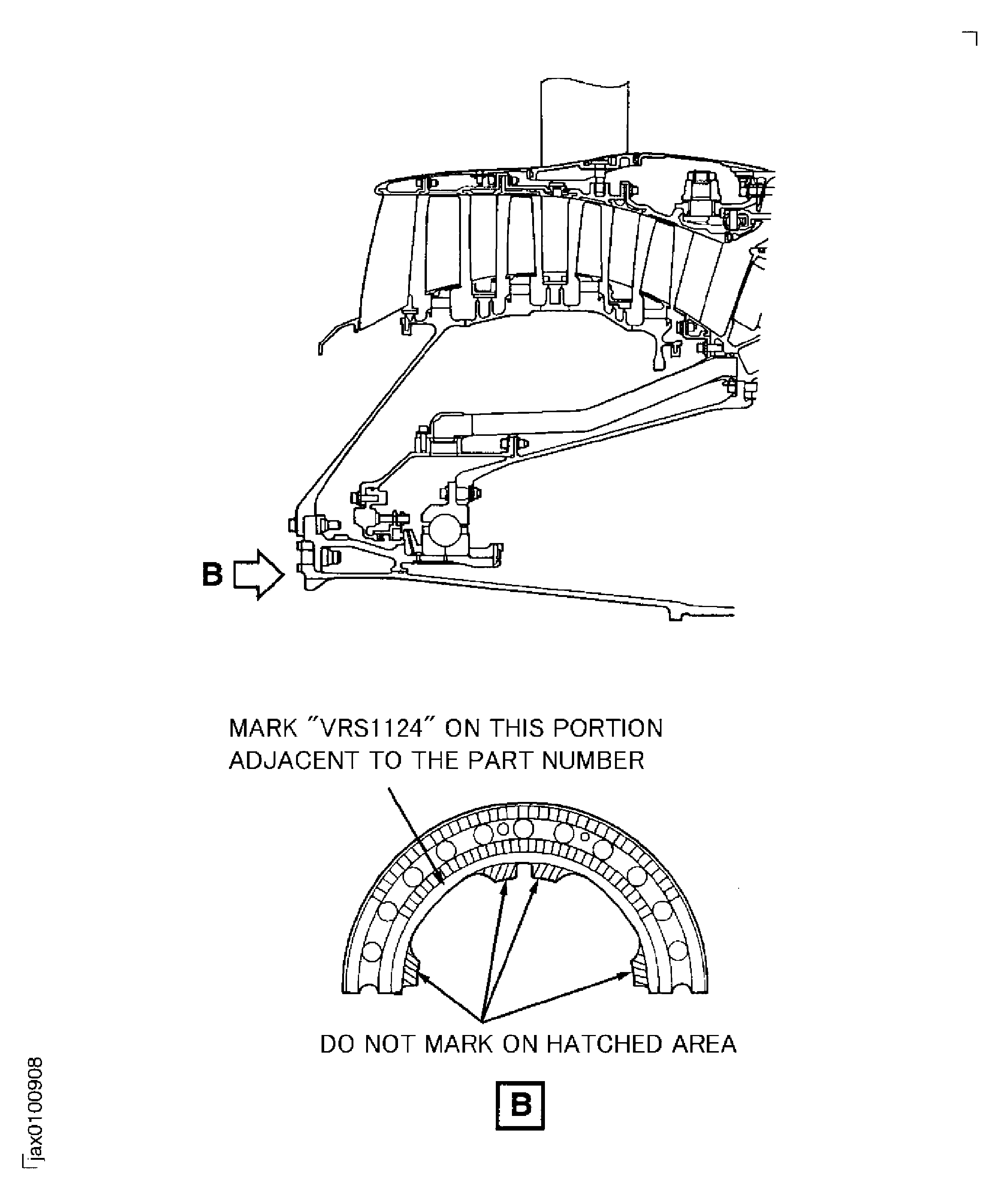

    5. Figure: Repair Details and Dimensions
